22
PARTS LIST

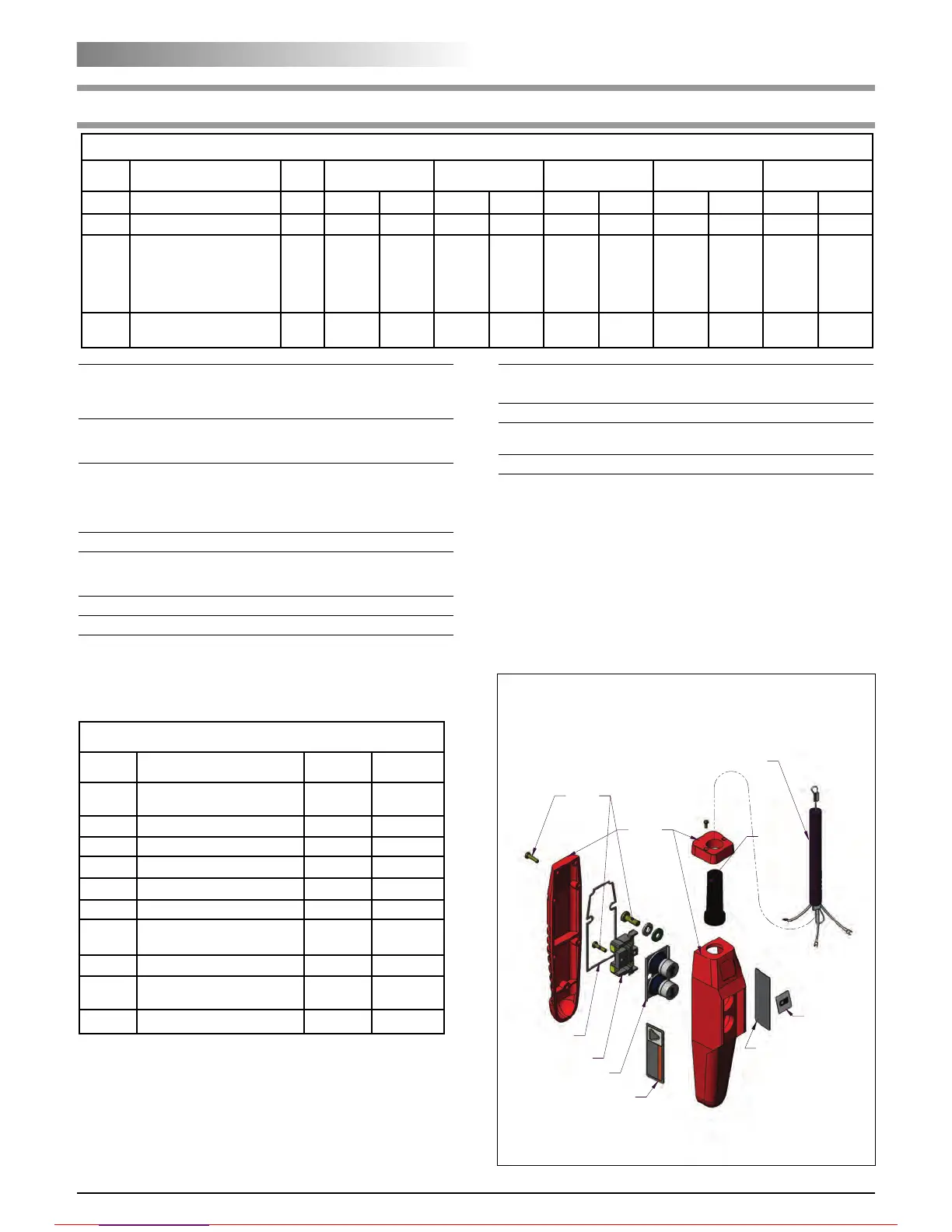

Figure 16. Control Station Exploded View
624-253
624-301
624-302
624-304
624-252
624-303
624-307
624-306
624-231
624-822
TOUCH-UP PAINTS
Valustar Electric Chain Hoists and Series 635 Low Headroom Trolleys
Name Color Quantity* Size Part No.
Hoist Orange 1 case 12-12 oz. Aerosol Cans 84190
Trolley Black 1 case 12-12 oz. Aerosol Cans 84189
*Touch-up paints are only available in case quantities.
NOTE: When painting Hoists or Trolleys, also order
warning labels, identification labels, etc. that may be
coated during painting.
PACKAGED LUBRICANTS
Used in the Valustar Electric Chain Hoists
(Refer to page 12 for Lubrication Instructions)
Usage Type Quantity Part No.
Hoist Gears Grease (Special) 1/2# Can 28605
1# Can 28616
4# Can 28617
Spline on end of Drive Shafts Oil-Graphite Mixture 1 Pint Can 40628
Load Chain Oil 1 Pint Can 28608
1 Gal. Can 28619
Lower Hook Thrust Bearing Grease: Heavy Cup Grease - obtain locally*
*These oils are not furnished by CM in packaged quantities.
When ordering lubricants, specify the type of lubricant, part number and
packaged quantity required.
MODELS AND VOLTAGES
Key No. Part Name
No.
Req’d
WB, WE WF, WH WJ WL WR
115-1-60 230/460 115-1-60 230/460 115-1-60 230/460 115-1-60 230/460 115-1-60 230/460
624-199 Brake Coil 1 51001 51003 51001 51003 --- 51002 51001 51002 51001 51002
624-210 Rotor Assembly
includes items 624-108
and 624-112
115-1-60
includes 624-212
1 24228 286004 24226 286000 --- --- --- --- --- ---
624-211 Stator (also order 624-113
for models WB, WE, WF, WH
1 24222 24221 24223 24220 --- 24225 367001 24225 367001 24225
CONTROL STATION
Key No. Part Name No. Req’d Part No.
624-232 Control Station (Includes
624-301 thru 624-822)
1 36900B
624-252 Warning Label (Electrical) 1 24842
624-253 Manufacturer Label 1 28470
624-301 Control Station Grommet 1 36989
624-302 Control Station Housing 1 36998B
624-303 Gasket 1 36486
624-304 Control Station Button
Assembly
1 36988
624-306 Control Station Parts Kit 1 36939
624-307 Contact Assembly (Includes
624-304)
1 36987
624-822 Warning Label 1 24845
