CMC NV
–
Air
master Q1
Installati
on Guide
–
V1.0
–
MANY10
32A.EN
Page
17
Section 5
:
Mounting
The Airmaster Q1
must be mounte
d in a front panel
, enclosure or ho
using, w
hich must have a
suitable pro
tection degree for the
electronics.
Components require
d (not deliver
ed w
ith the controller)
4 x serrated loc
k washer M4
4 x nut M4

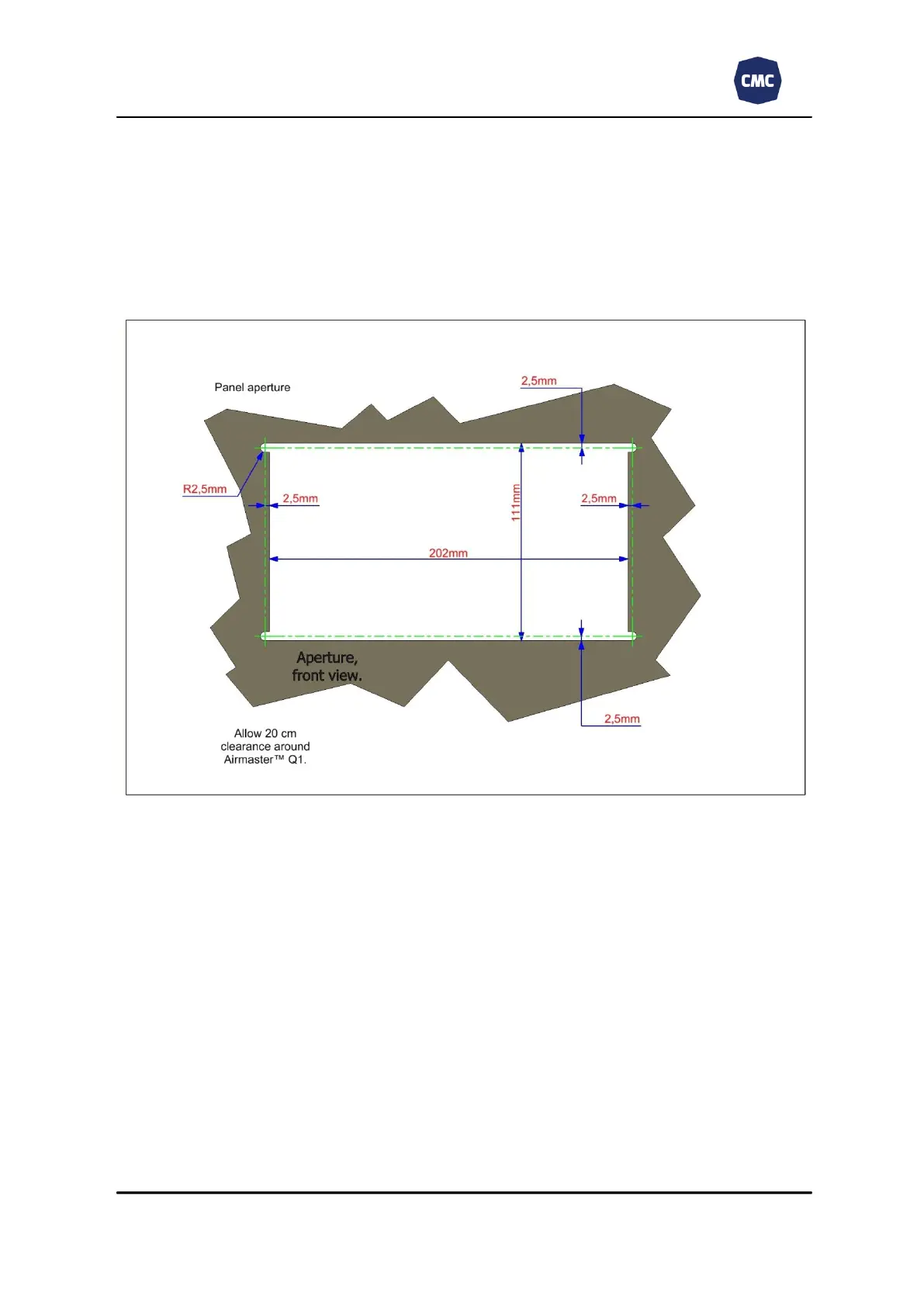

Dimensions o
f mounting hole:
17
19
