CMC NV – Airmaster Q1 Installation Guide – V1.0 – MANY1032A.EN
Page 8
Section 4: Connections and Protection
Remarks:
It remains the responsibility of the integrator of this controller (being a component in the total system) to assure that
the integration of the controller (in terms of wiring and use of other components) is done according to all applicable
regulations. In this context we remind that the controller is not a safety device and that care must be taken that other
components fulfill required safety functionalities.
The printing of text and symbols might differ slightly from the product you have.
Overview:
Section 4.1 Earth

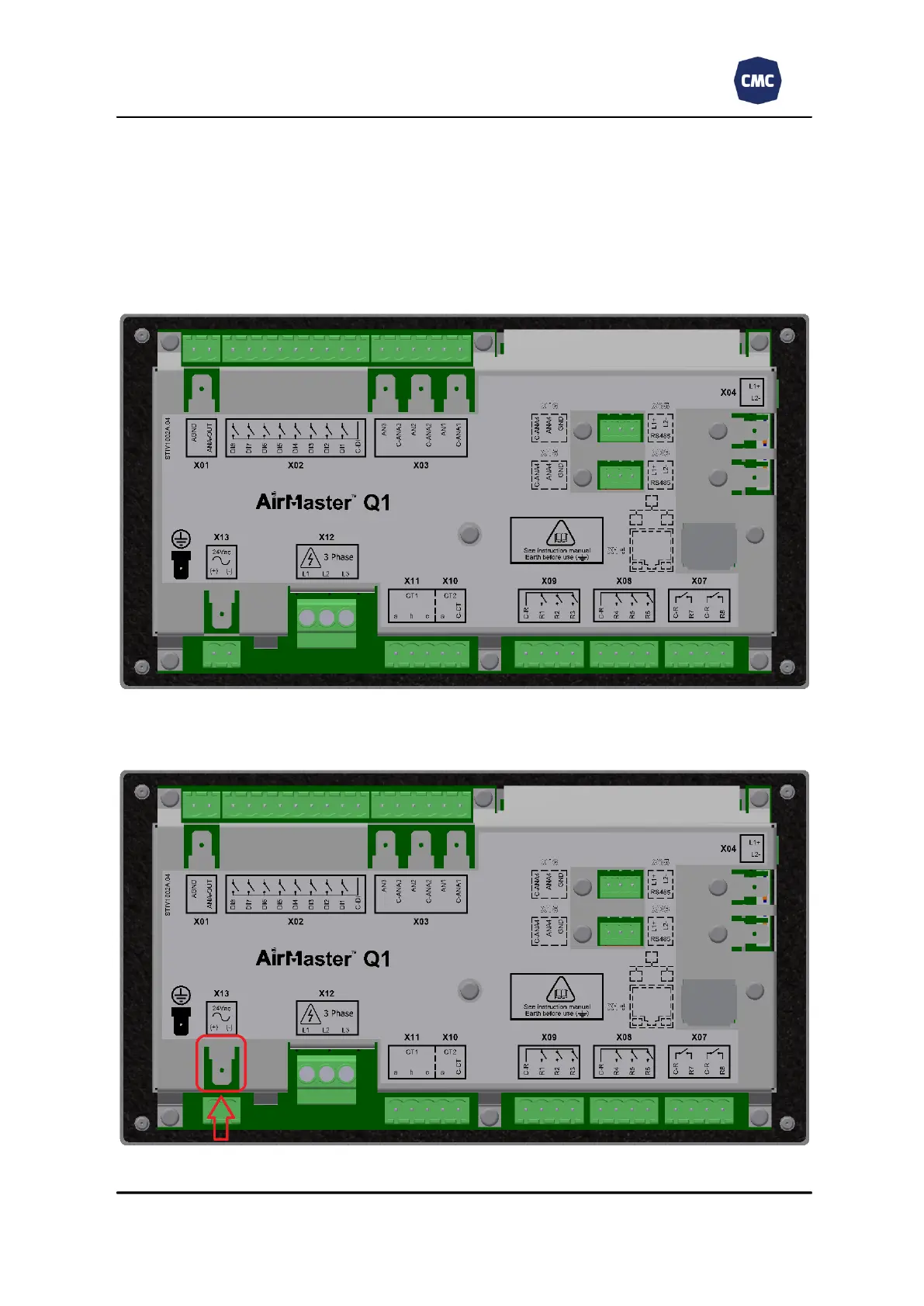

Earthing is done using a “Faston” connection on following connection:
