CME T34L User Manual

3 – Keypad Description and Functions
T34L™ Operator Manual
6

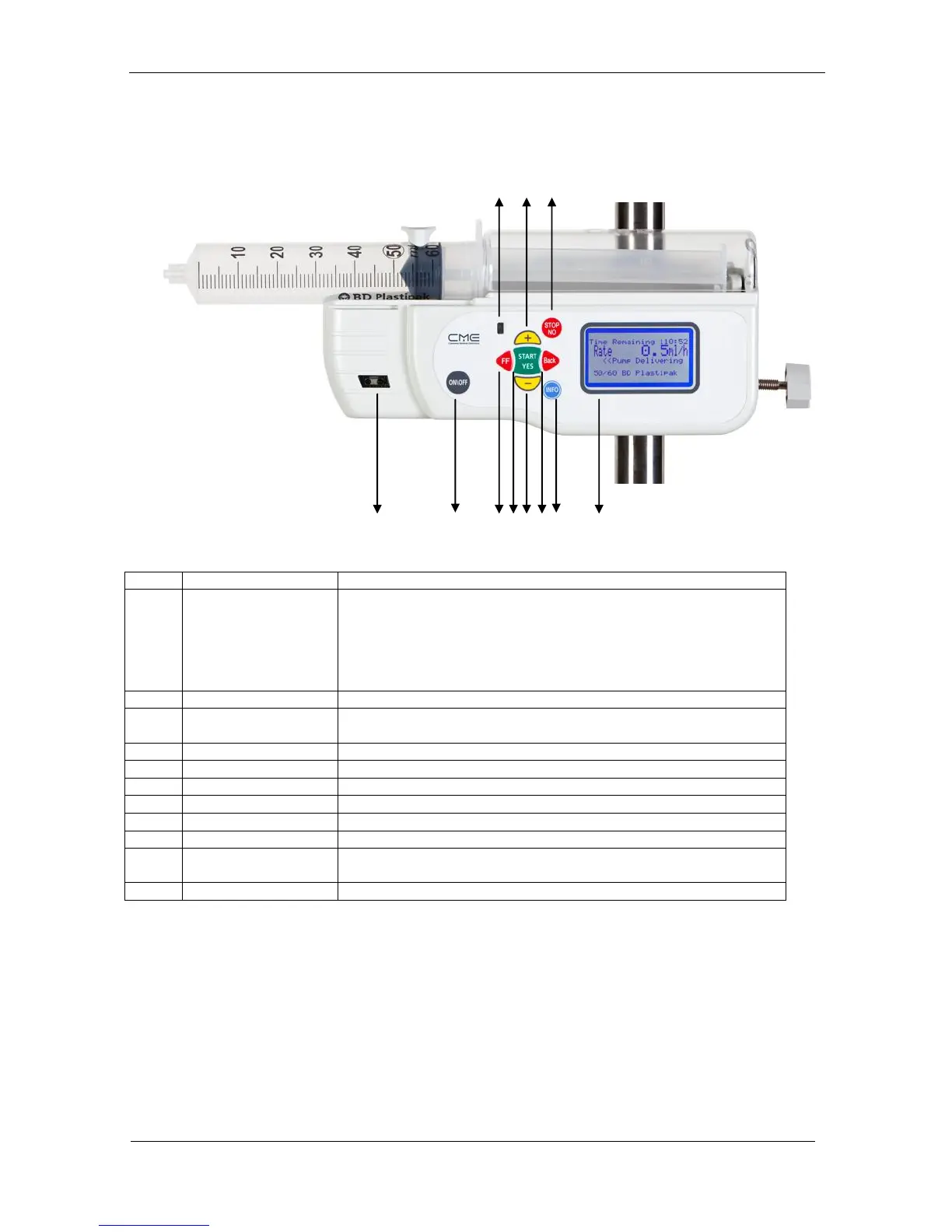

3 – Keypad Description and Functions
No.
Function
Description
1.
Operation LED
Green Indicator
Lights during system Self-Test
An intermittent green light indicates infusion delivery
Red Indicator
Indicates an alarm state with a continuous red light
Lights when the pump is in a stand-by mode during programming
2.
Plus key
Scrolls between options
3.
NO/STOP key
a. Takes user back a step
b. stops pump
4.
1 Infra Red sensor
5.
ON/OFF key
Switches the pump on and off
6.
Forward key
7.
YES/START key
Confirms choices
8.
Minus key
scrolls between options
9.
Backward key
10.
Info key
a. shows technical data and Battery status
b. Long press will Lock/Unlock Keypad
11.
Pump display
Backlight can be enabled when any key pressed
1
2
3
5
6
6
7
8
9
4
10
11

CME T34L Specifications

General

Brand	CME
Model	T34L
Category	Water Pump
Language	English
