Appendix 1
EF-45N LCD Control Screens
and On-Board Demo Application

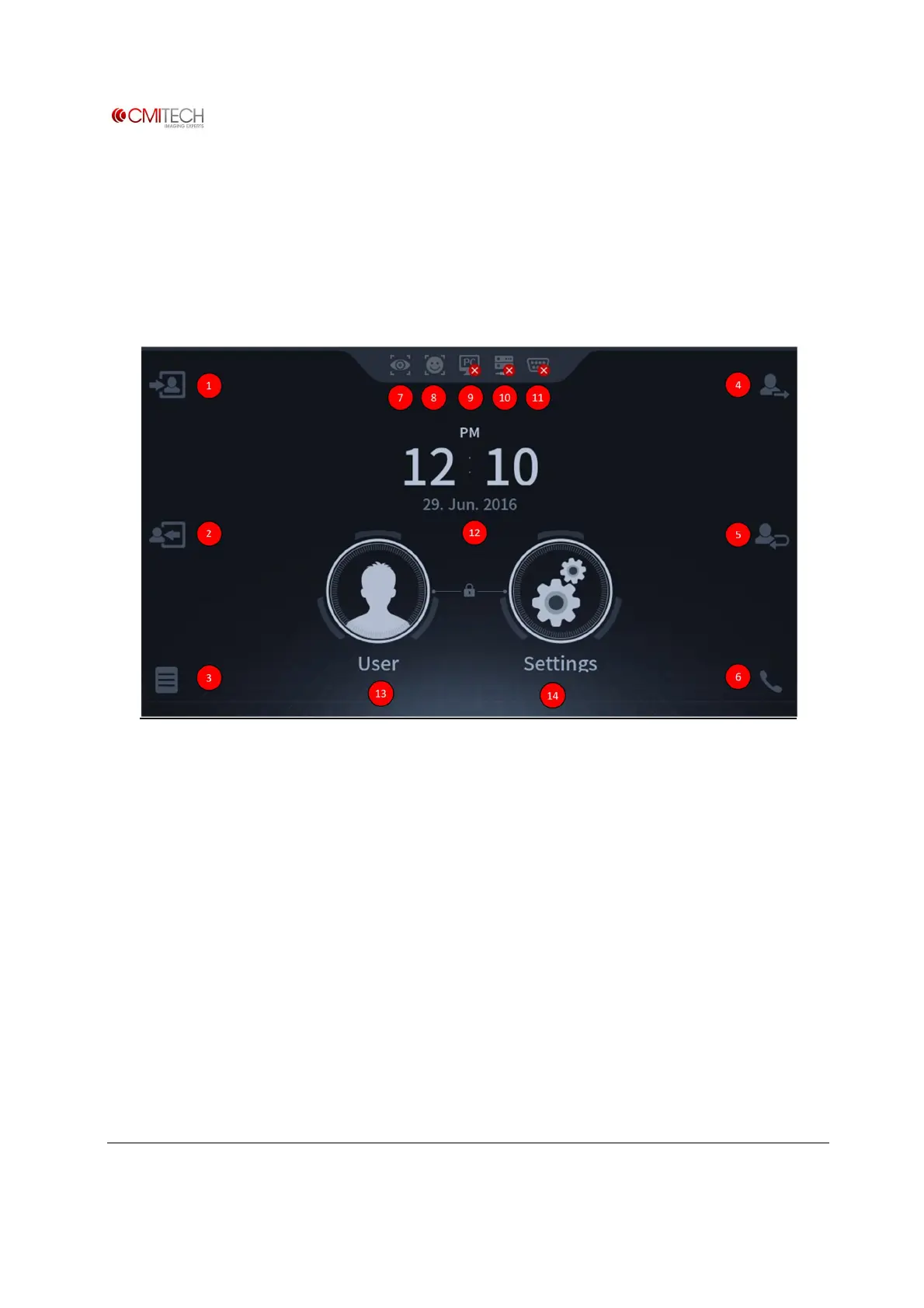

Main Launcher Page
① Check Attendance (F1 Key)
② Leave Work (F2 Key)
③ Supplement T&A (F3 Key)
④ Go Out (F4 Key)
⑤ Return Button (same as F5 Key)
⑥ Interphone Call Button (same as F6 Key)
⑦ Notice Icon of Iris mode is operating
⑧Notice Icon of Face mode is operating
⑨Notice Icon of CMID manager is connected
⑩Notice Icon of IP network is connected
⑪Notice Icon of Serial Communication is
connected
⑫Clock display
⑬User Button for registration, search,
modification and deletion
⑭Settings Button for system configuration
To Next Page
