2A. LOCATION
2A-1. Environment
Locate the unit in a clean, protected area, either indoors or outdoors (preferably out of direct sunlight). If possible, locate the
unit out of reach of sprinklers or drainage spouts.
2A-2. Clearance
Allow sucient access for maintenance (2 ft clearance above and 1 ft on either side of the unit) and all plumbing and electrical
hookups. Front clearance for door swing is approximately 14 inches.
24-1/4in
616mm
19in
481mm
20-3/8in
516.5mm
12-1/2in | 317mm
15-7/16in | 391mm
14-7/8in | 377mm
13-7/8in | 270mm
10-5/8in | 270mm
13.-3/8in | 340mm
3in
76mm

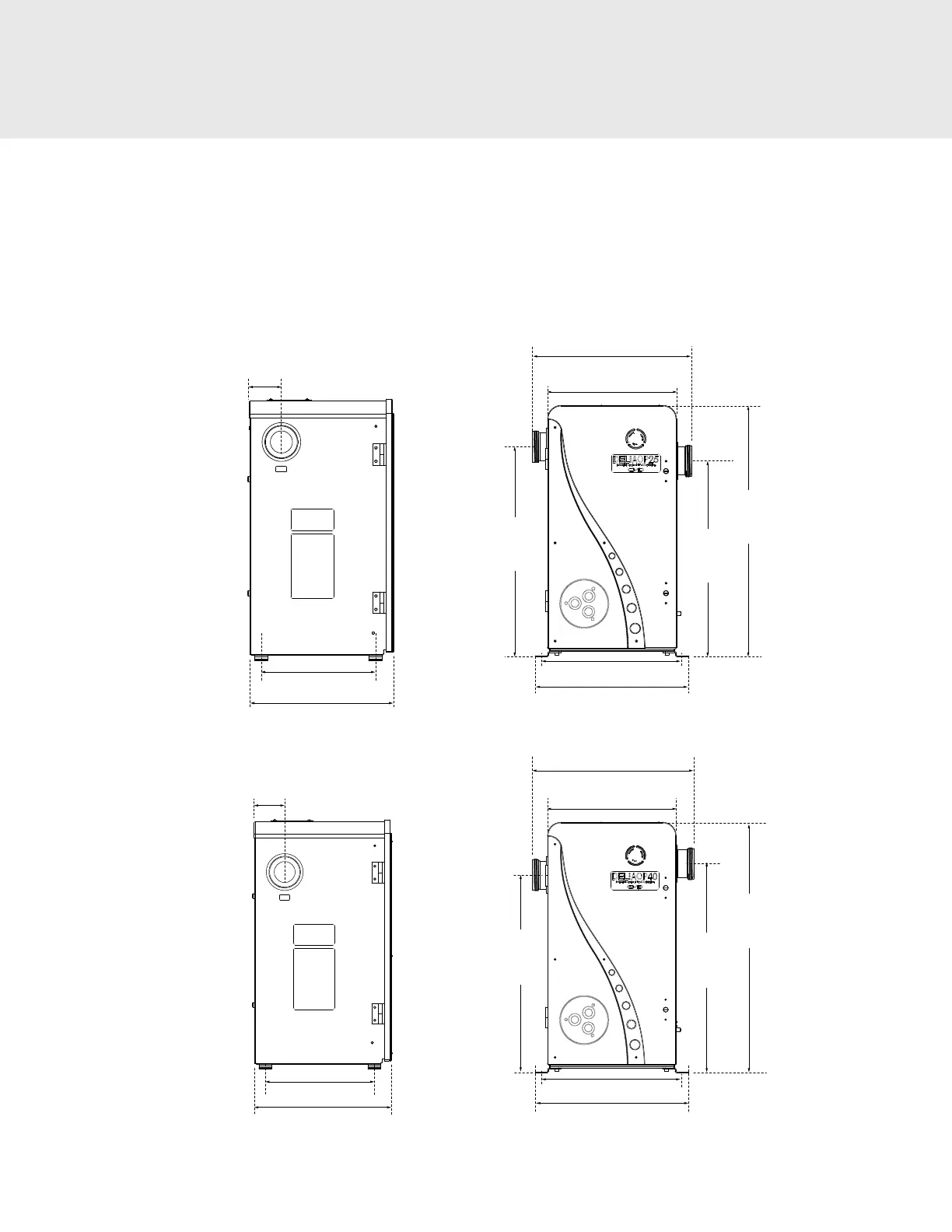

Figure 2: AOP 25 Installation Related Dimensions
3in
76mm
10-5/8in | 270mm
13-3/8in | 340mm
13-7/8in | 270mm
14-7/8in | 377mm
19-1/4in
488mm
20-5/16in
516mm
15-11/16in | 398mm
24-1/4in
616mm
12-1/2in | 317mm
Figure 3: AOP 40 Installation Related Dimensions
