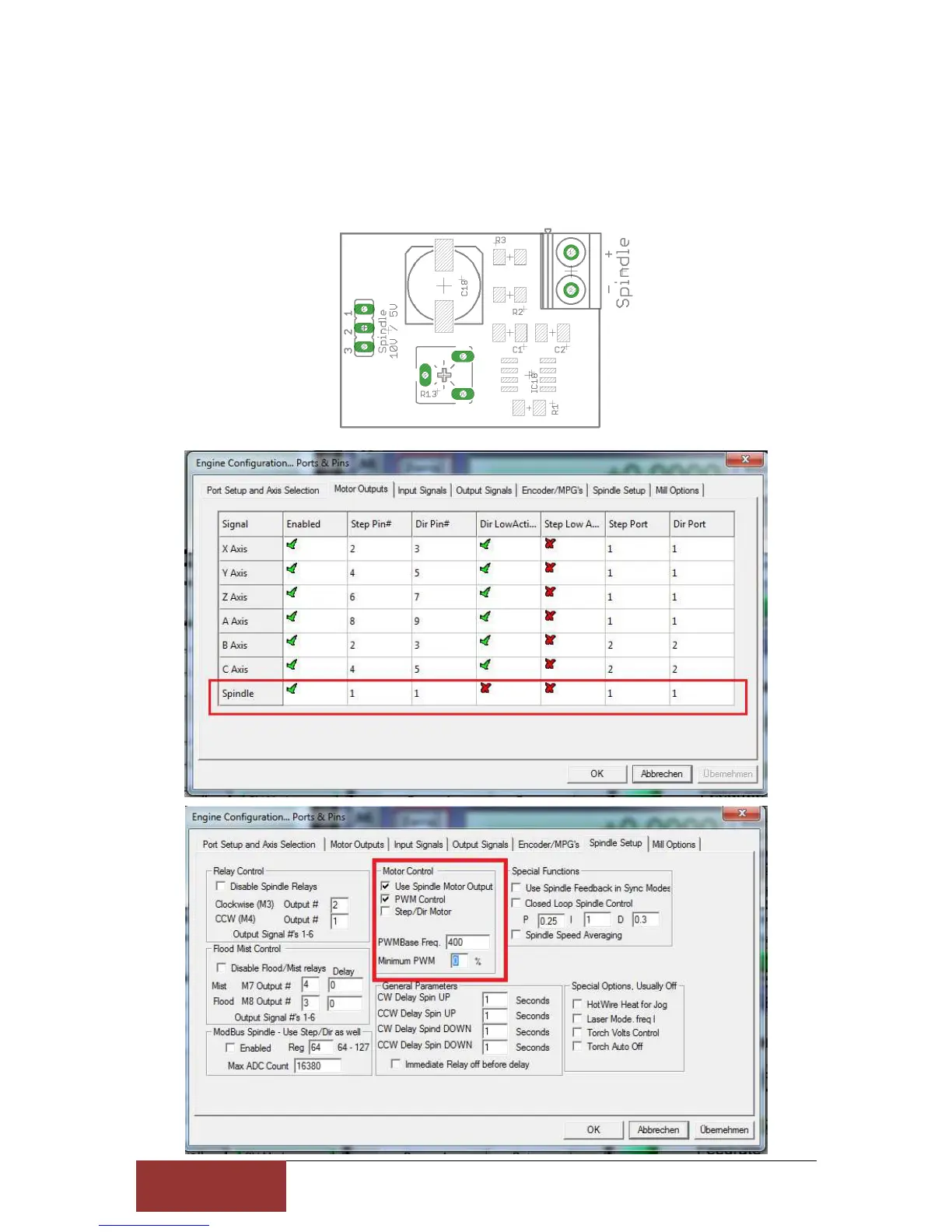

Set spindle

Port 1 / Pin 1 is the analog output for the spindle speed

A VFD frequency inverter for the analogue signal can be connected to the spindle output. Via

jumper 1-2 = 5V or bridge 2-3 = 10V output signal at bridge

The Potentiometer R13 should not be adjusted he is set so that at 5V PWM output from the

PC comes a 10V analog signal
