Description of the breakout board

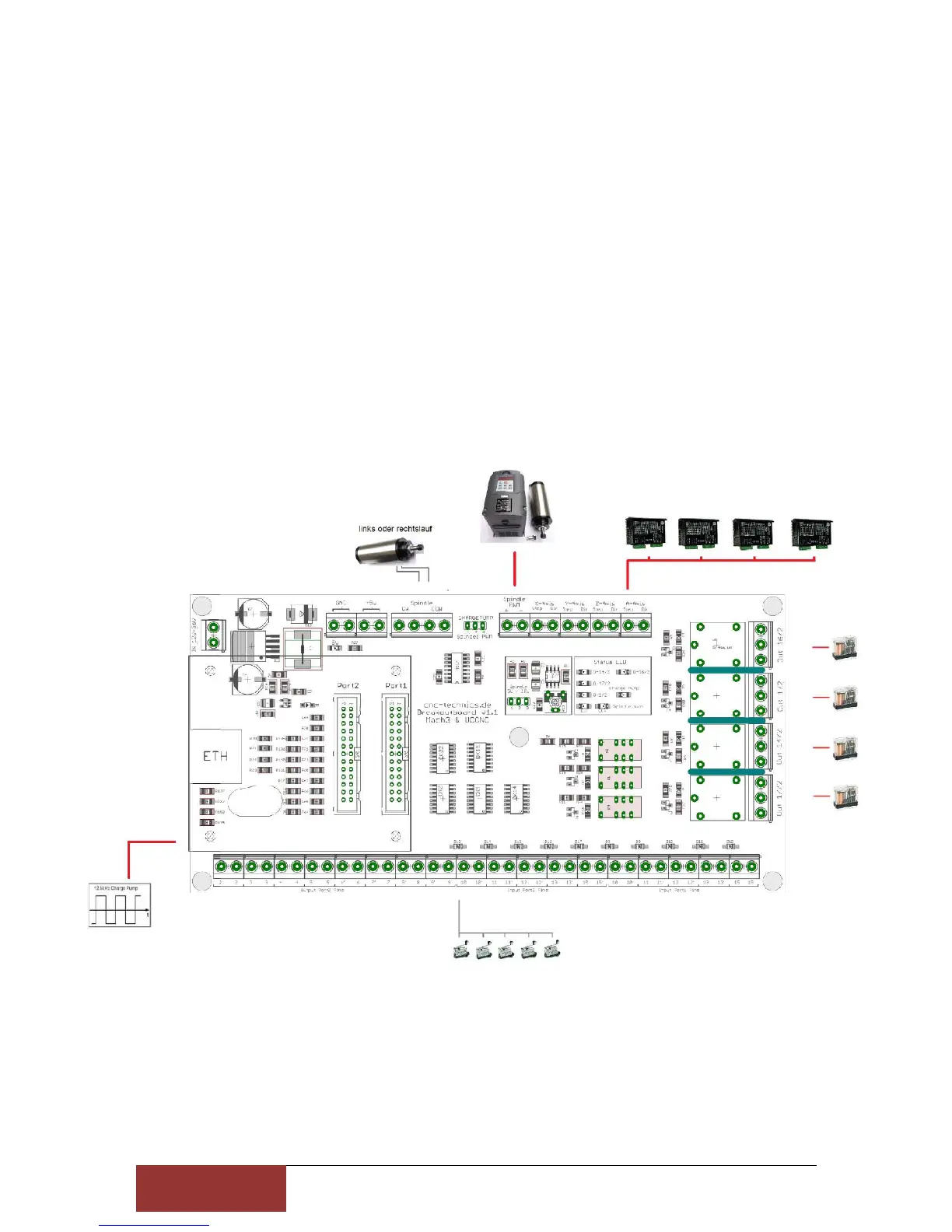

The breakout board enables the operation of up to 4 stepper motor or servo
output stages on the UC400Eth.
For this the control Software Mach3 / UCCNC (not included) is used. The board
has various inputs and outputs that can be individually set as many different
configurations are possible. Depending on the selected configuration,
additional functions are available, such as control of a frequency converter via
an analog signal of 0-10V or 0-5V, reference switch, spindle direction relay, up
to 3 relay outputs and one Charge Pump.
All signals are protected by Optocouplers. All machine-side signals are rated
from 5V to 30V, ensuring robustness and compatibility even with industrial
sensors (PNP SENSORS).
