Outputs
Like the input port, each output port is also provided with a pin number and an associated *
(output).
example
X32-1 is Number 6 = Port2/Pin6 and
X32-2 is Number 6* = Port2/Pin6

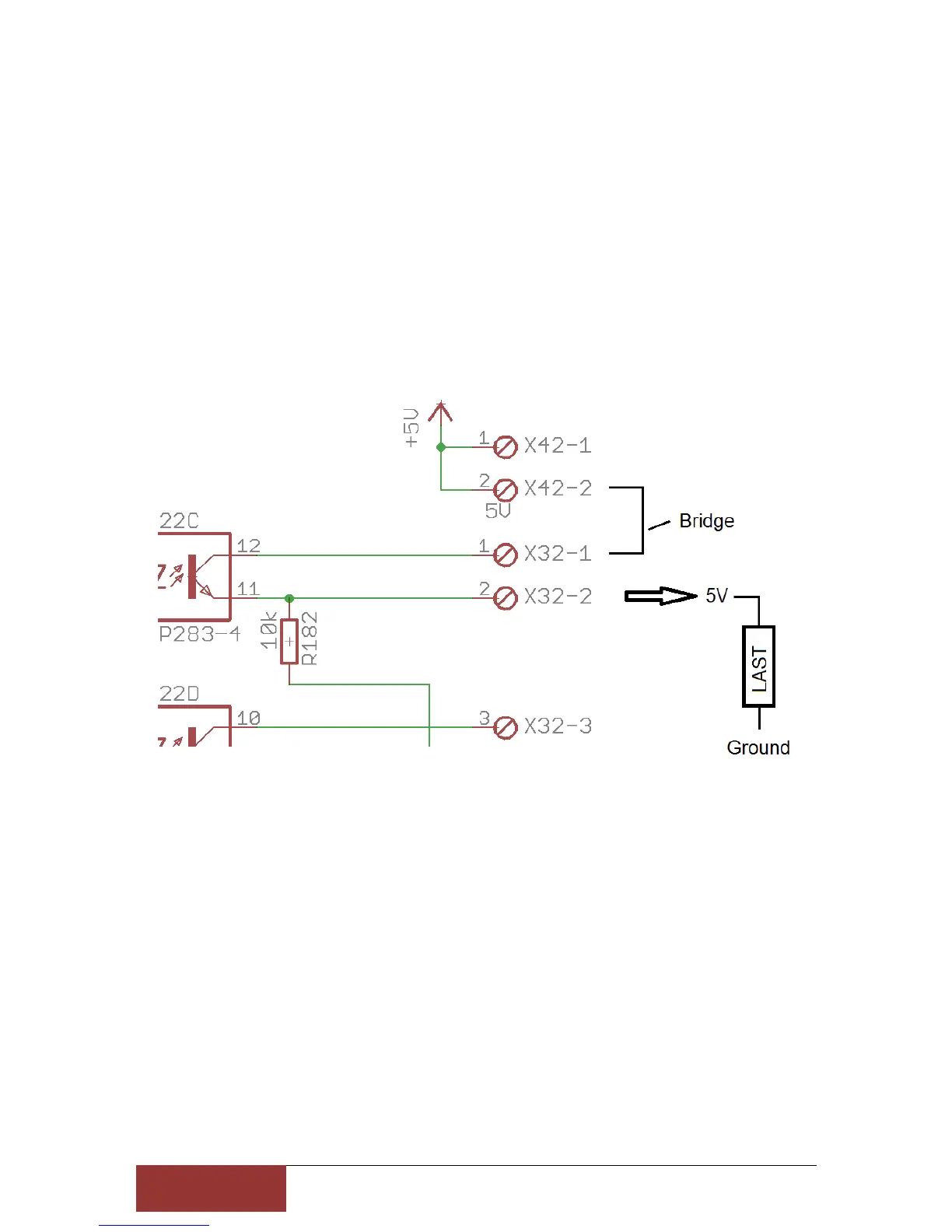

For 5V sensors, relays or similar loads you can put a bridge of 5V on the respective pin
number, so you can use a power supply.
For switching max 50mA per output are available. If you need higher currents for switching
you can connect inexpensive relay modules.
You can connect to any pin without * a direct voltage, max to 30V.
