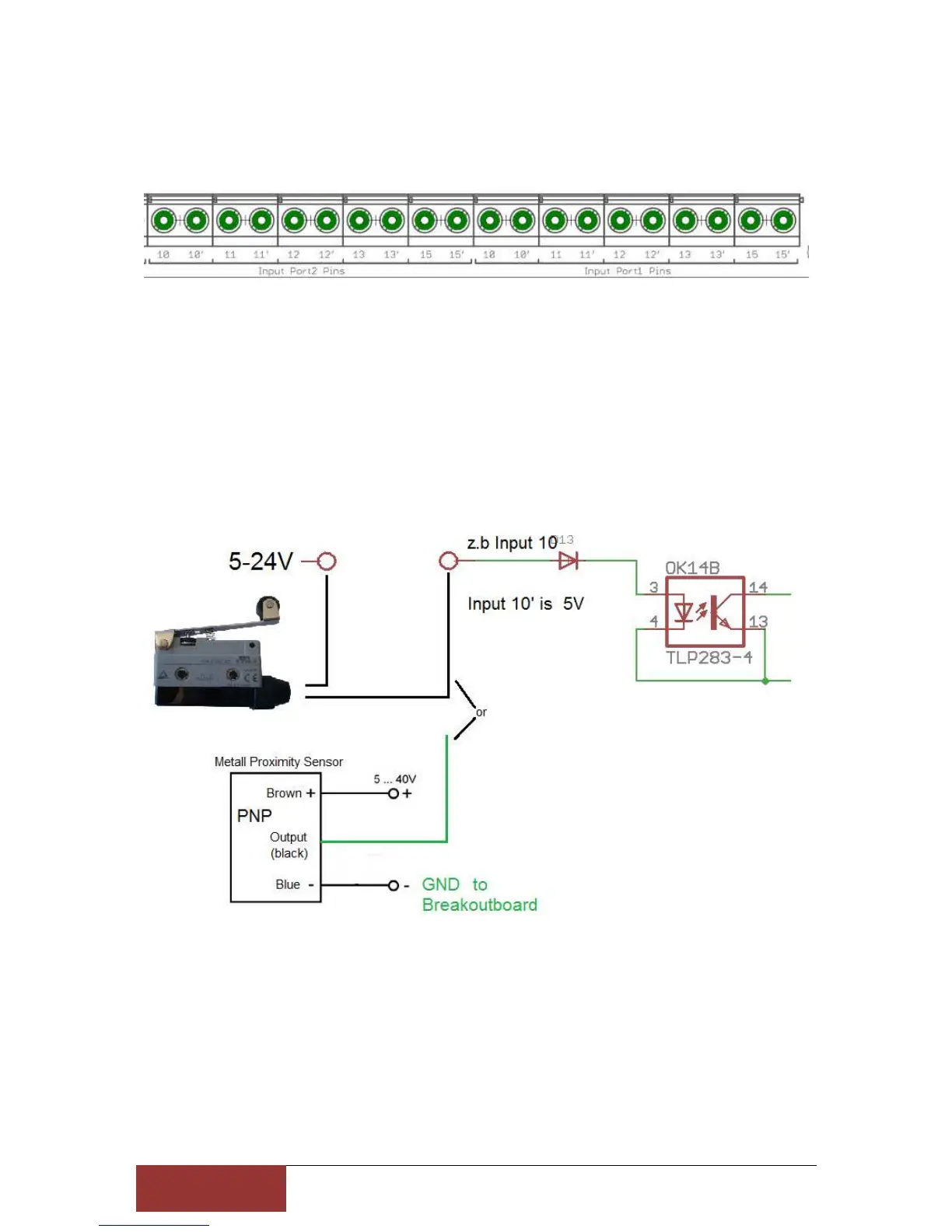

Inputs
Each input port is provided with its Pin number
in Mach3/UCCNC at Ports & Pins has to put a hook in Active Low.
When the limit switch is actuated, it internally switches to ground and Mach3 detects a
response at the input. PNP sensors switch with the switching voltage so they are also direct
connected.

CNC UC400ETH Specifications

General

Brand	CNC
Model	UC400ETH
Category	Control Unit
Language	English
