CO/Tech JFB10-UK - Using the Mitre Gauge; Tilting the Table for Bevel Cuts

10
ENGLISH
17

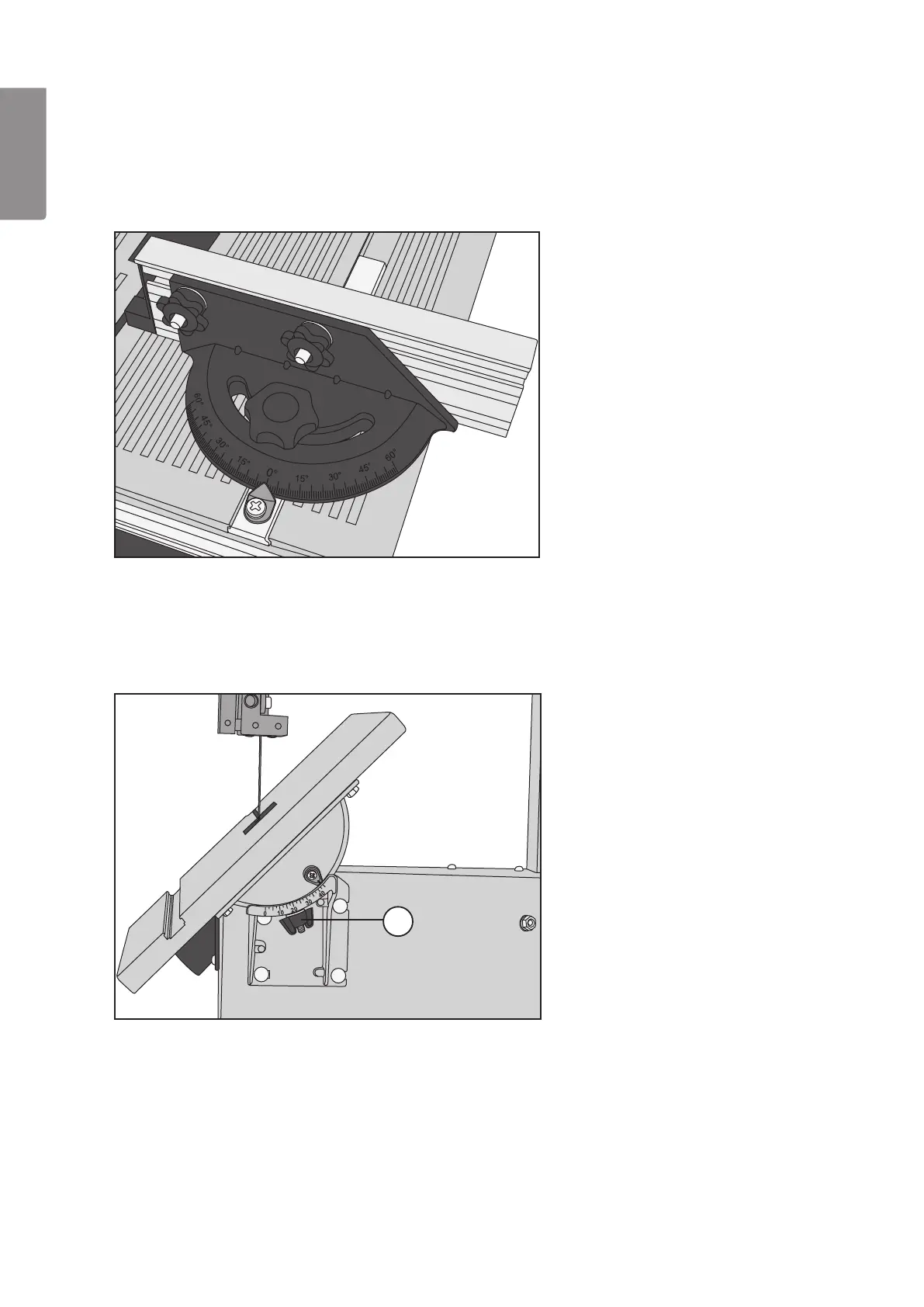

Using the mitre gauge
1. Make apractice cut with thegauge set to 0° and then check thecut using atry square.
2. If adjustment is necessary, loosen thescrew holding thepointer and move thepointer accordingly.
3. Set thedesired angle on themitre gauge and make thecut whilst holding theworkpiece firmly against
themitre gauge.
Tilting the table making bevel cuts
• Undo thewing nut (17), tilt thetable to thedesired angle and tighten thewing nut.
