CO/Tech JFB10-UK User Manual

12
ENGLISH

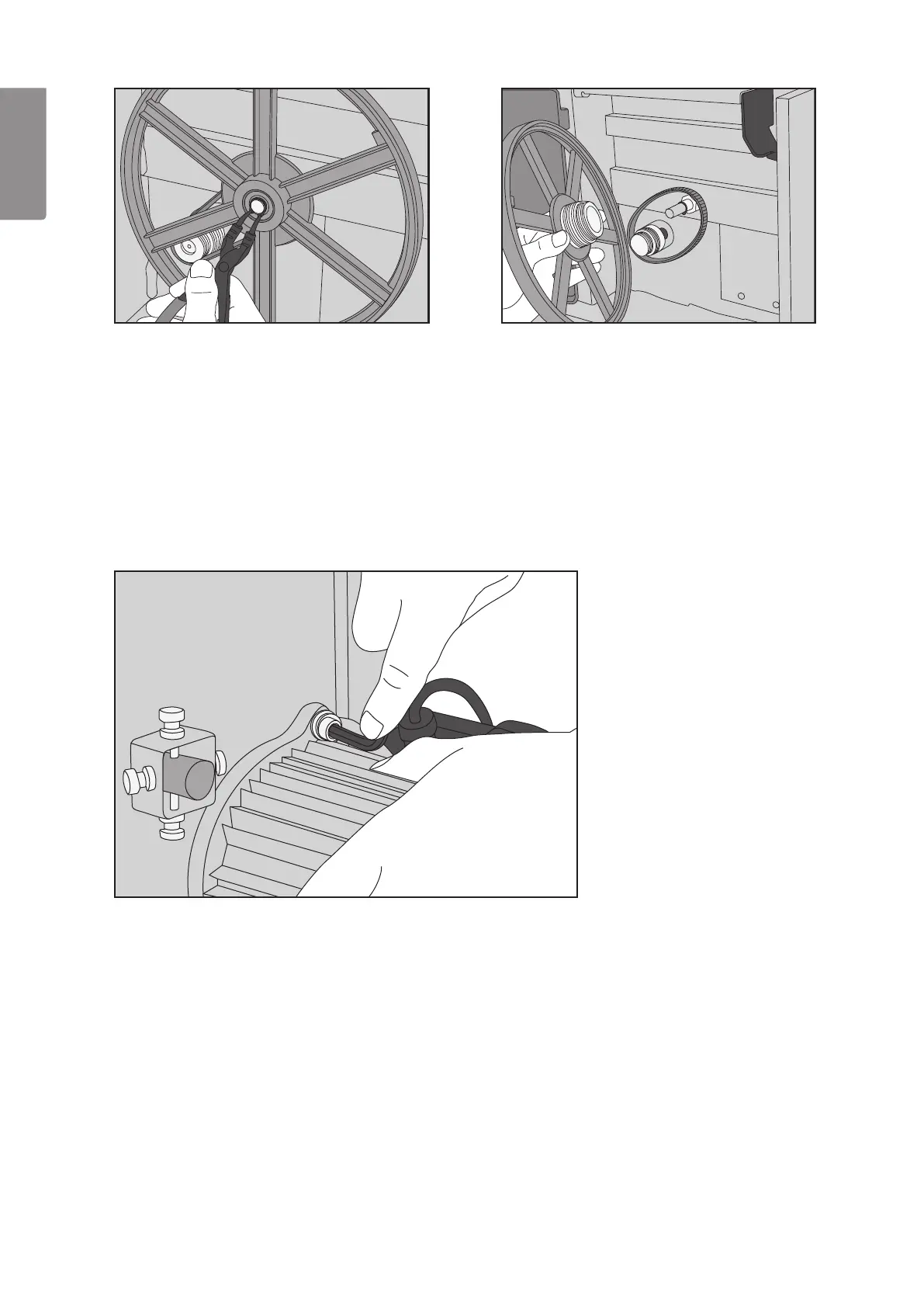

5. To replace thedrive belt thelower blade pulley
wheel must be removed. Find thecirclip that
holds theblade pulley wheel onto theshaft and
remove it using apair of circlip pliers.
6. Pull theblade pulley wheel off theshaft.
7. Place thenew belt over themotor’s drive pulley wheel and round theshaft which theblade pulley wheel is
mounted on. Replace theblade pulley wheel and refit thecirclip. Make sure that thedrive belt is fully located
in thegrooves of either theinner or outer wheels.
8. Tension thebelt by pivoting themotor back into place and secure it with thetwo bolts.
Note!
• Always unplug theband saw before making any adjustments or repairs and whenever
thesaw is not to beused.
• Do not expose themachine to moisture.
• Keep thetable clean and free of wood sap.
• Keep theband saw clean, use abrush and dust extractor to remove dust and chips. Pay particular
attention to themotor’s air intakes and any openings where thedust can build up and prevent theblade
from running freely.
