16
ENGLISH

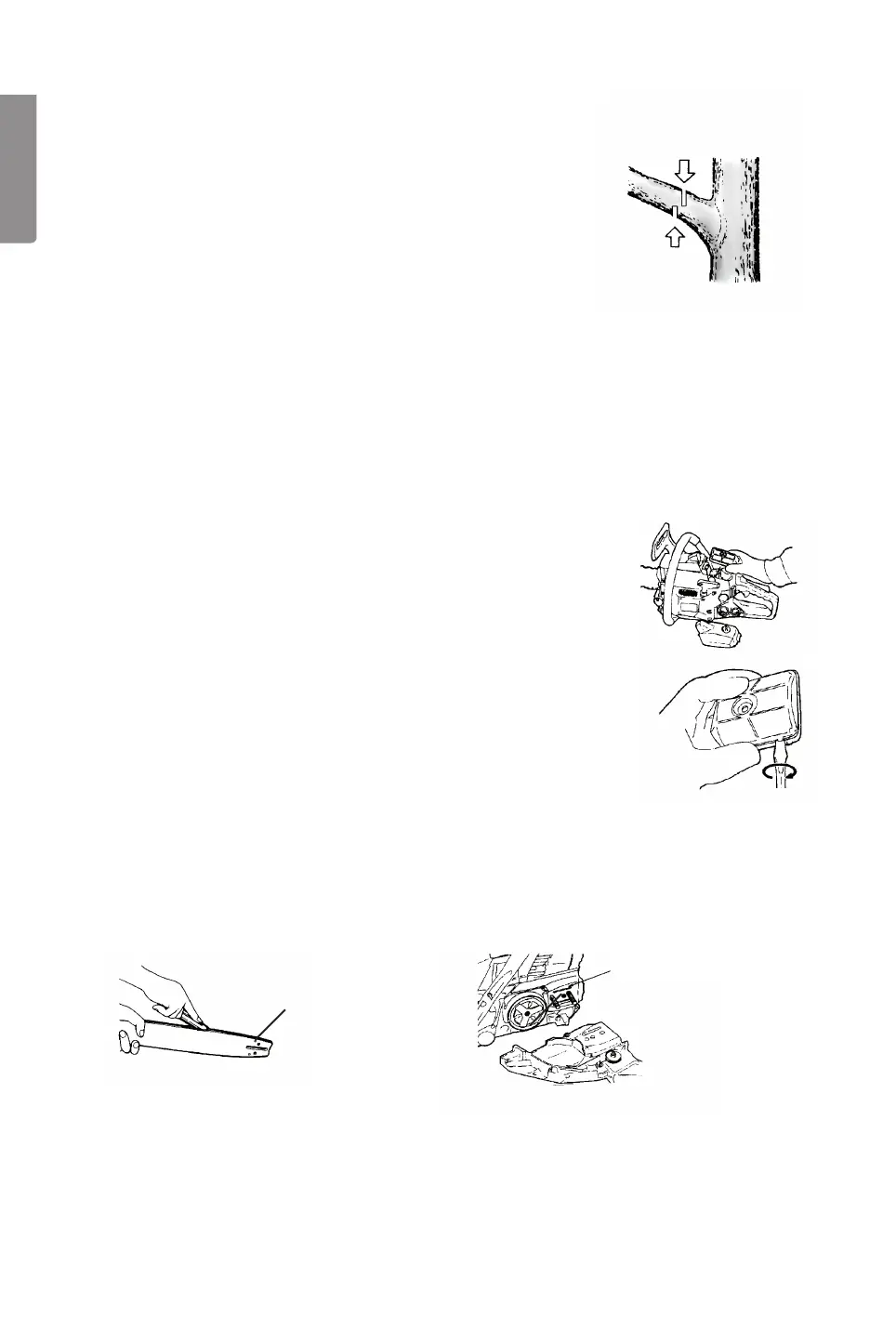

Pruning small trees
Cut from underneath and finish from above.
Warning!
• Standwithgoodbalance.Neverstandonaladderwhencutting.
• Donotstretchsothatyoulooseyourbalance.
• Neverworkaboveshoulderheight
• ALWAYSholdthechainsawwithbothhandswhencutting.
7. Maintenance
Warning! Make sure that the chain saw is shut off and has cooled before service, cleaning
or checking. Pull away the ignition cable from the spark plug to prevent the engine from an
unexpected start.
Maintenance after every use
1. Air filter
First use a toothbrush or other type of brush to take away dirt from
the outside of the air filter, carburettor and other parts under the air
filter cover before taking away the air filter. Then take away the air filter.
Wash the air filter with petrol or water with dish detergent. Use a flat
screwdriver to divide the air filter (see fig. 28) and blow clean with com-
pressed air from the inside.
Put both parts of the air filter back until it clicks. Let it dry completely
and then reassemble it.
Note! Make sure that the rubber sealing between the air filter and the
carburettor are assembled correctly so that it fits into the track under
the air filter.
2. Check the supply of chain oil to the guide bar
Take away the guide bar and saw chain and check that the hole for
the chain oil is open.
3.Guide bar
Oil port
Oil port
Figure 29 Figure 30
Clean the guide bar’s sprocket and oil port when the guide bar is unassembled.
File the edges of the bar with a flat file if they have become sharp.
2
1
Figure 26
Figure 27
Figure 28
