COATS 6401 Truck Wheel Balancer • 9
Direct Drive
Balancing Procedures
Mount Wheel
Choose the correct mounting method:
1. Back Cone Mounting: Use only small or medium cones
(See page 13).
2. Front Cone Mounting: Any cone can be used (See page 13).
3. Combi Adapter: Where center cone mounting cannot be
used due to an oversized center hole of rim (See pages 14).
Adapts to: 275 mm (10.827") Bolt circle, 8 hole rims.
11 1/4" Bolt circle, 10 hole rims.
335 mm (13.188") Bolt circle, 10 hole rims.
4. Dayton Adapters 20" & 22.5", 22" & 24.5": For use with truck
spoke wheels only (See page 15).

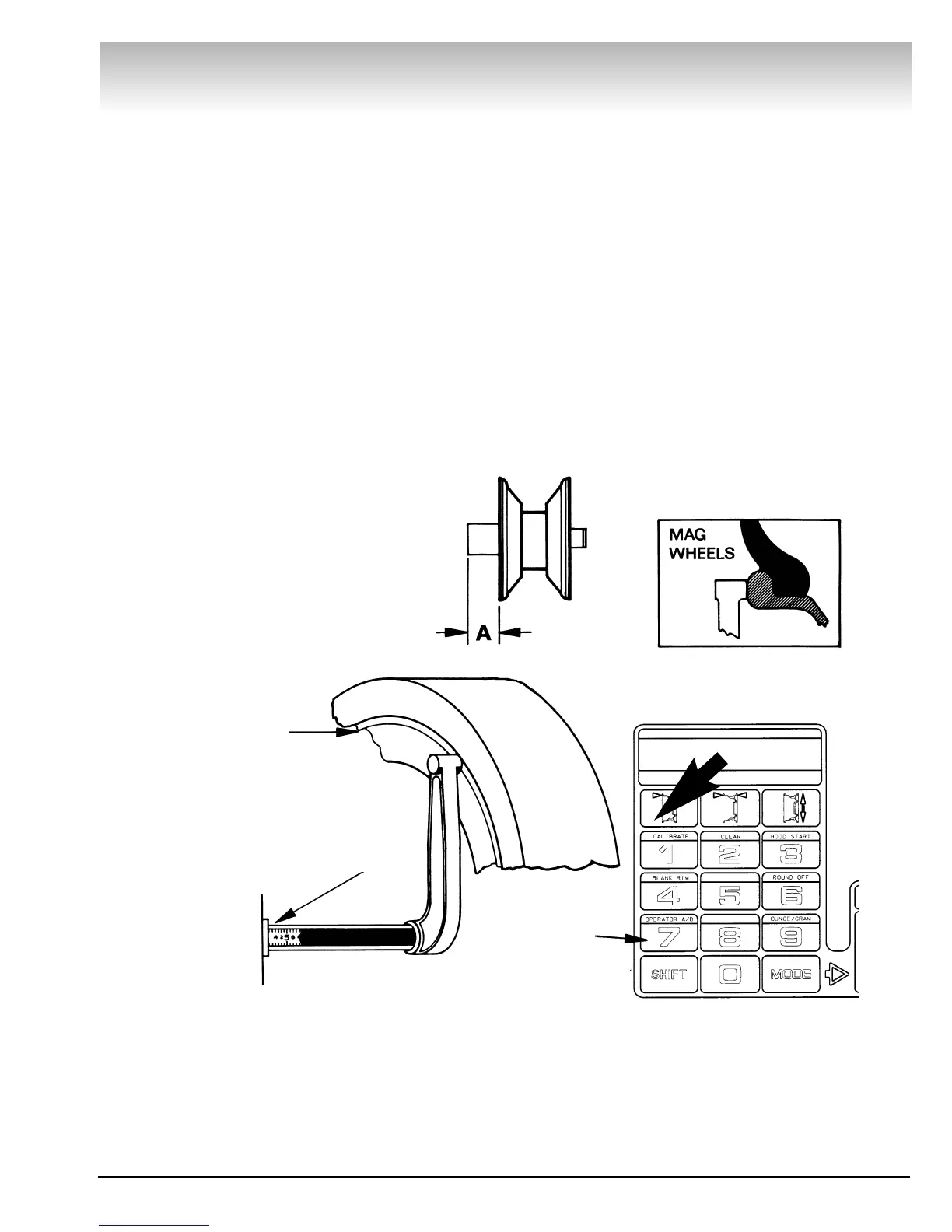

Offset
1. Press the offset key.
Move distance gauge to
touch edge of wheel.
2. Read this dis-
tance measurement
on the arm.
3. Enter offset
distance using the
keypad.
P
R
ES
S
