Coats 90C User Manual

Important: Always read and follow operating instructions. • 5

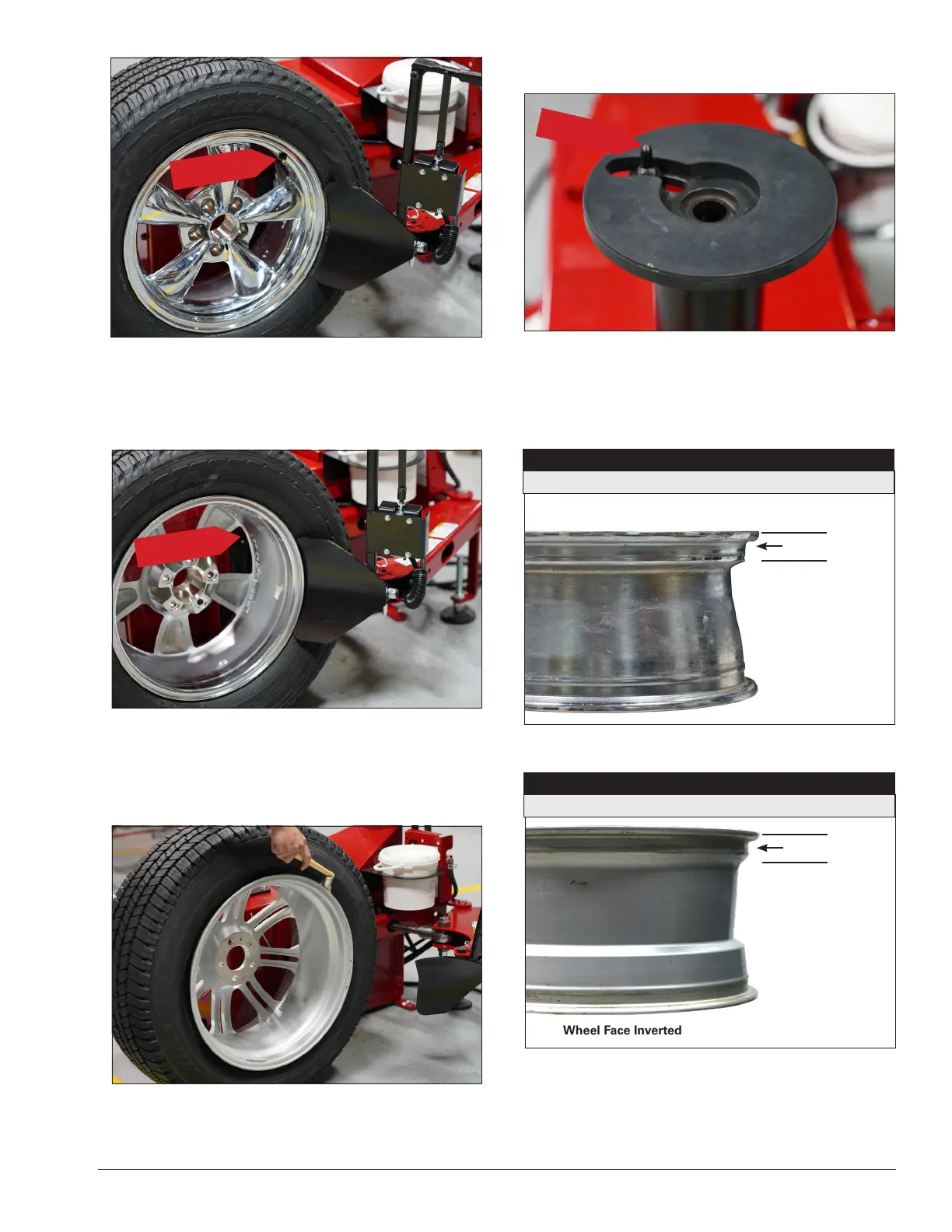

Figure 3 - Position Tire and Bead Loosener Shoe with Valve
Stem in 2 o’clock Position.
3. Turn the wheel around and repeat loosening pro-
cedure on the other side of the wheel (figure 4). This
should be the long side of the drop center (figure 2).
Figure 4 - Position Tire and Bead Loosener Shoe With Wheel
Turned Around and Valve Stem in 2 o’clock Position.
4. Apply tire manufacturer’s approved rubber lubri-
cant liberally to entire circumference of both tire
beads after loosening (figure 5).
Figure 5 - Apply Rubber Lubricant to Tire Beads
5. Place rubber protective cover on top of pedestal
(reverse mount only). Align slot with anti-rotation pin.
Figure 6 - Place Protective Cover on Pedestal
6. Determine the mounting side of the wheel (see
figures 7a and 7b). The mounting side is the narrow
side of the drop center. See figure 2 for more informa-
tion on the drop center.
Figure 7a - Mounting Side Up, Conventional Wheel
Figure 7b - Mounting Side Up, Reverse Mount
Valve Stem at
2 o’clock Position
Narrow Side
Wheel Face
Conventional WheelConventional Wheel
Mounting Side Up
Valve Stem at
2 o’clock Position
Anti-rotation Pin
Wheel Face Inverted
Narrow Side
Reverse Mount WheelReverse Mount Wheel
Mounting Side Up
