COBHAM RT-7000 RMR - Figure 7-26: Antenna Tuner J2; Figure 7-27: Antenna Tuner J3; Table 7-9: Antenna Tuner J2 Signals

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 95 of 138

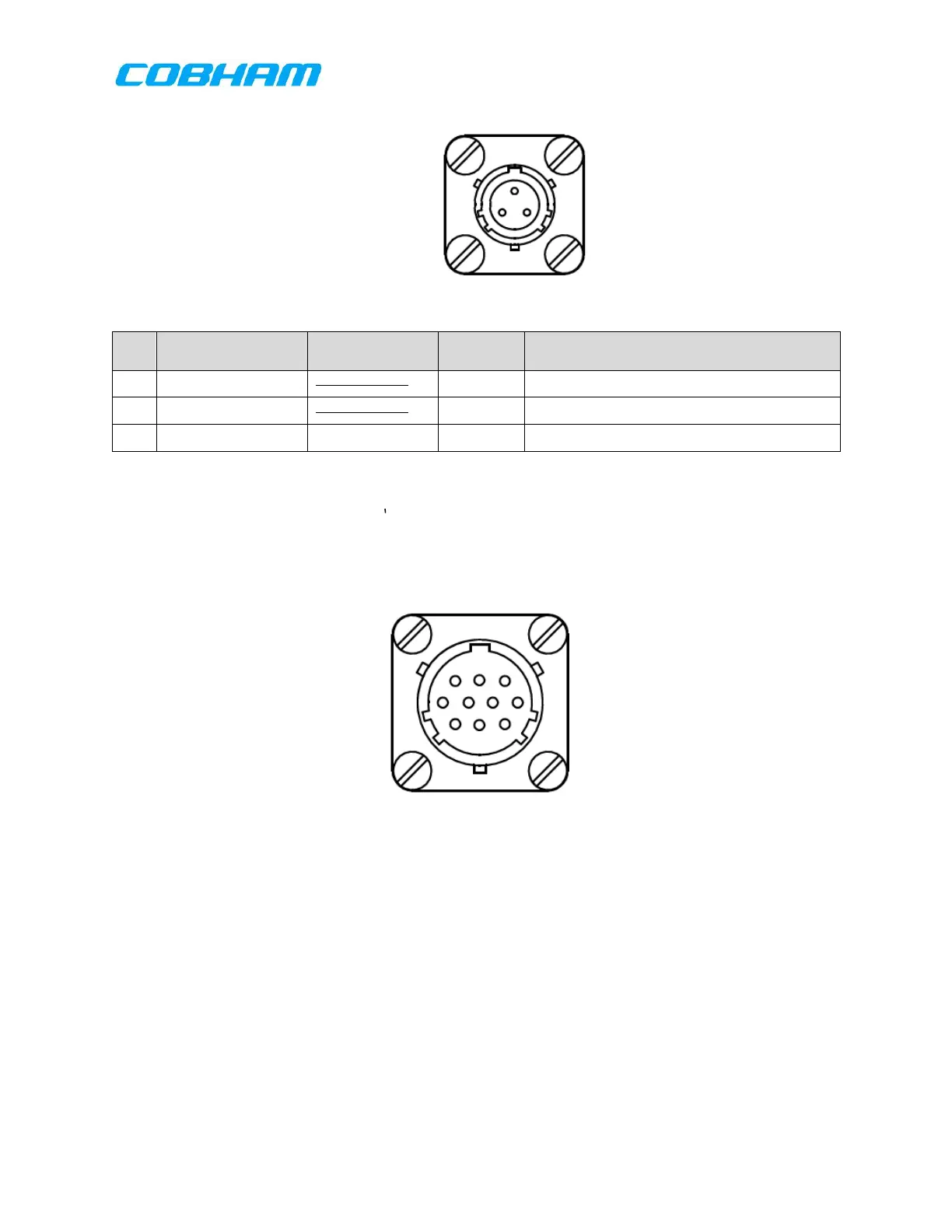

Figure 7-26: Antenna Tuner J2
PI
N
SIGNAL NAME
Connection
Wire
Destination
A
28 VDC
20
Aircraft 28V, 500mA
B
DC Return
20
Aircraft Power Return
C
Ground
NC
20
Backshell
Table 7-9: Antenna Tuner J2 Signals
(3) J3
The J3 connector provides tuning information between the RT-7000 PMR and the
tuner. J3 is a KPTO2E-12-10S, 10 pin connector, with aircraft mating connector:
KPT06E-12-10P.
Figure 7-27: Antenna Tuner J3
