COBHAM SAILOR 6194 - Page 35

Chapter 3: Connecting cables
SSA and Alarm Panel (X7 to X14) 25
33333
Connecting cables
Non-SOLAS Alarm Panel

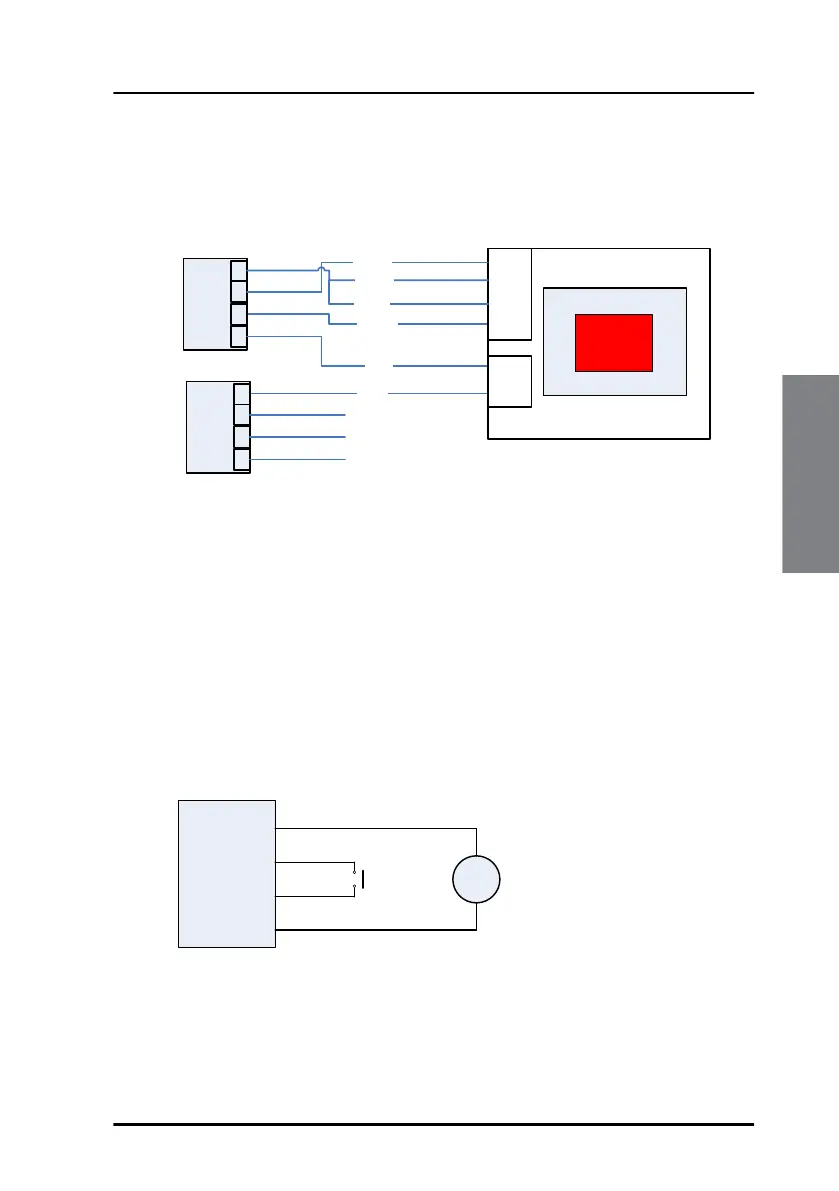

Connect the Non-SOLAS Alarm Panel(s) as shown below:
Buzzer and Mute button
You can also connect a buzzer and a Mute button to X14.
The buzzer indicates incoming or outgoing Distress alerts. The buzzer must
be self-driven (make a sound when connected to power) and it must be
working at 3.3 V DC with a max. current of 100 mA.
The Mute button mutes the buzzer connected to X14 when the button is
pressed. The button must be a non-latched normally-open button of the
type single-pole single-toggle (SPST).
Connect the buzzer and Mute button as shown below:
3,1,1
3,1*1'
3,19
3,12XW
<HOORZ
3LQN
*UD\
1&
1&
12
12
9&&
/('
6$,/25($ODUP3DQHO
7HUPLQDO
%ORFN
;DQG
;
7HUPLQDO
%ORFN
;
3,1,Q
3,1*1'
3,19
3,12XW
%URZQ
:KLWH
*UHHQ
Terminal
block X14
Input
GND
3V3
Output
Mute
button
buzzer
+
2
3
4
1
