Location
32
Mounting and
Connection
Mounting and Connection
Hold the radio with the mounting bracket
in the exact desired location. If there is no
interference, remove the bracket and use it
as a template to mark the location for the
mounting screws.
Location
Plan location of transceiver and microphone
bracket before starting the installation.
Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.
The transceiver is usually mounted to the
underside of the dash with the microphone
bracket beside it.
Note
The transceiver is held in the
universal mounting bracket by
two thumbscrews which allow
for adjustment at a convenient
angle.
The bracket includes two self-
tapping screws and star
washers. The mounting must
be mechanically strong,
conveniently located.
continued

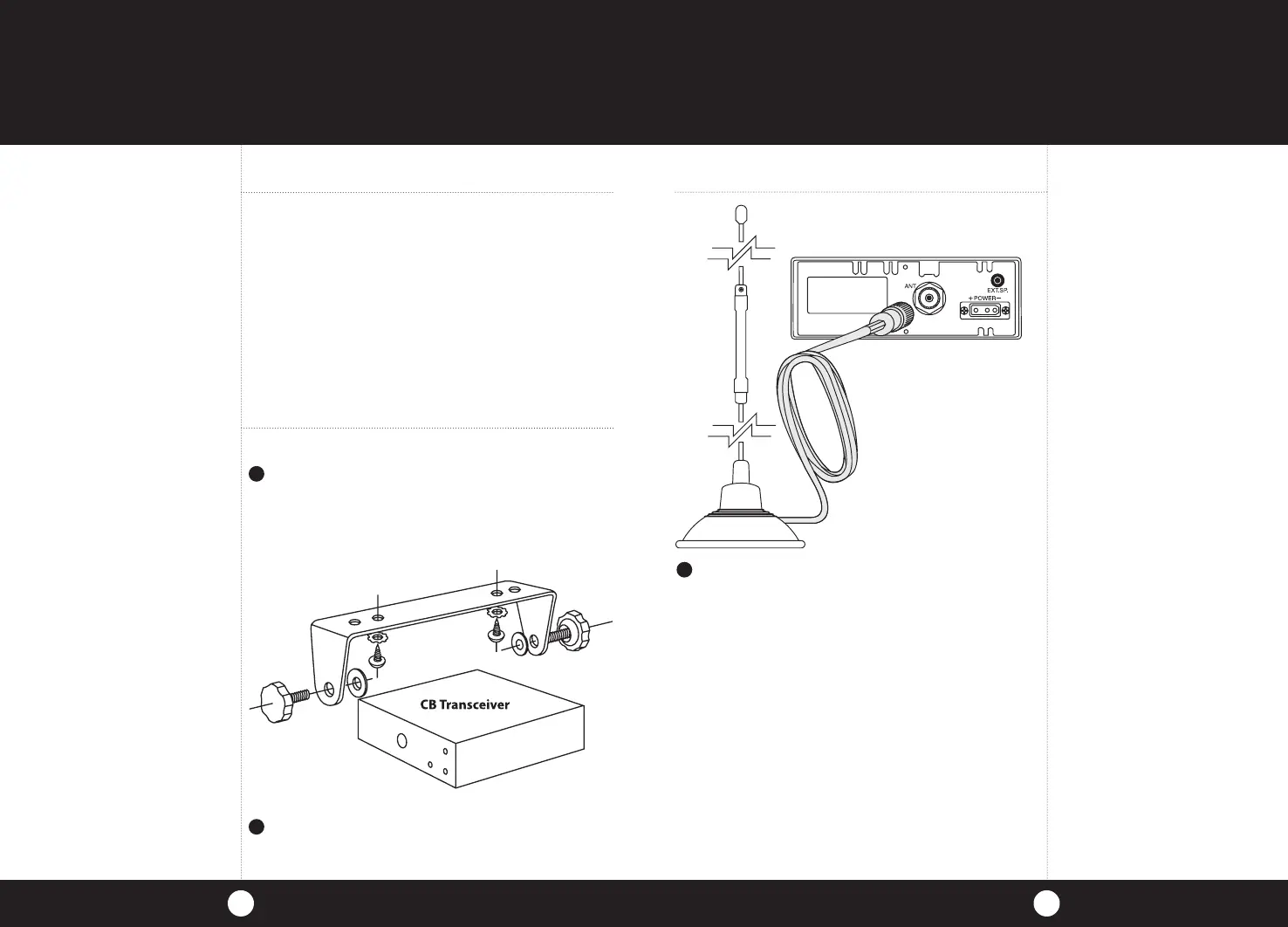

Drill the holes and secure the bracket.
2
1
Connect the antenna cable plug to the receptacle
marked “ANT” on the back of the unit.
