Cobra 4600 CAN/PLIP - Page 11

LED PANEL
1
2
LED
Ø 10 mm

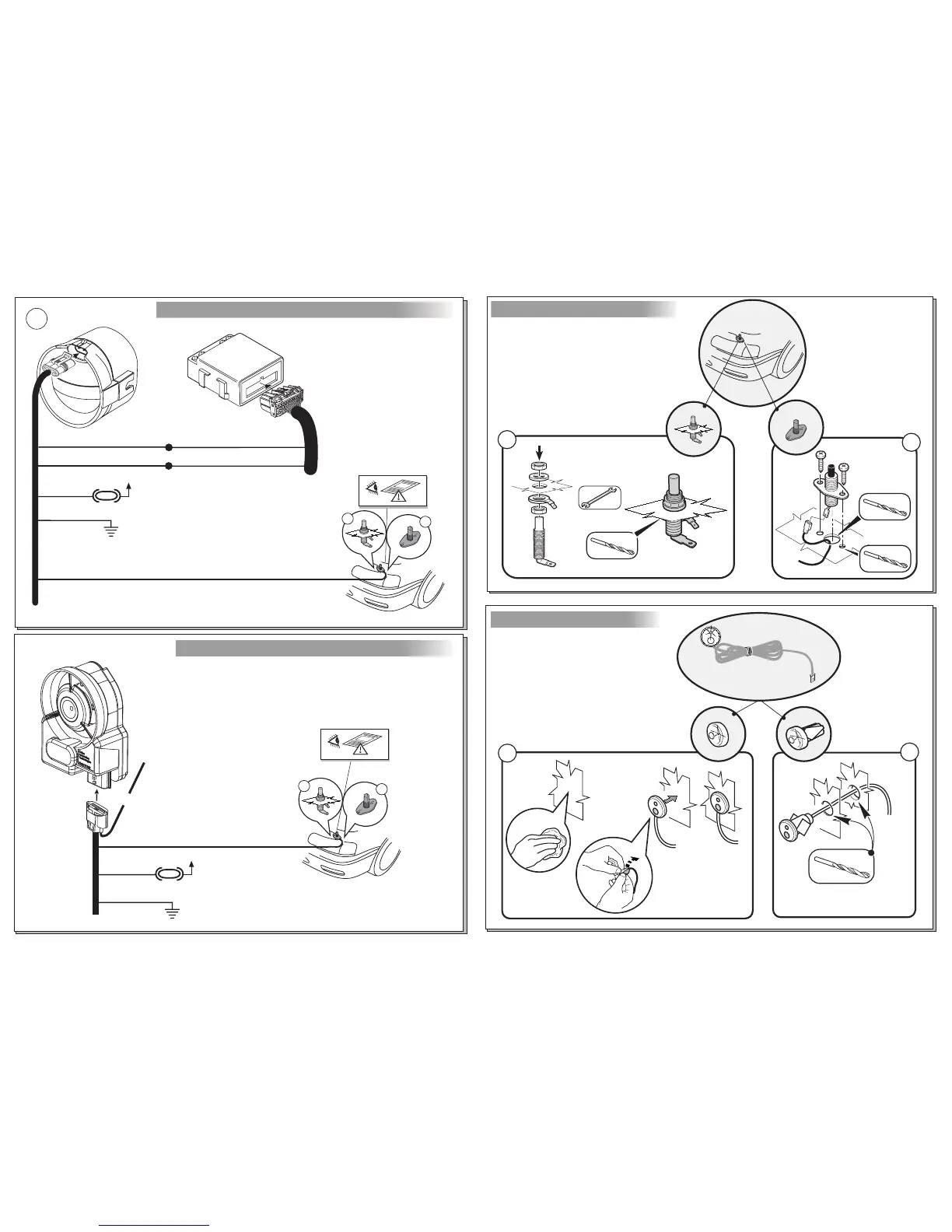

WIRELESS SIREN CONNECTIONS
3 A
RED
BLACK
BLUE
+30
See the
vechicle
fitting
instructions
1
2
NO WIRELESS SIREN CONNECTIONS
J-21
See the
vechicle
fitting
instructions
1
2
3 A
RED
BLACK
+30
BLUE
BLACK
BLACK
J-8YELLOW-BLUEYELLOW-BLUE
BONNET PUSH-BUTTON
1
14 mm
Ø 10 mm
Ø 2 mm
2
Ø 10 mm
J
H
Antenna
