2. Slide wheel spacer over axle taking care to ensure that the internal
o-ring is in place.
3. Continue sliding axle through brake-side lug and reinstall axle cap
(6 ft-lb, 8 Nm)
4. Lightly torque all four axle pinch bolts
5. Drop the bike onto the ground, engage the front brake, and push up
and down on the handlebars several times to ensure that the front
forks and the front wheel are properly aligned with each other.
6. Apply final torque to all four axle pinch bolts (7.4 ft-lb, 10 Nm)
Ignition Timing
The ignition timing value for the CX65 is 0° retarded from the standard base

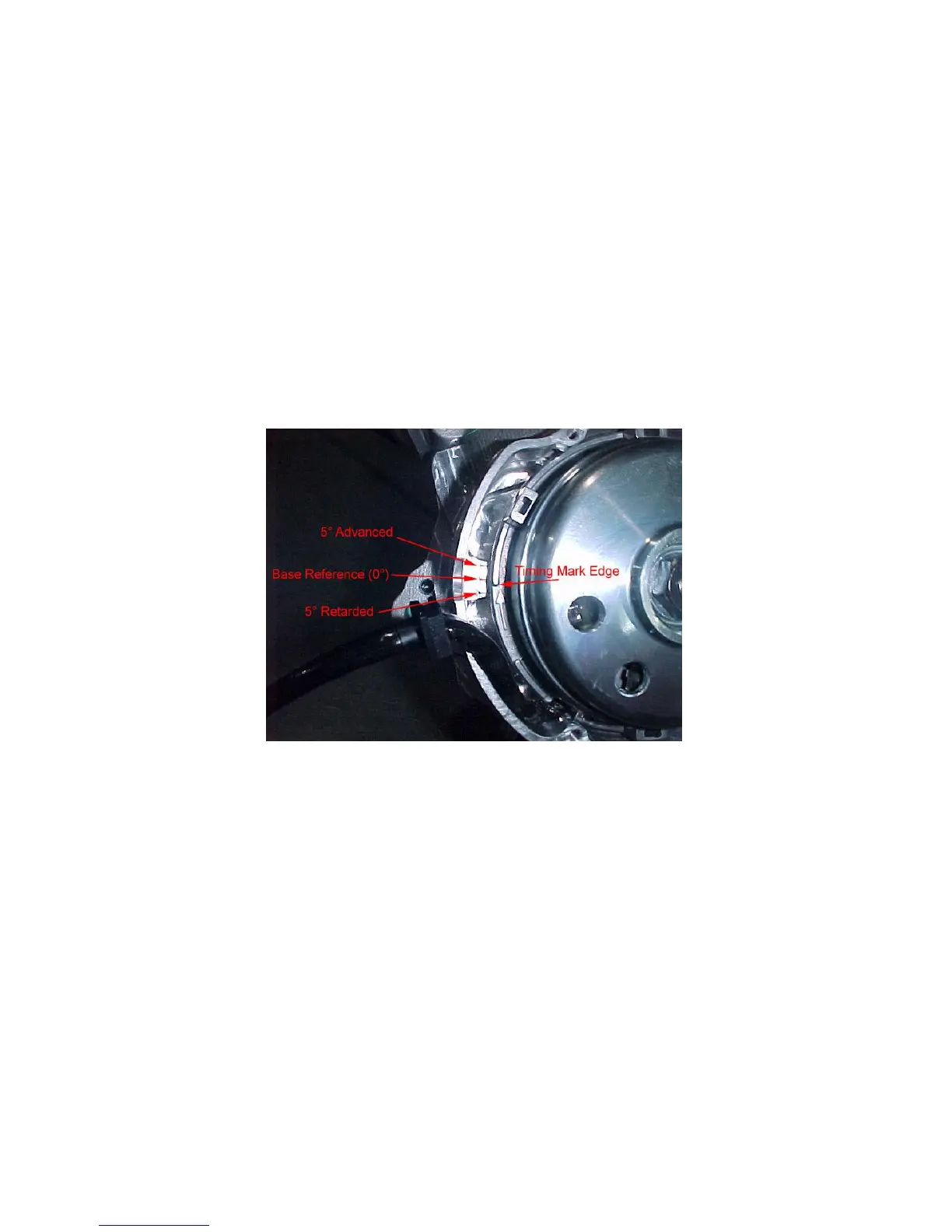

reference (0°). This can be verified by removing the ignition cover and looking as
shown in the figure below.
The center mark on the cases is the standard base reference timing mark (0°),
and the other two large marks are 5° advanced and retarded. The small timing
marks between 0 & 5° is 2.5°.
To change the timing, one must remove the flywheel with Cobra 65 flywheel
puller # MCMUTL05. After the flywheel has been removed, the timing can be
adjusted by loosening the stator bolts and rotating the stator to the desired
position.
Cable Ties
There are two locations where we have used reusable frame mount cable ties
this year on the 2013 CX65.
