LINUS14/14D 2. THE AMPLIFIER

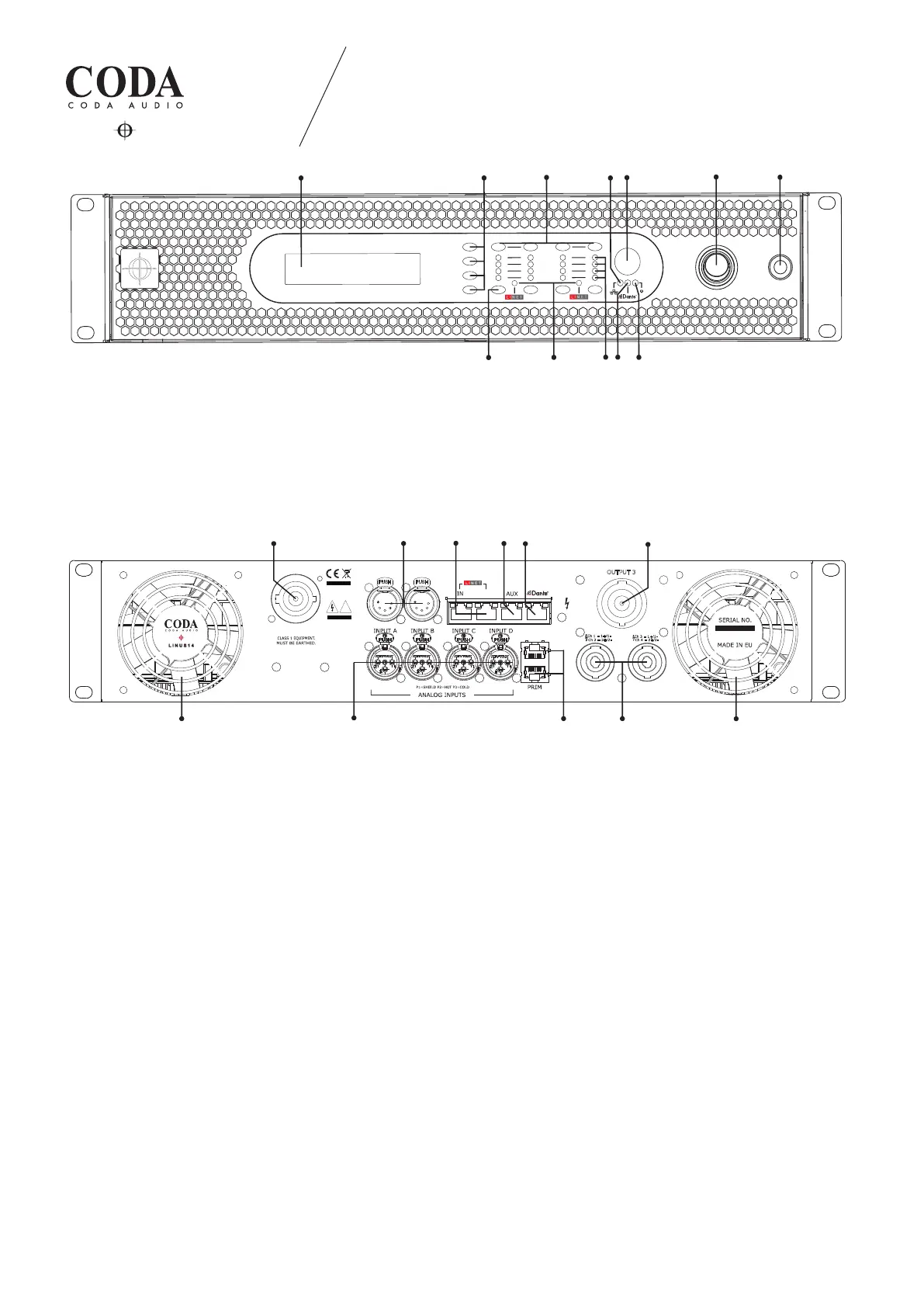

The front
1 Display 7 Channel selection buttons
2 Navigation buttons 8 LiNET connection LED
3 Channel mute buttons 9 LEDs
4 Rotary encoder knob 10 Ethernet connection LED
5 Standby power switch 11 Dante connection LED (LINUS14D only)
6 Grill screw 12 Mains connection LED
The rear
13 AC power connector 17 Dante connector
14 Sensor connection 18 SPEAKON® connector
15 LiNET network connections 19 Cooling air outlet vents
1 IN/1 OUT (AES/EBU) 20 XLR - Line inputs
16 AUX connection (alarm override) 21 Ethernet connector for remote access
LIMIT
SIGNAL
SENSOR
PROTECT
MUTE
SEL
ESC
UP
DOWN
L I N U S 1 4 D
1 2
3
4
STORE
1
2
3
4
5
6
8
9
10
11
12
7
ETHERNET
OUTPUT 1
OUTPUT 2
SEC
MAINS I N
100 - 250V ~ 3500W
50 - 60Hz
!
AVIS
RISQUE D E C HOC
ELECTRIQUE
NEP AS O UVRIR
CAU TION
RISK O F E LECTRIC
SHOCK
D O N OT O PEN
OUT
SENSOR
1+2
3+4
O
UTPUT 3
Ch 2 = 2+/2-
Ch 1 = 1+/1-
Ch 2 = 2+/2-
Ch 1 = 1+/1-
Ch 4 = 4+/4-
Ch 3 = 3+/3-
C
h 4 = 2+/2-
Ch 3 = 1+/1-
13
14
15
16
17
18
19
20
21
