Duplex Testing

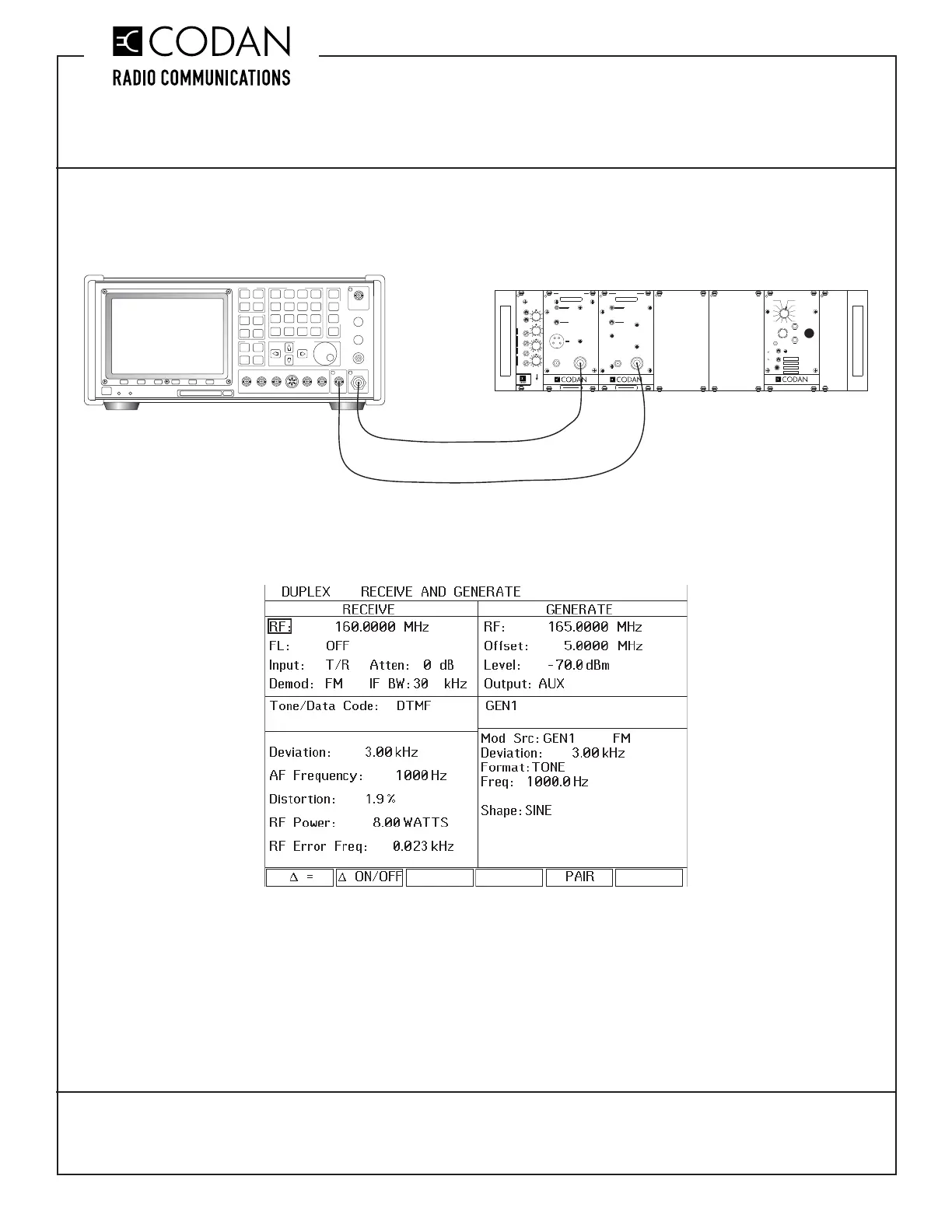

Connect the IFR COM-120 and Codan radio as shown in Figure 17:
Figure 17: Duplex Testing
Select the DPLX MODE button and set up the IFR COM-120 as shown in Figure 18:
Figure 18: IFR COM-120 Duplex Test Confi guration
Enter the correct RF frequency for both the transmitter and receiver, and ensure that the transmitter and receiver
are set to NORM. Ensure the Audio Control Card IS plugged into the subrack and the CTCSS decode and encode
are turned OFF.
T/R port from IFR COM-120
to RF OUT on Tx
AUX RF OUT port from IFR COM-120 to RF IN on Rx
