Receiver Testing
Connect the IFR COM-120 and Codan radio as shown in Figure 2:

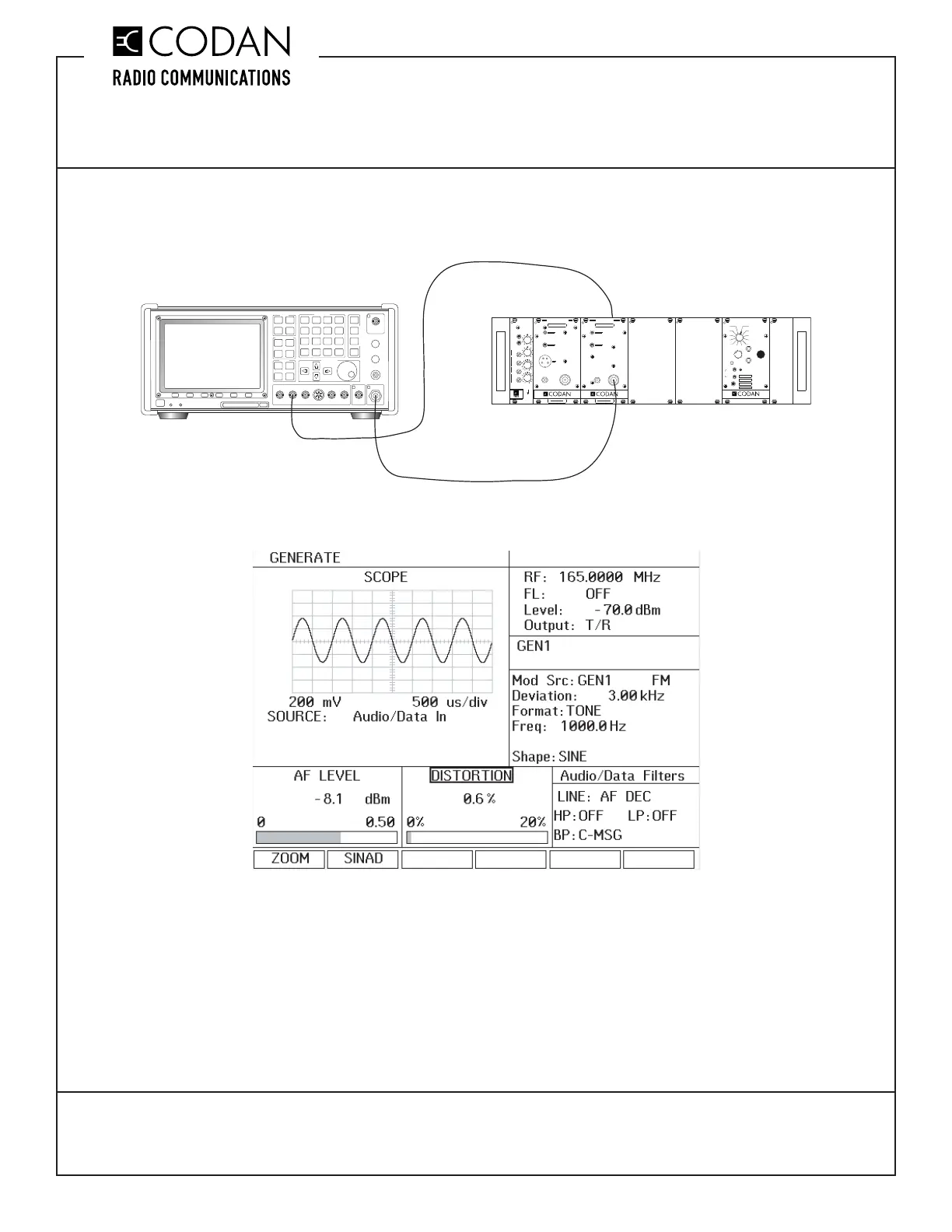

Figure 2: Receiver Testing
Select the GEN MODE button and set up the IFR COM-120 as shown in Figure 3:
Figure 3: IFR COM-120 Receiver Test Confi guration
The AF LEVEL and SCOPE may not read as shown; these levels are set with an external 600 ohm matching load.
Audio levels will read higher without the matching load. See the Receiver and Auxiliary Output Audio Level section
for more information. Enter the correct RF frequency, and ensure that the deviation level is set at ± 60% maximum
deviation (±3.0 KHz wide / ±1.5 KHz narrow).
On the Codan Radio system, ensure the receiver is turned on and turn the System Regulator Speaker switch ON.
Ensure the rotary select switch is set to the correct Receiver Audio (depending on the receiver being tested), then
turn the volume up until the 1 KHz tone is audible.
