Receiver Front End Alignment and Tuning:
Tuning of the Front End fi lter is typically only required when the Sensitivity or Distortion does not meet published
specifi cations, or when the receiver RF frequency is changed beyond the band pass of the fi lter (typically 5 - 7
MHz).
Connect the IFR COM-120 and Codan radio as as shown in Figure 8:

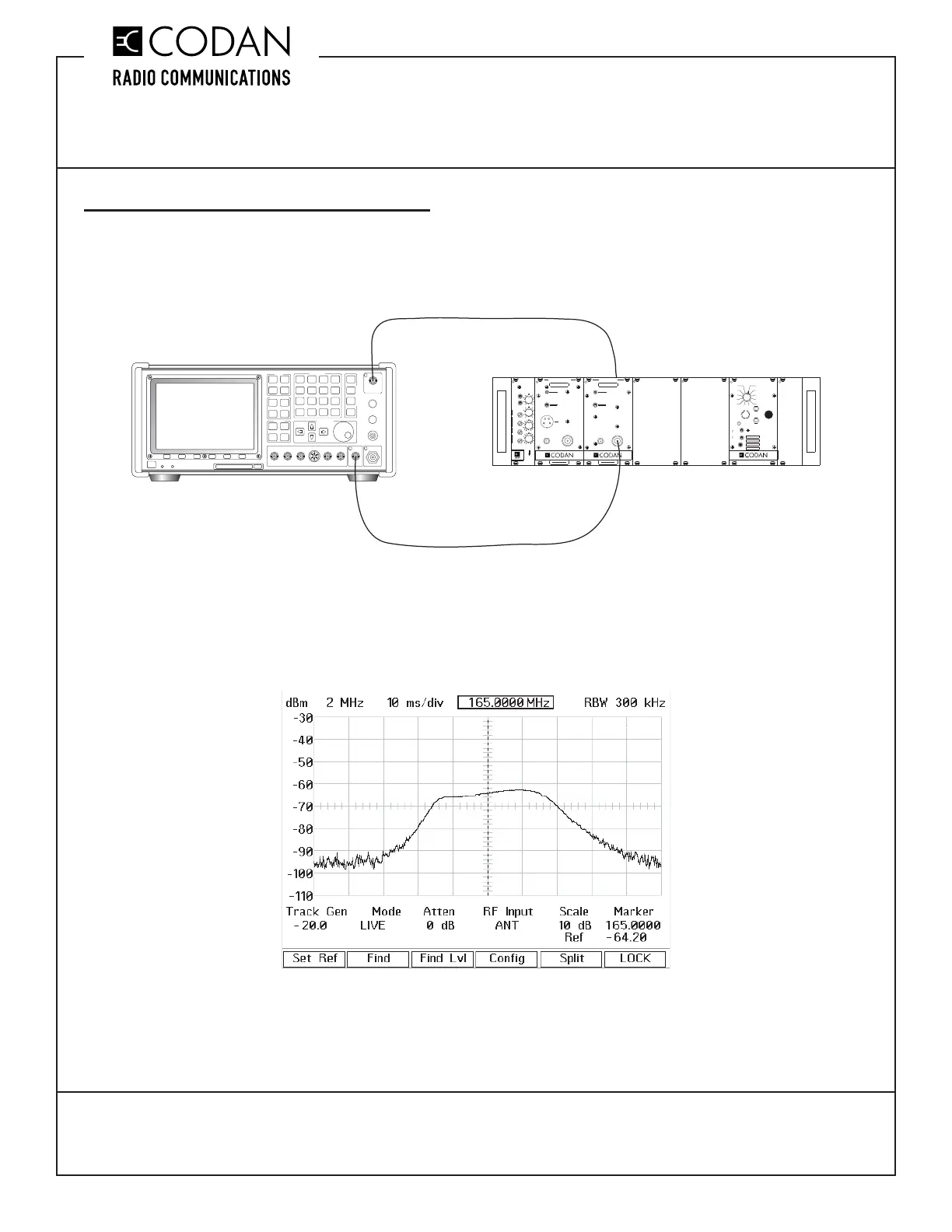

Figure 8: Receiver Front End Alignment and Tuning
The internal cable in the receiver from the output of the front end terminates in an SMB connector. The SMB plugs
directly into the Receiver 21.4 MHz IF / Audio Main Board. Disconnect the SMB cable from the Mainboard connector
and use the SMB-BNC adapter to connect this point to the ANT input on the IFR COM-120.
Select the ANLYZ INSTRUMENTS button and set up the IFR COM-120 as shown in Figure 9:
Figure 9: IFR COM-120 Spectrum Analyzer Confi guration
Enter the correct RF frequency and ensure the receiver is turned on. The fi lter waveform will appear on the scope
display. To tune the Front End fi lter, remove the dust caps on the variable capacitors and, starting from the capacitor
closest to the front panel and moving back, tune the fi lter to its new frequency.
