Code 3 DEFENDER TriCore User Manual

8
FIGURE 7

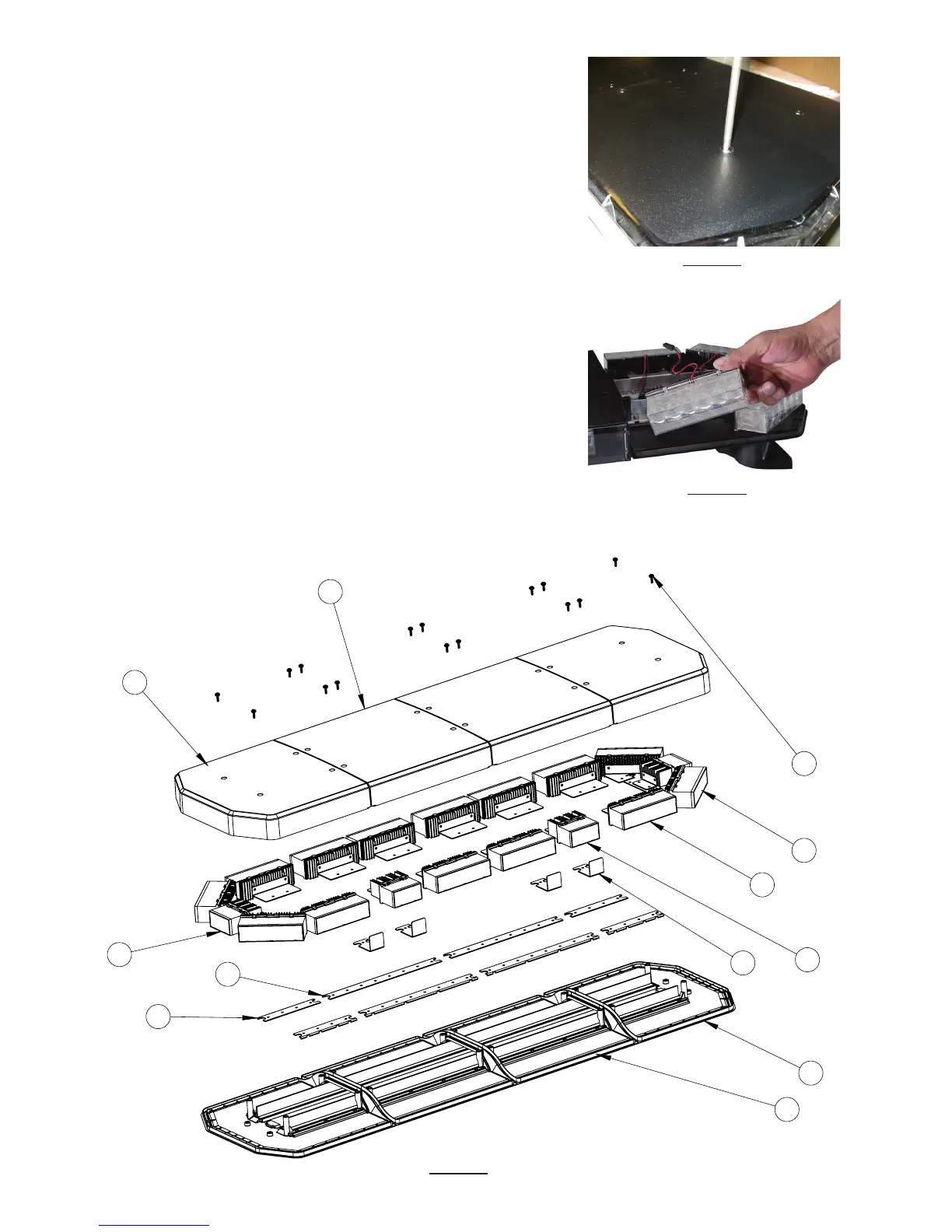

DEFENDER - EXPLODED VIEW
FIGURE 2
1
2
8
8
9
9
3
4
5
6
10
7
Maintenance
Lens Cleaning
Use plain water and a soft cloth, or Code 3® lens polish and a very soft paper towel or
facial tissue. Plastic scratches easily, as a result, cleaning is recommended only when
necessary (about every six months). Do not subject the lenses to car washes that use
brushes, as these will scratch the lenses.
Lens Removal
With a Phillips screwdriver, remove the (4) #8 X 5/8" Phillips Pan Head Hi-Lo Screws
W Neoprene Washer (See Figure 2). Then gently lift the lens off. When nished care-
fully replace the lens making sure the lens gasket is not misplaced, then replace the
lens mounting screws making sure the neoprene washers are in place.
Light Head Removal
Unplug the TriCore light head's power wire/wires from the light bar's wiring harness.
Then with a 1/4" Hex Bit Driver, remove the #8 X .270" 6 Lobe Hex Washer Head
Screws that attach the light head mounting brackets to the light bar. Note: For front
or rear facing light heads there are (2) screws holding each light head and for
corner light heads there are (6) screws holding the light head. Then remove the
light head (See Figure 3).
FIGURE 3
