Code 3 SuperVisor - Page 35

7

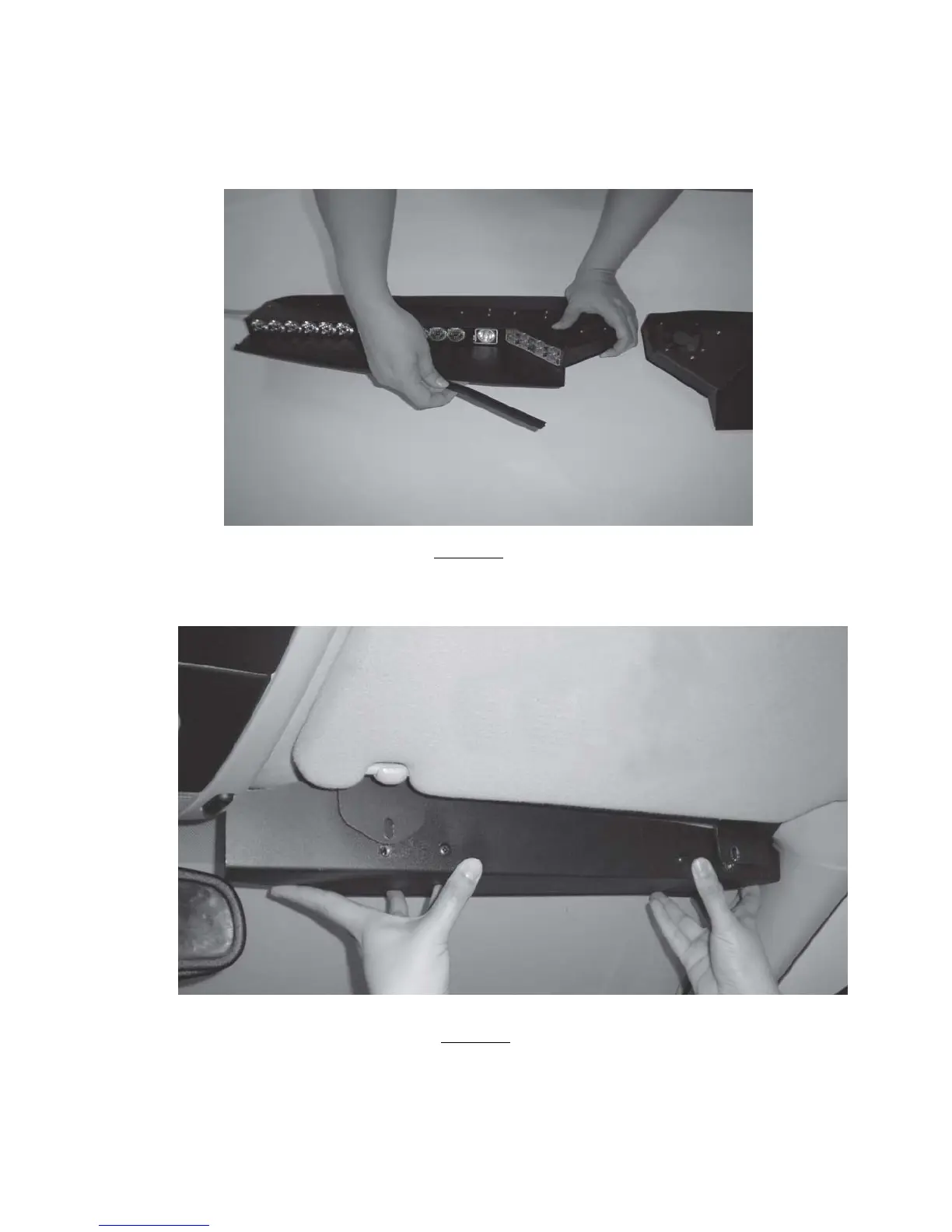

FIGURE 8
Mounting the SuperVisor™
Before mounting the SuperVisor, apply gasket stripping to the front edges of the lower chassis in order to
prevent scratching the windshield. See Figure 8. Once all four brackets and sun visors are attached, the
SuperVisor is now ready to be installed. Position the passenger side SuperVisor in the center of the
passenger side brackets as shown in Figure 9.
FIGURE 9
