8

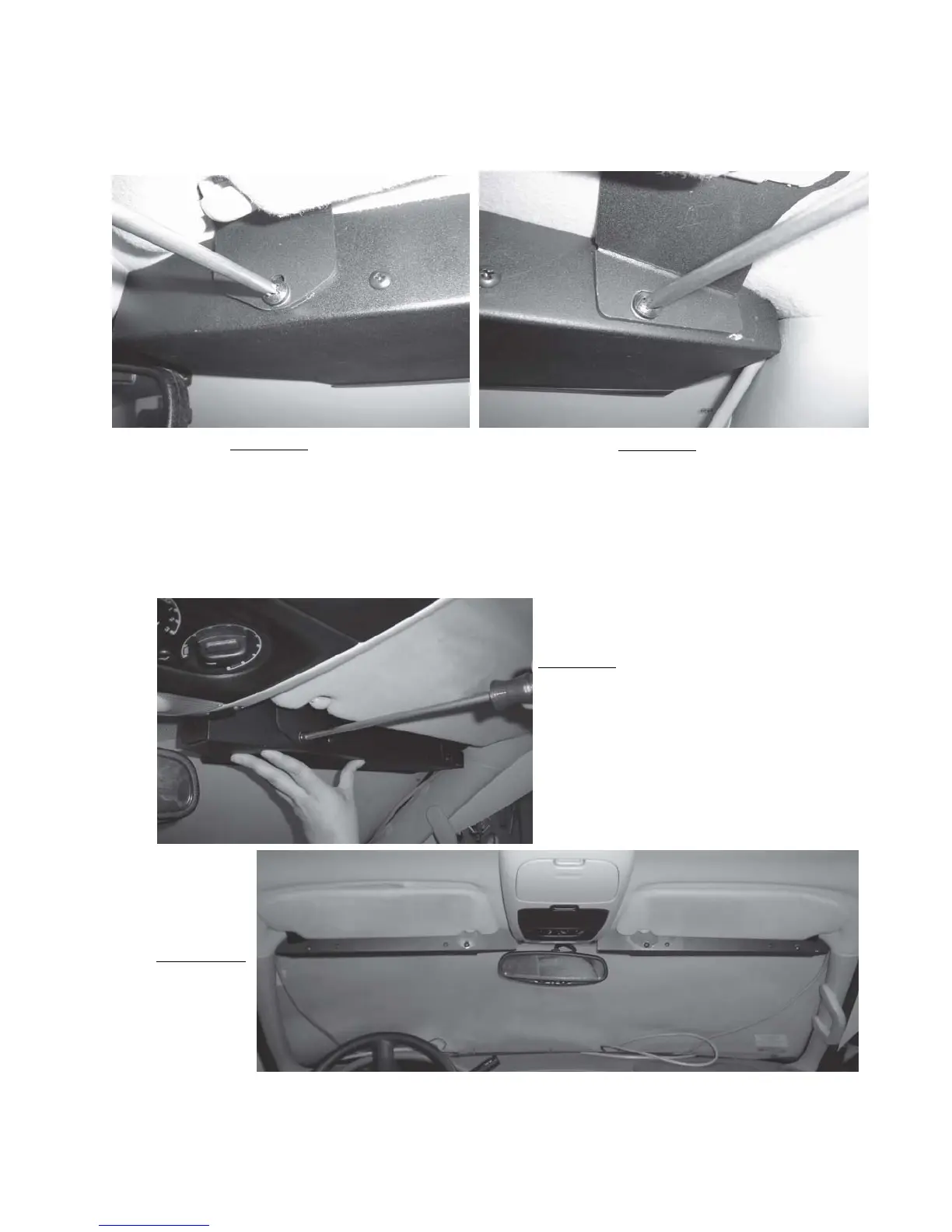

FIGURE 10
Mounting the SuperVisor™ (continued)
The two center brackets should line up with the holes in the SuperVisor's lower chassis. Using the supplied
1/4"-20 bolts and internal tooth lock washers, loosely install the retainer clip bracket as shown in Figure
10.
Next, if necessary, slightly loosen the pivot arm bracket and sun visor retaining clip screws in order to align
the pivot arm bracket's hole with the mating chassis hole on the end of the SuperVisor. Finally, thread the
supplied bolts and the internal tooth lock washers through the pivot arm bracket's hole into the hole on the
end of the chassis, shown in Figure 11. Tighten all pivot arm and sun visor retaining clip screws.Using a
tape measure, center the SuperVisor from side to side. Make sure the superVisor is pushed snug to the
headliner, as shown in Figure 12. Finally, tighten both bolts securely. Do not overtighten. Repeat the
mounting procedure for the driver side SuperVisor as show in figure 12A.
Caution: The bracket fasteners make excellent hard mounting points for
radar guns and video cameras etc. Drilling into the housing of the light
bar could damage wiring or other internal components.
FIGURE 11
FIGURE 12A
FIGURE 12
