292009 Audiovox Electronics Corporation. All rights reserved.
BLUE UNLOCK ( - )
OPEN
GREEN LOCK ( - )
PURPLE STARTER OUTPUT - MOTOR SIDE ( + )
RED BATTERY 12V ( + )
RED BATTERY 12V ( + )
PINK IGNITION 1 ( + )
PINK/WHITE IGNITION 2 ( + )
ORANGE ACCESSORY 1 ( + )
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
BLACK GROUND
BROWN SIREN OUTPUT ( + )
RED BATTERY 12V ( + )
BROWN/BLACK HORN OUTPUT ( - )
BLUE/BLACK IGNITION 3 / ACTIVE OUTPUT ( - )
VIOLET/BLACK AUX 1 ( - )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
ORANGE GROUND WHEN ARMED ( - )

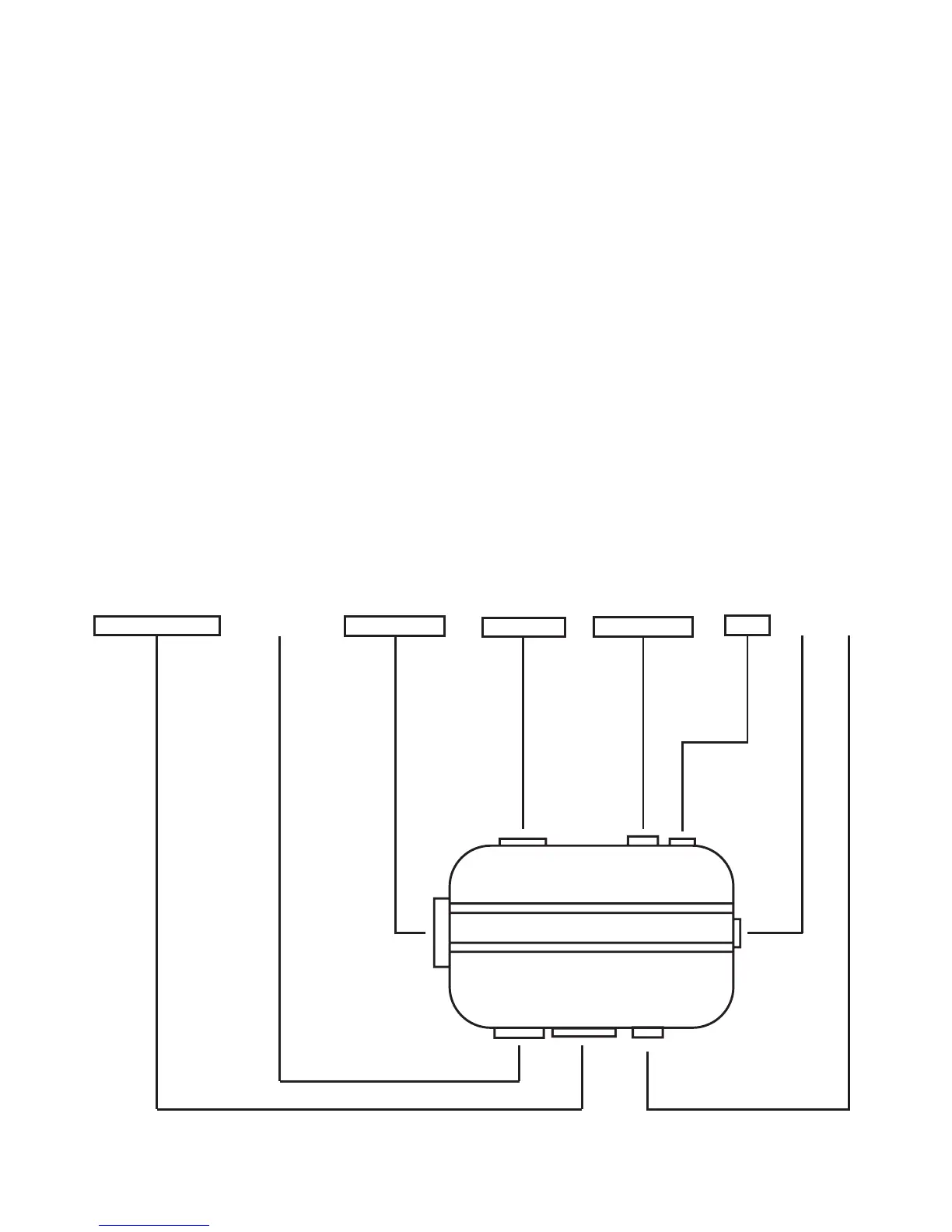

DBI PORT
ANTENNA
LED
VALET
SHOCK SENSOR PORT
BLUE/WHITE INSTANT TRIGGER INPUT ( - )
GREEN DOOR TRIGGER INPUT ( - )
PURPLE DOOR TRIGGER INPUT ( + )
WHITE/BLUE EXTERNAL START INPUT ( - )
GRAY HOOD INPUT ( - )
BLACK/WHITE NEUTRAL SAFETY INPUT ( - )
BROWN/RED BRAKE INPUT ( + )
PURPLE/WHITE TACH INPUT
CA 6150 / CA 6550
