transformer. After completing the wire connections, install the supplied terminal covers
(see Figure on Page 23).
4.3.4 Communications Wiring
4.3.4.1 Have category 3 or higher 4 pair cable terminated to a RJ45 applying TIA/EIA
T568-B specifications.

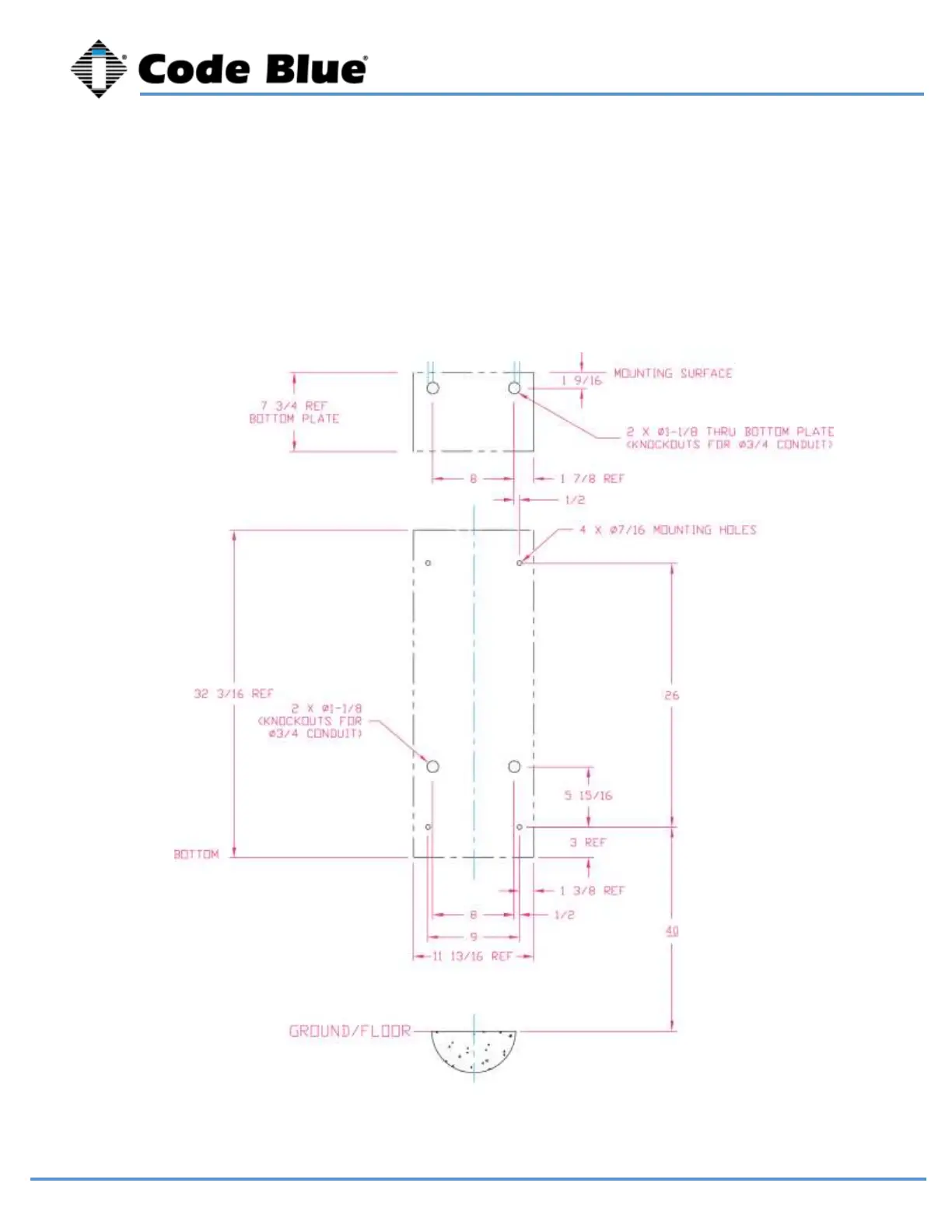

Figure 3
