CAUTION
The Steadyburn Mode will be ON in dark or night ambient environments and OFF in
bright or daylight ambient environments. The S-1050 LED Beacon/Strobe has two
built-in photo response features: (a) dawn/dusk transition delay of 15-30 minutes
and (b) transient light acknowledgement delay of at least 3 minutes.

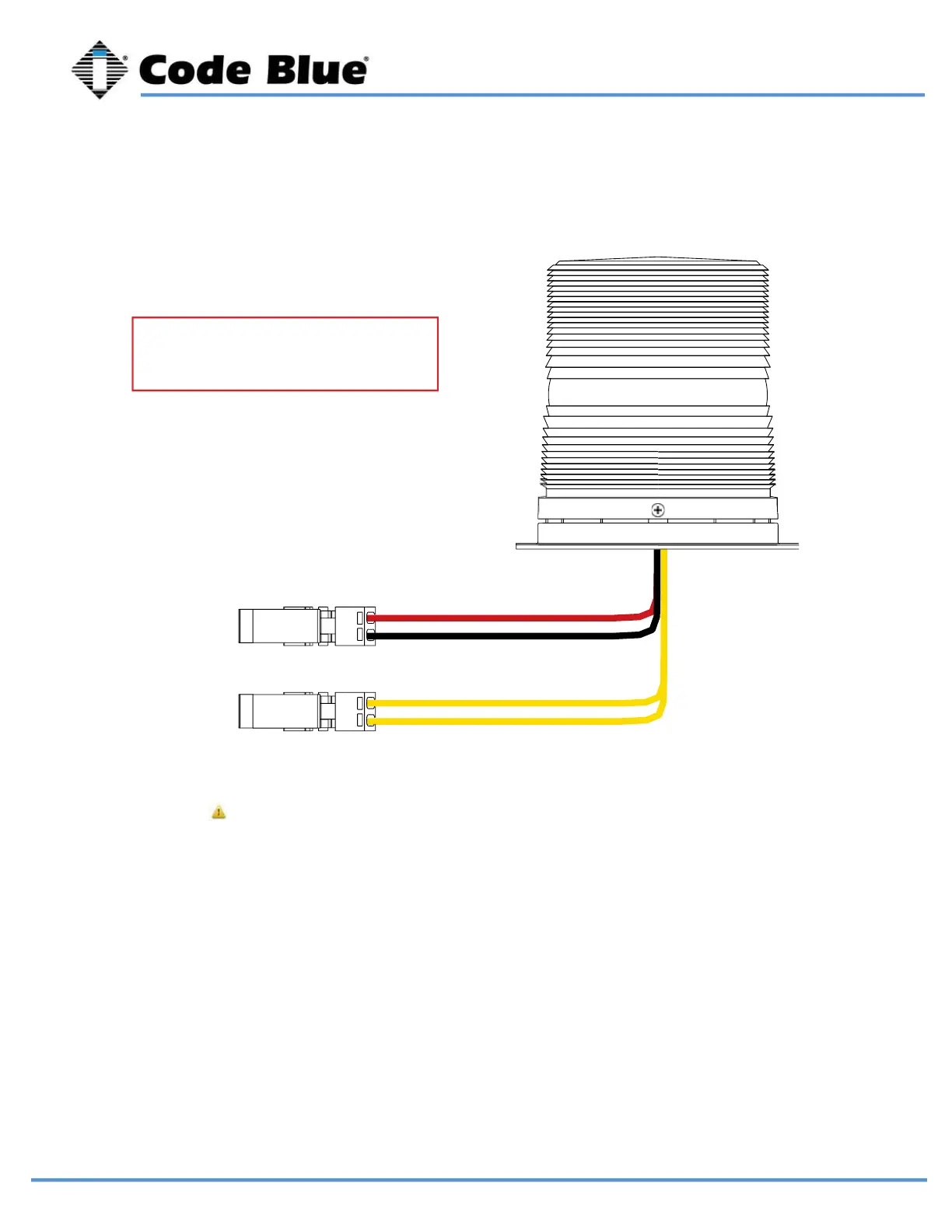

To activate the LEDs in the PRIMARY-STEADYBURN MODE, connect the BLACK and
RED wires to 12-24 volts AC or DC.
When in PRIMARY-STEADYBURN MODE, to change the LEDs to SECONDARY-FLASH
MODE, connect both YELLOW control wires together (i.e., CLOSED = ON).
DRY CONTACT
CLOSED = "ON"
RED
BLACK
YELLOW
YELLOW
(FLASH MODE)
(FLASH MODE)
COMMON (GROUND)
POSITIVE (12-24V DC or AC)
S-1000 & S-1050 Strobe Operation
OPERATION
PHOTOCELL FEATURE (S-1050 MODEL)
REMOVE ALL POWER FROM UNIT BEFORE SERVICING.
NOTE: Instructions pertain to:
Model S-1000 LED Beacon/Strobe and
Model S-1050 LED Beacon/Strobe only.
