1.2 - Unpacking
Remove the imager from its packing and inspect it for damage. If the scanner was damaged
during shipping, please call Code at (801) 495-2200.
The standard CR2 unit is shipped with a USB cable interface. The unit also features a battery
blank that must be installed in the unit at all times.
Various accessories are available for the CR2.
• 3 cable options (USB, RS232 or PS/2)
• 1400 mAH or 1950 mAH long-life Lithium-Ion battery
• Class 1 Bluetooth radio with 300 foot operating range
• Clip-on pistol grip handle
• External battery charger
• CodeXML Bluetooth modem
Please keep your packing materials. The CR2 is shipped in an approved shipping
container and should be used if you ever need to return your equipment for servicing.
The CR2 utilizes digital camera technology to take a picture of a symbol. Once an image is captured,
the CR2 utilizes advanced decoding algorithms to extract data from the captured image.
The CR2 is available as a palm-held unit or users may purchase a clip-on pistol-grip handle.
The palm held unit features left and right triggers (figure 1.1). These triggers may be programmed to
perform various features. The reader is shipped with the left trigger and right trigger functioning as a
decode symbol command.
The clip-on pistol-grip handle features a trigger on the handle (figure 1.2). The two triggers on the top
of the unit also work when the handle is attached.
1.3 - Targeting and Reading Techniques
Note: The trigger on the handle attachment is light.
Squeezing to hard may damage the unit.

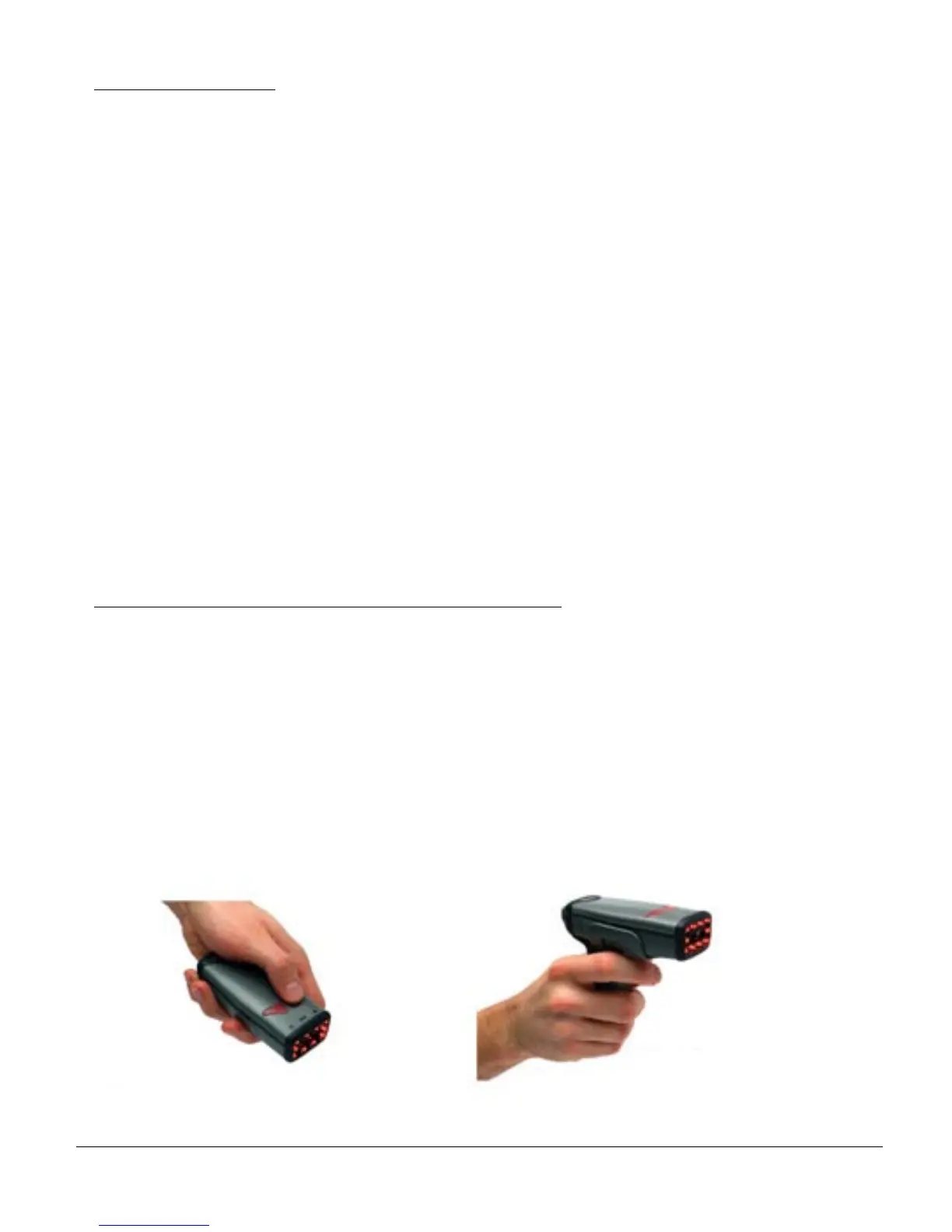

Figure 1.1
Figure 1.2
