If not using the fixed length bolts, cut two of the socket
head screws to the required length for your door.
Approximate overall length should be door thickness
plus 25mm (1”), to allow about 10mm (
3
/
8
”) of threaded
bolt to enter the outside plate.
Apply the front and back plates, with the neoprene seals
in position, against the door, over the protruding ends
of the spindles.
Fix the two plates together using the socket head bolts,
starting with the top fixing. Ensure that the two plates
are truly vertical and then tighten the bolts using the
‘T’ shaped Allen key. Do not use excessive force.
Before closing the door, enter the code and ensure
that the latchbolt will retract when the lever handle
is depressed. Now check the operation of the inside
lever handle. If there is any binding of the handles
or latch then loosen the bolts slightly and reposition
the plates slightly until the correct position is found,
and then re-tighten the bolts.
STEP 4
STEP 5
STEP 6
STEP 7

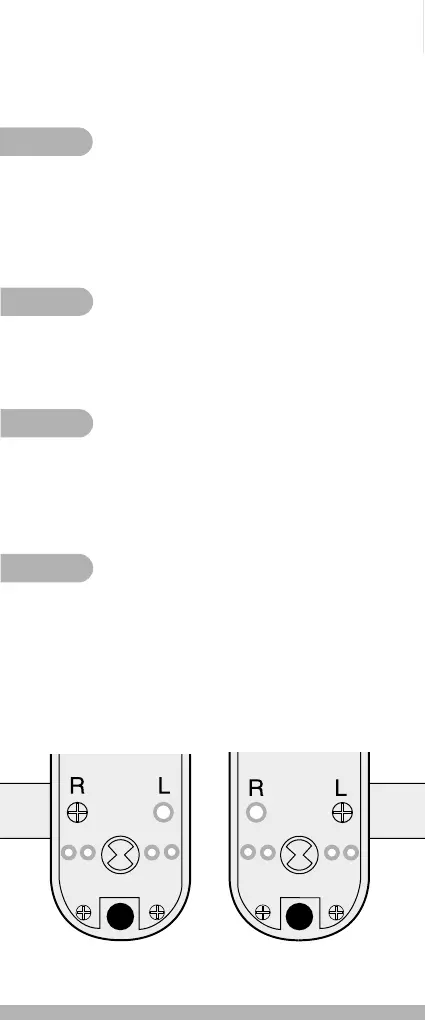

Fig 1
Set up for
Right Hand hung door
Fig 2
Set up for
Left Hand hung door
