Preparation Steps
Before installing the optional modules, please make some preparations as follows.
STEP-01
Turn Off The Printer :
Remember to switch off the printer before installing any module.
STEP-02
Open The Printer Cover :
Open the printer cover by pressing the release buttons on both sides of the printer housing.
Please see the Section 2-1 for further information about Open The Printer Cover.
STEP-03
Open The Printing Mechanism :
Press the release catches on both sides of the printing mechanism to open and lift the printing mechanism.
Please see the Section 2-2 for further information about Open The Printing Mechanism.
STEP-04
Remove The Front Cover :
To remove the front cover, press in the two plastic release tabs.
Remove the front cover as shown in the illustration.
Accessories
026

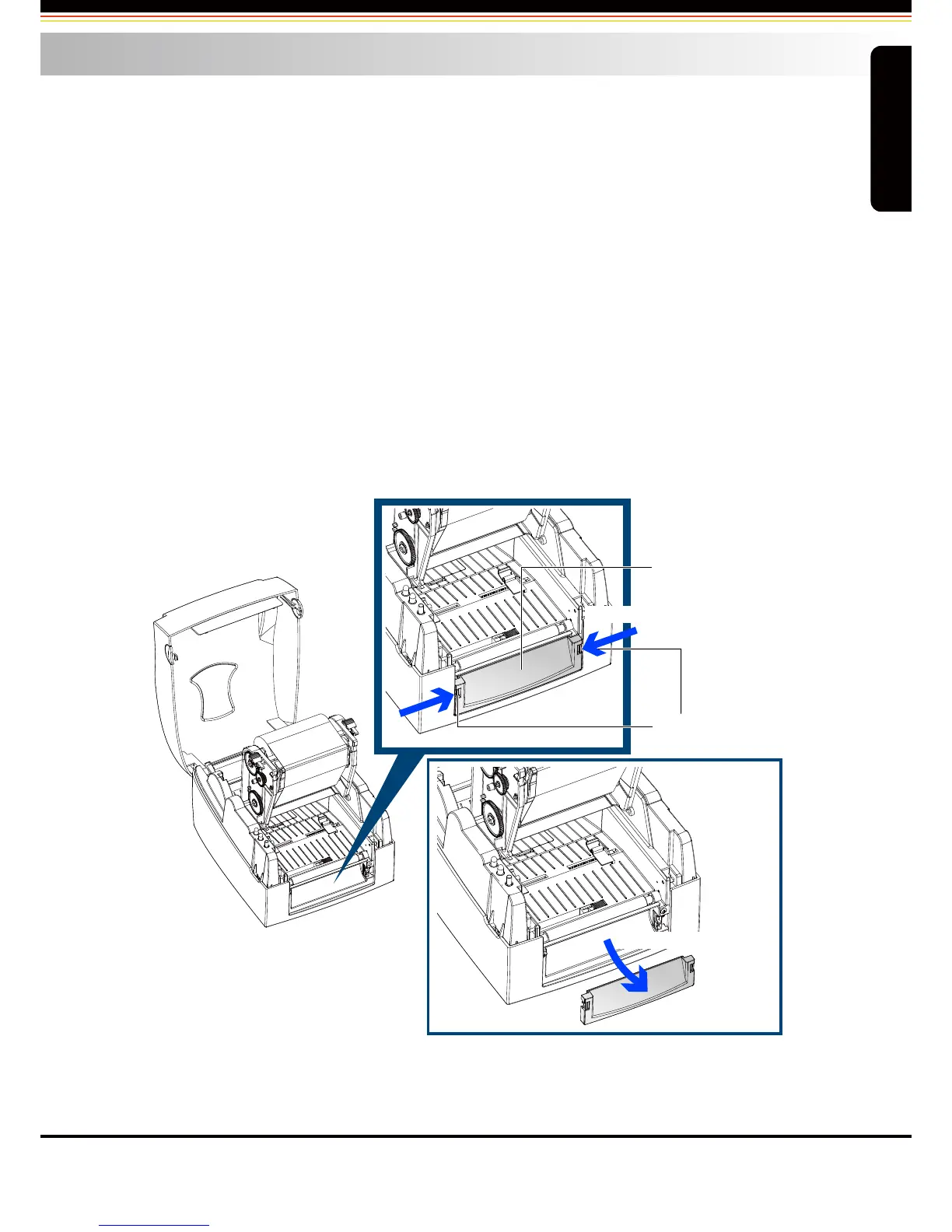

Release the front cover
FRONT COVER
PLASTIC RELEASE TABS
Pressing the two plastic release tabs
