Codex G500 Series - Installing the Label Dispenser

28
5 Accessories
G500 Series
 Installing The Label Dispenser

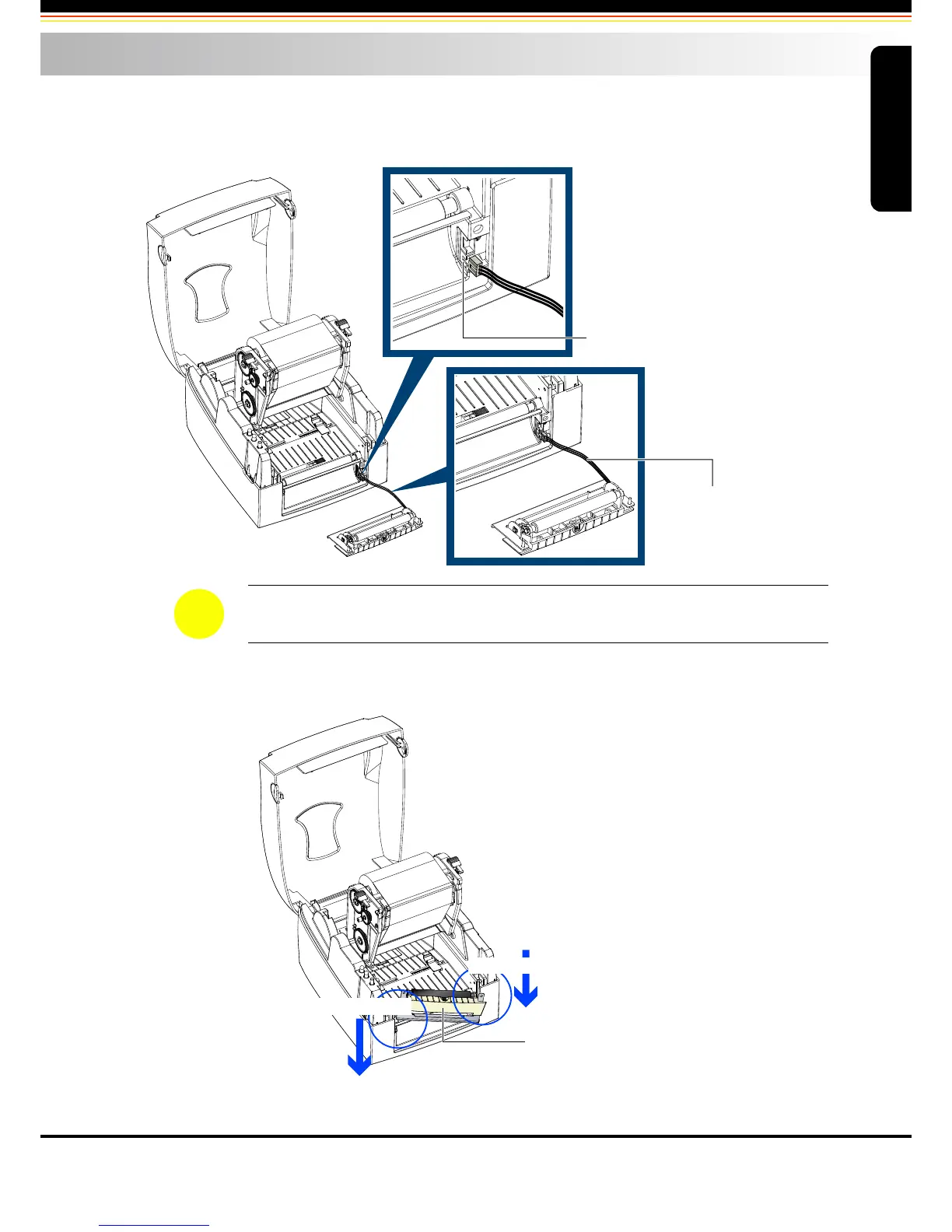

Connect the dispenser cable to the lower jack as shown in the illustration on the right.
Install the dispenser by pressing down first its right-hand side and then its left-hand side.
Accessories
028
RIGHT-HAND SIDE
LEFT-HAND SIDE
LABEL DISPENSER MODULE

The printer must be switched off, or the motherboard may be damaged!

There are 2 jacks : the lower jack is for the dispenser, the upper jack for the cutter.
NOTICE
LOWER JACK
CONNECT CABLE OF
LABEL DISPENSER
MODULE
