Cofem COMPACT LYON - Loop Driver; Power Supply Auxiliary Outputs

Digital fire detection control panel
COMPACT LYON
FIRE PRETECTION MANUFACTURER 27
Ctra. de Molins de Rei a Rubí, Km. 8,4 - 08191 RUBÍ (Barcelona) ESPAÑA.
Tlf.: +34 935 862 690 - Fax:+34 936 999 261 - cofem@cofem.com - www.cofem.com
2.2.2- Loop driver
The standard control panel can have a maximum of 2 loop drivers, located inside.

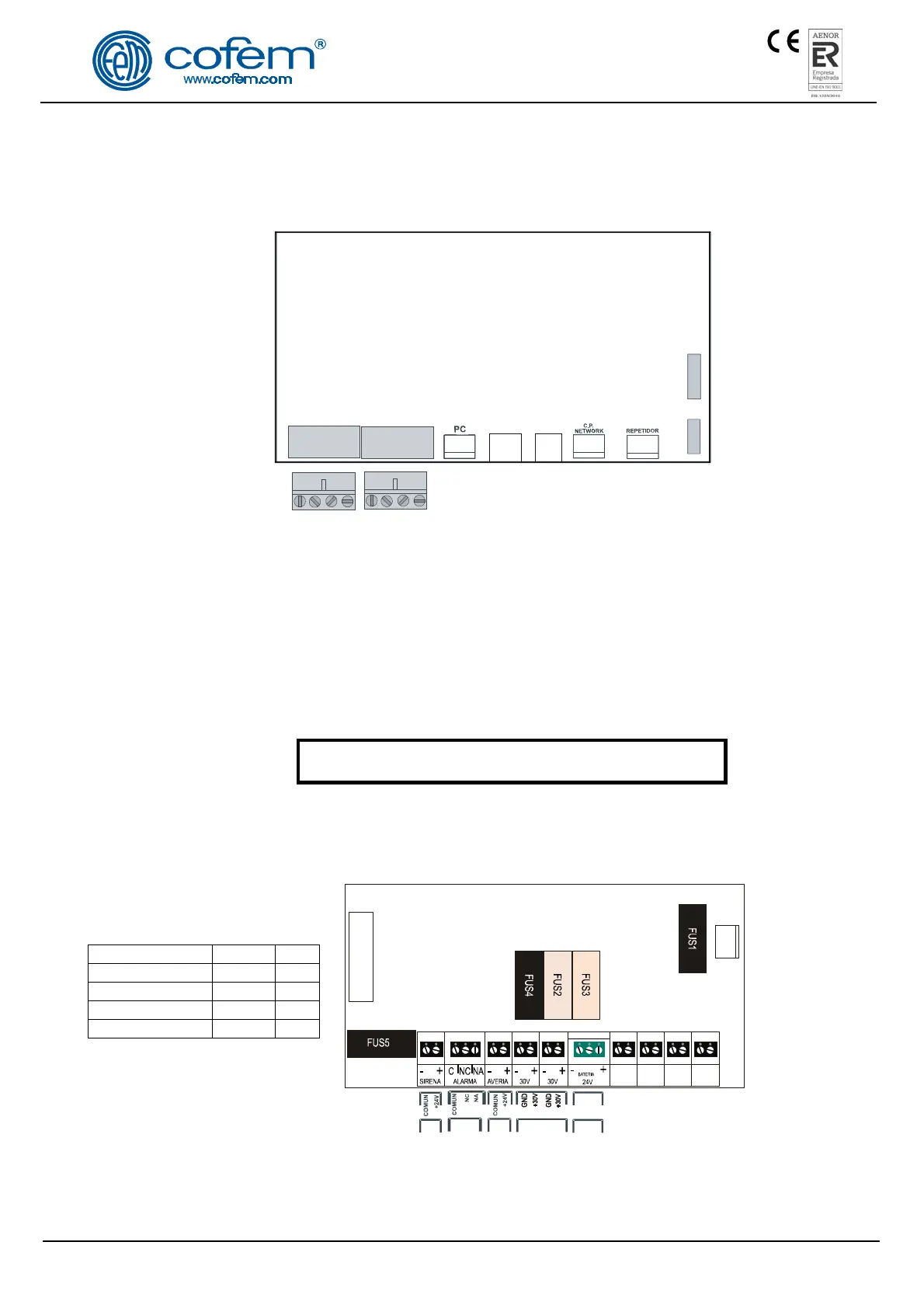

Figure 16. Loop driver
Each loop driver is numbered, to identify the corresponding loop. The numbering and the polarity
come on the strip connector.
Connection of the loops of the Compact Lyon digital system will be made with 2 x 1.5 mm
BRAIDED SCREENED HALOGEN-FREE CABLE for lengths of up to 800 metres and 2 x 2.5 mm
BRAIDED SCREENED HALOGEN-FREE CABLE for lengths of up to 1500 metres.
Connection will be made according to figure 17.
DISCONNECT the 230 Voltage circuit and BATTERIES
before accessing the interior of the control panel.
2.2.3- Power supply auxiliary outputs and charging of power source batteries.
 Power supply board:
Supply fuse FUS1 4 A
Battery fuse FUS3 4 A
30V fuse FUS2 0.8 A
S1 Siren fuse FUS5 2 A
S3 Fault fuse FUS4 0.8 A
Figure 17. Power supply auxiliary outputs
CONEXTENSION
CONCPU
COMPACT LYON CPU
A
B
-
A
B
-
A
B
-
A
B
-
LOOP 1 LOOP 2
_
+
_
+
_
+
_
+
GND
+24V
MONITORED
SIREN
ALARM
OUTPUT
FAULT
AUXILIARY
OUTPUT
30V OUTPUT
BATERY
24V
