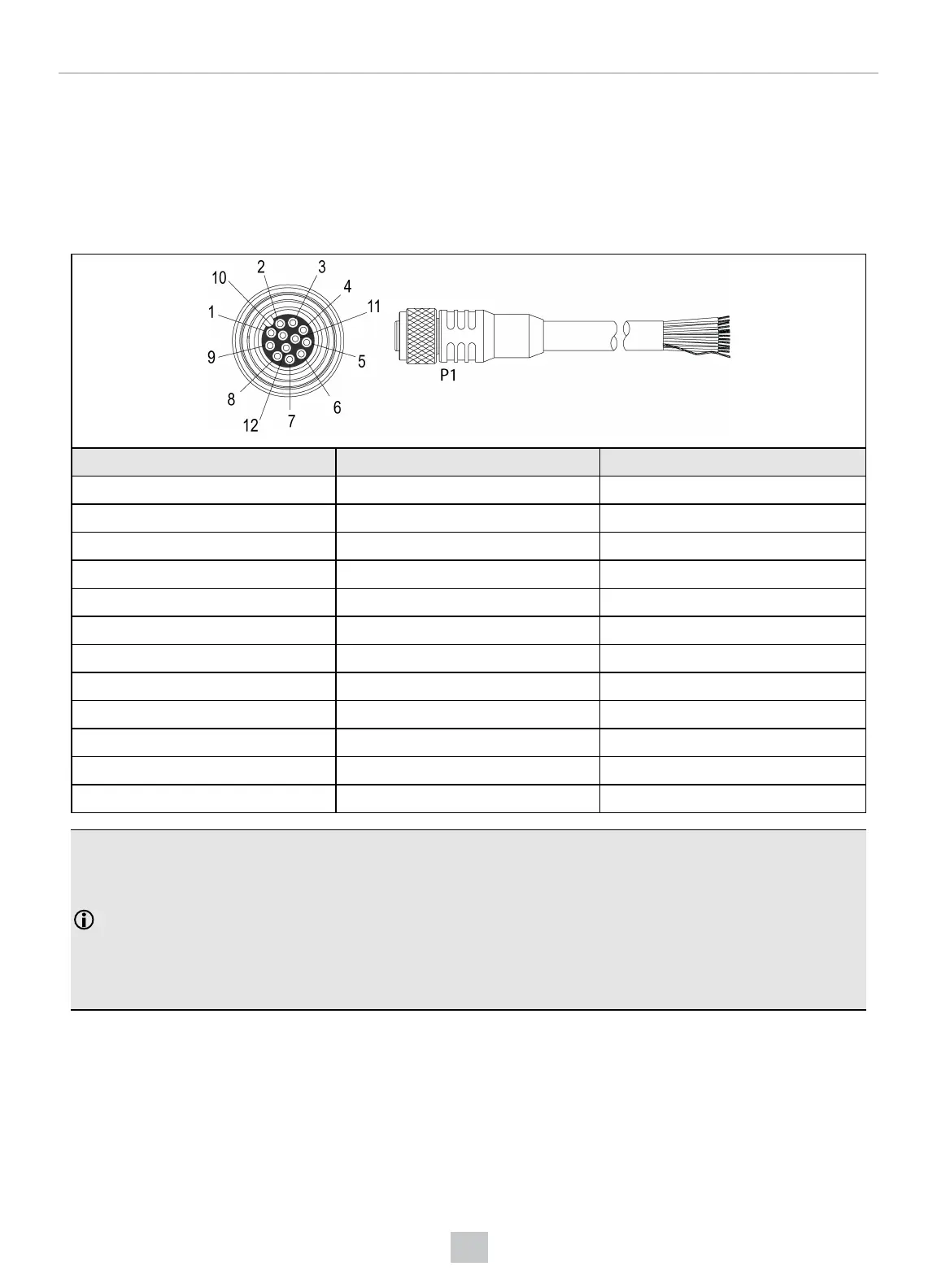

Breakout Cable
The Breakout cable provides connections to an external power supply, the acquisition trigger input, encoder inputs (9902L
only), general-purpose inputs, high-speed outputs, and RS-232 serial communications. The Breakout cable is not
terminated.
The Breakout cable can be connected to devices, such as a trigger sensor or strobe light. The Breakout cable is not
terminated.
Pin# Signal Names Wire Color
1 IN 2 / HSOUT 2 Yellow
2 RS-232 TRANSMIT White/Yellow
3 RS-232 RECEIVE Brown
4 IN 3 / HSOUT 3 White/Brown
5 IN 1 Violet
6 COMMON IN White/Violet
7 +24VDC Red
8 GND Black
9 COMMON OUT Green
10 TRIGGER Orange
11 HSOUT 0 Blue
12 HSOUT 1 Grey
Note:
l
Cables are sold separately.
l
Perform wiring or adjustments to I/O devices when the reader is not receiving power.
l
You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of non-
conductive material. Keep bare wires separated from the +24 V DC wire.
l
When using the 15 meter Breakout cable, full 24VDC voltage must be maintained at the input leads of the
Breakout cable when the vision system is operating.
40
