CCB-PWRIO-05

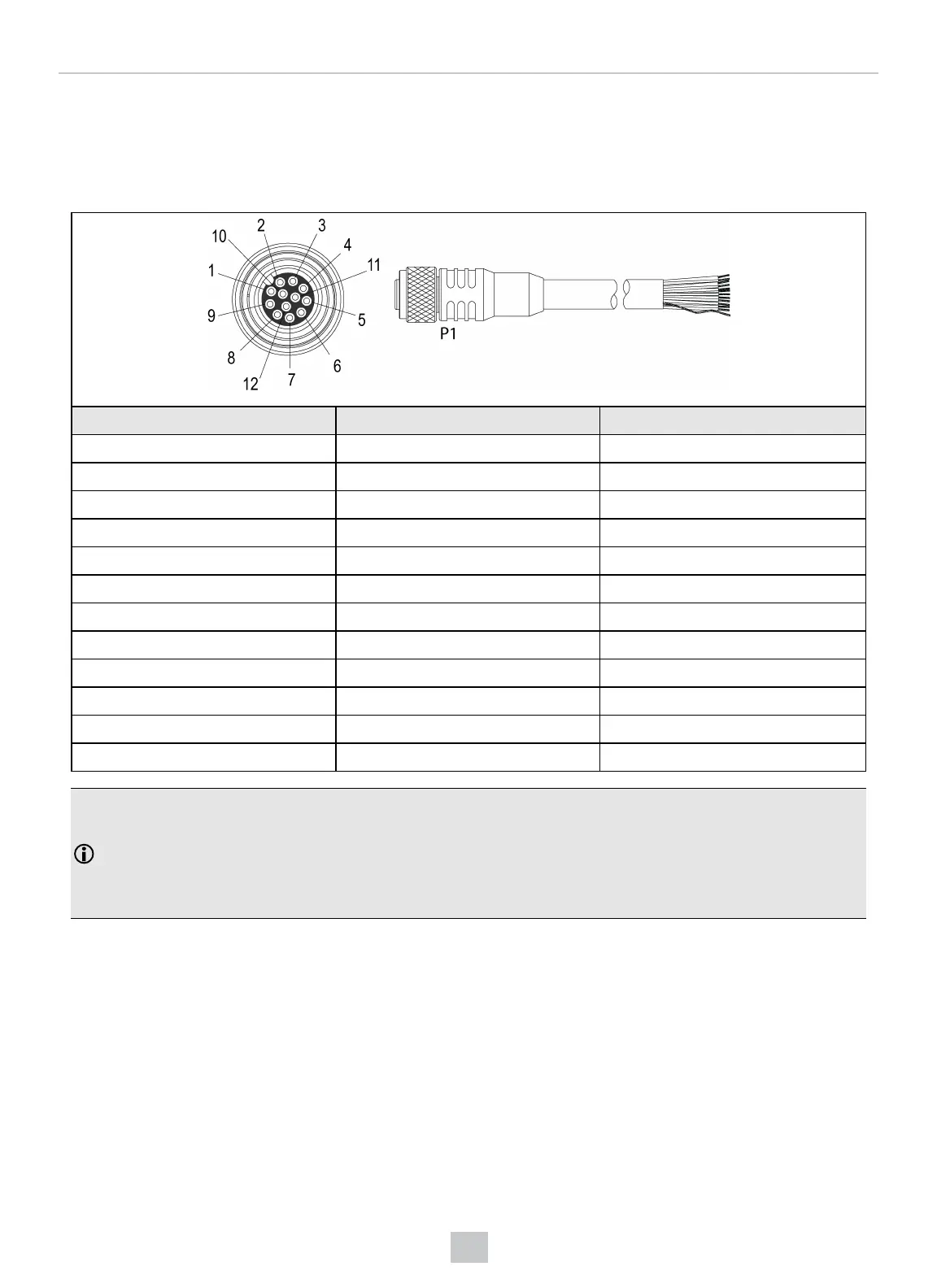

The Power and I/O Breakout cable provides access to trigger and high-speed outputs. For RS-232, use the Power Supply
return path for ground.
The figure on the left shows the plug on the device.
Pin# Signal Names Wire Color
1 Out 2/In 2 Yellow
2 TxD White/Yellow
3 RxD Brown
4 Out 3/In 3 White/Brown
5 In 1 Violet
6 Common In White/Violet
7 +24 VDC Red
8 GND Black
9 Common Out Green
10 In 0 Orange
11 Out 0 Blue
12 Out 1 Grey
Note:
l
Cables are sold separately.
l
Perform wiring or adjustments to I/O devices when the reader is not receiving power.
l
You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of non-
conductive material. Keep bare wires separated from the +24 V DC wire.
