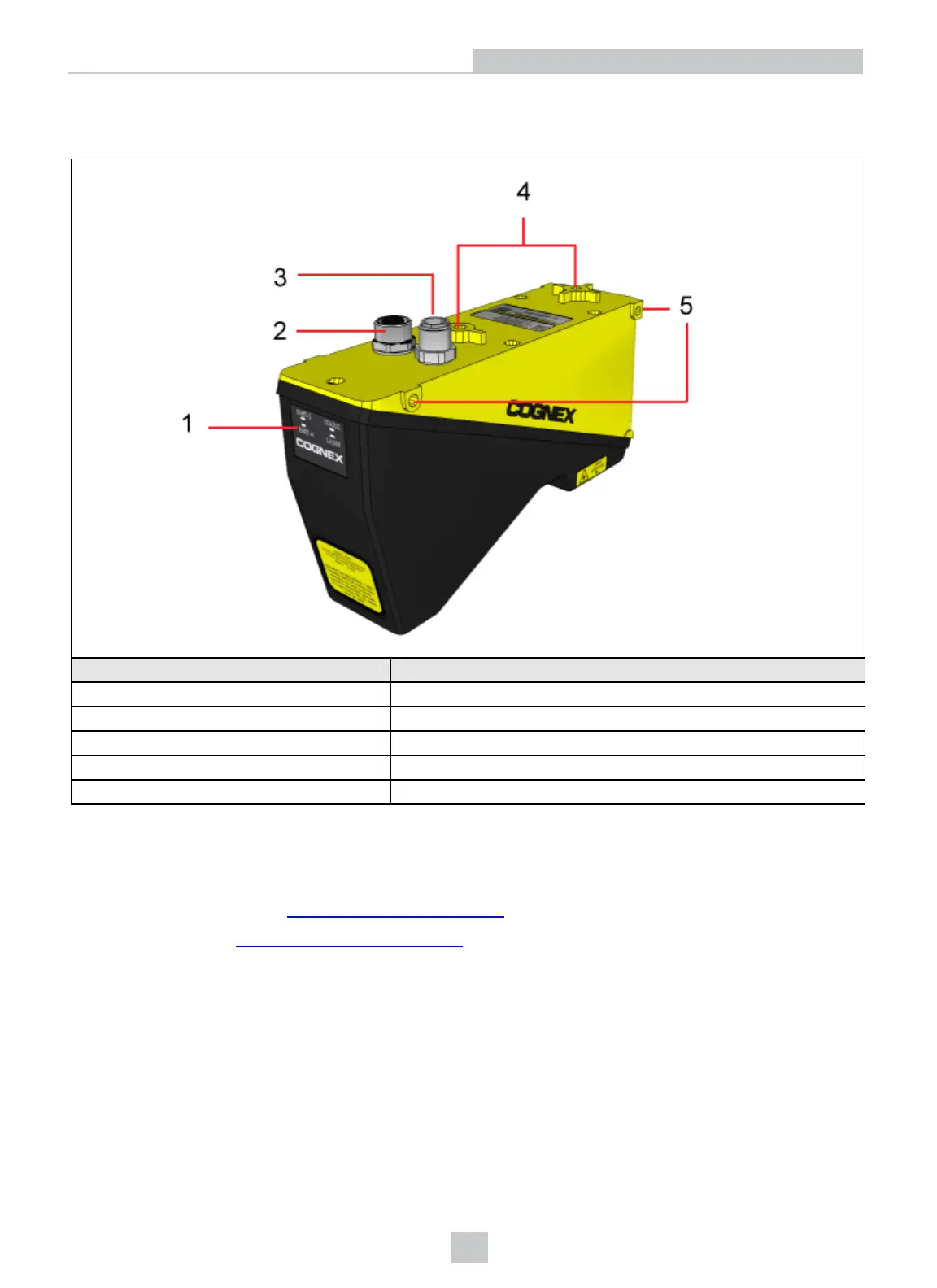

System Layout
Component Description
1 Status LEDs
2 Ethernet connector
3 24V DC power + I/O + Encoder connector
4 M6 mounting boss
5
M4 through-body mounting holes
Safe Handling
l Retain the original packaging supplied by Cognex and re-use it whenever you ship your sensor.
l Follow the instructions in Sensor Maintenance on page20 for details on cleaning the sensor.
l Refer to the topic Safety and Regulatory on page49 for electrical safety information.
l Always observe the environmental limits. Subjecting the unit to shock, vibration or rough handling in excess of
the specified limits can cause the sensor to fail.
