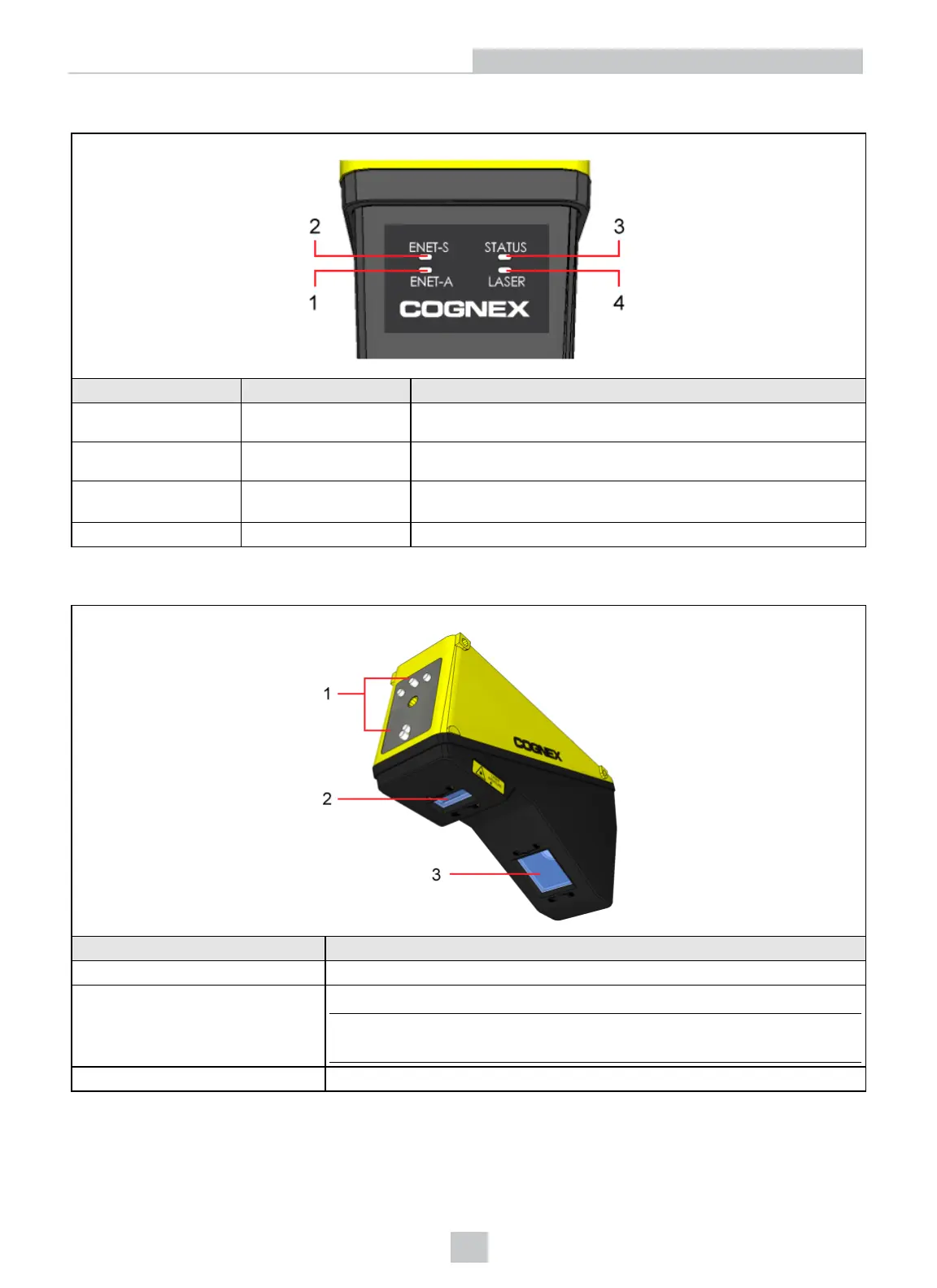

System LEDs
Connector Indicator Description
1 Ethernet Link
Blinks when there is Ethernet activity on the link, or is off to indicate
there is no link with the host.
2 Ethernet Link Status
Blinks in groups of three when a 1000 Mbps connection is
established with the host.
3 Sensor Status Blinks approximately every 5 seconds when the sensor is running
normally.
4 Laser Enabled Lights while the laser is triggered.
Bottom View
Component Description
1 High-accuracy planar mounting pins
2
Laser window
CAUTION: AVOID EXPOSURE - LASER RADIATION IS EMITTED FROM
THIS APERTURE
3 Camera window
