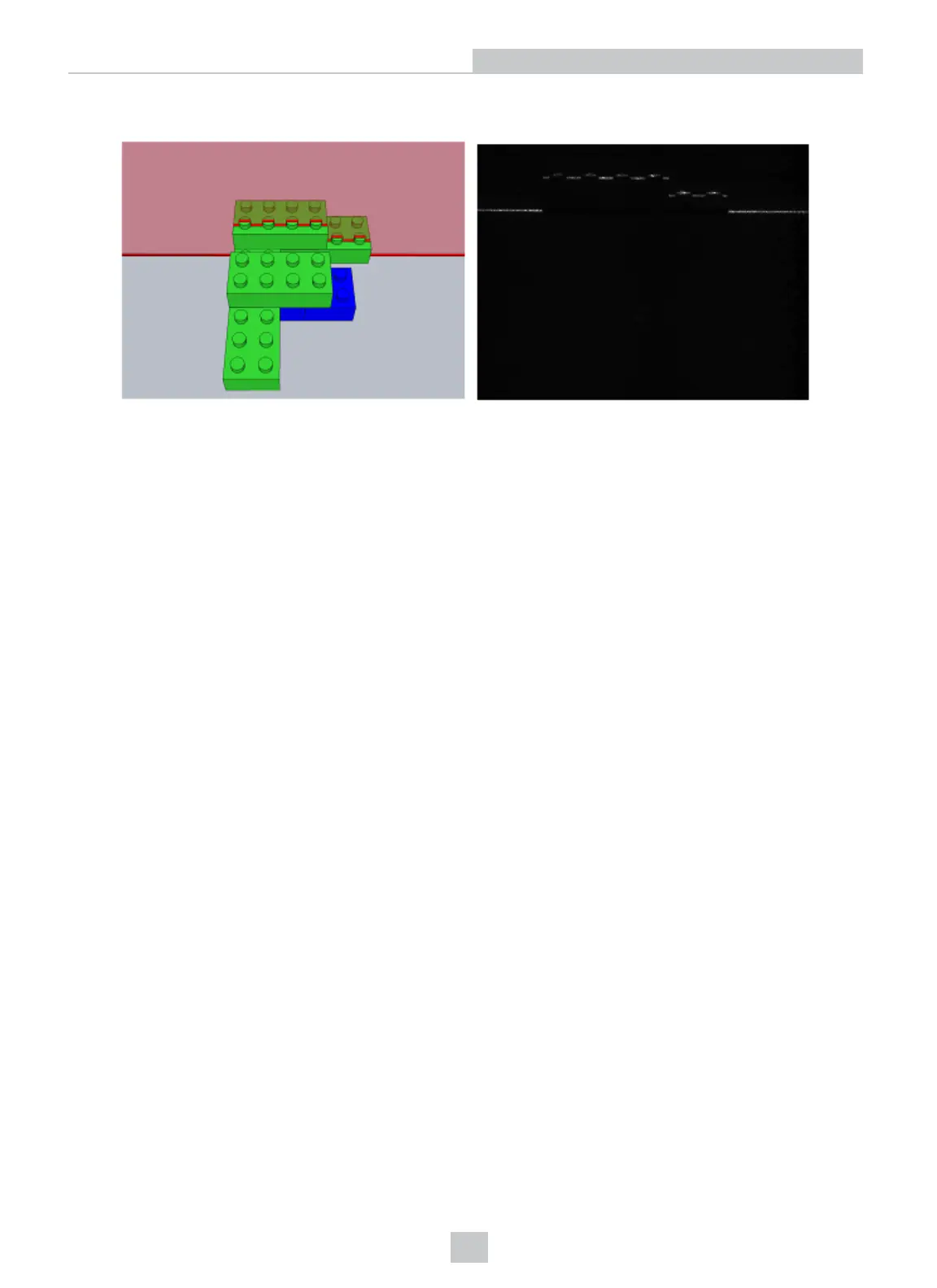

The following figure illustrates the laser stripe as seen from the position of the camera and the intensity image the
camera captures:
The sensor locates the brightest pixels in the intensity image in order to extract peak information. Your Cognex software
combines successive intensity images to generate a synthetic image containing height profile information.
38
Range Images
