17 Assembly instructions
17.1 Assembly instructions CRDV 200-315

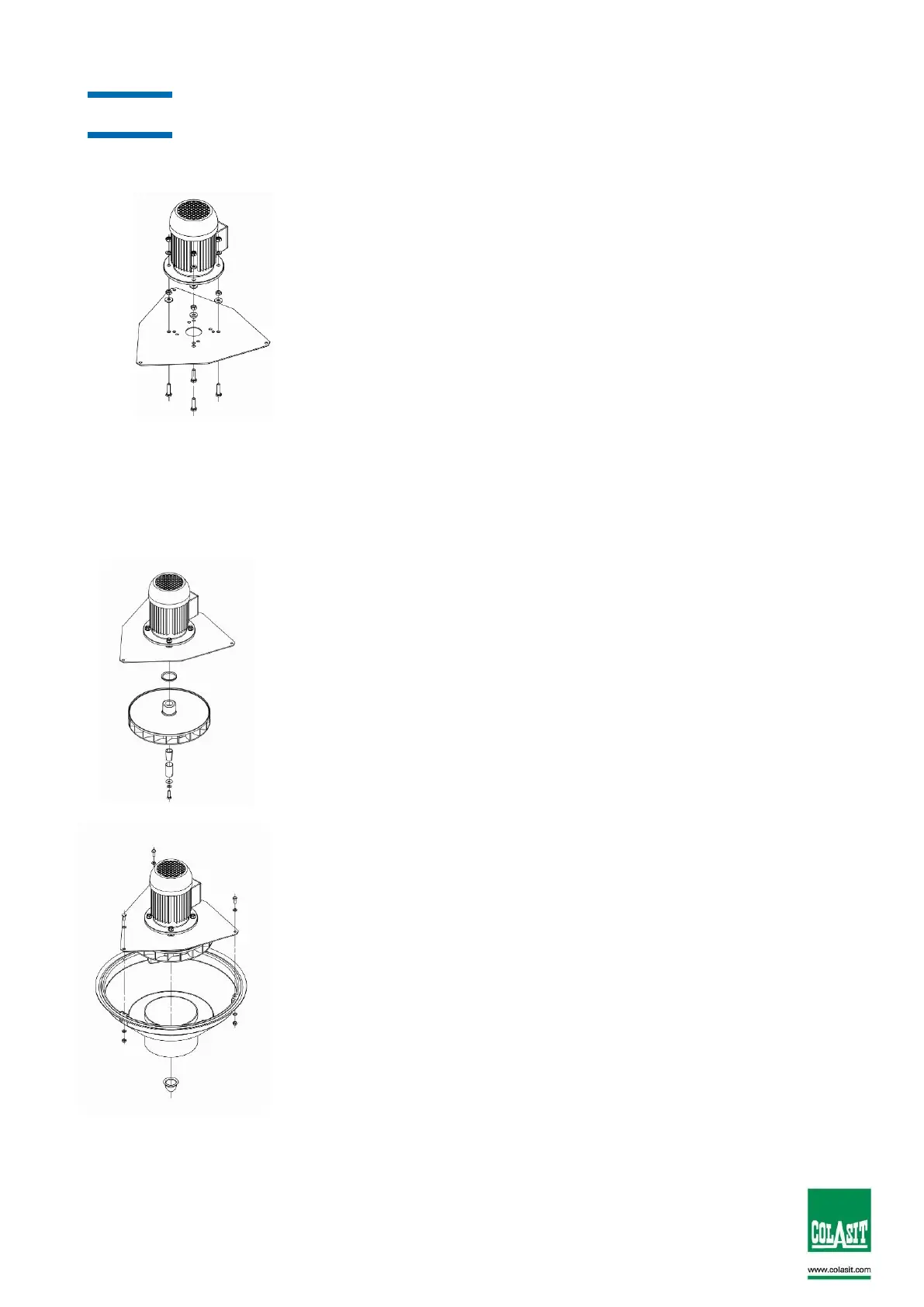

1. Attach motor to the motor plate
2. Mount impeller and V-ring seal
3. Screw motor-plate, lower part of housing and intake
together, adjust impeller (5mm minimum clearance to
casing), tighten impeller and put on hub cap
