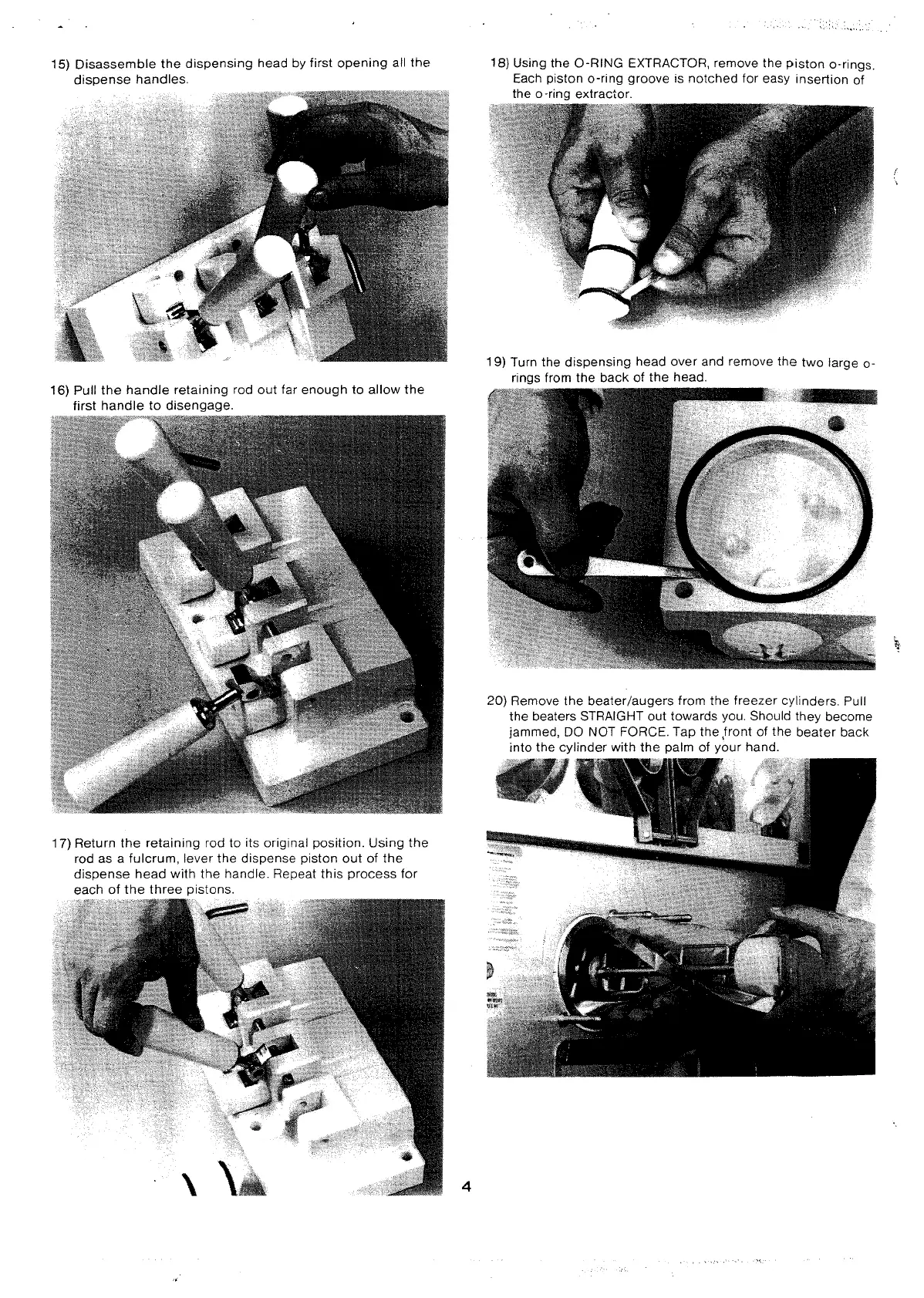

15) Disassemble the dispensing head by first opening all the
dispense handles.
18)
Using the O-RING EXTRACTOR, remove the piston o-rings
Each piston O-ring groove is notched for easy insertion of
the o-rina extractor.
19)
Turn the dispensing head over and remove the two large 0-
rinas from the back of the head.
16) Pull the handle retaining rod out far enough to allow the
first handle to disengage.
20)
Remove the beater/augers from the freezer cylinders. Pull
the beaters STRAIGHT out towards you. Should they become
jammed, DO NOT
FORCE.
Tap the,front of the beater back
into the cylinder with the palm of your hand.
17) Return the retaining rod to its orig~nal position. Using the
rod as a fulcrum, lever the dispense piston out of the
dispense head with the handle. Repeat this process for
each of the three pistons.
