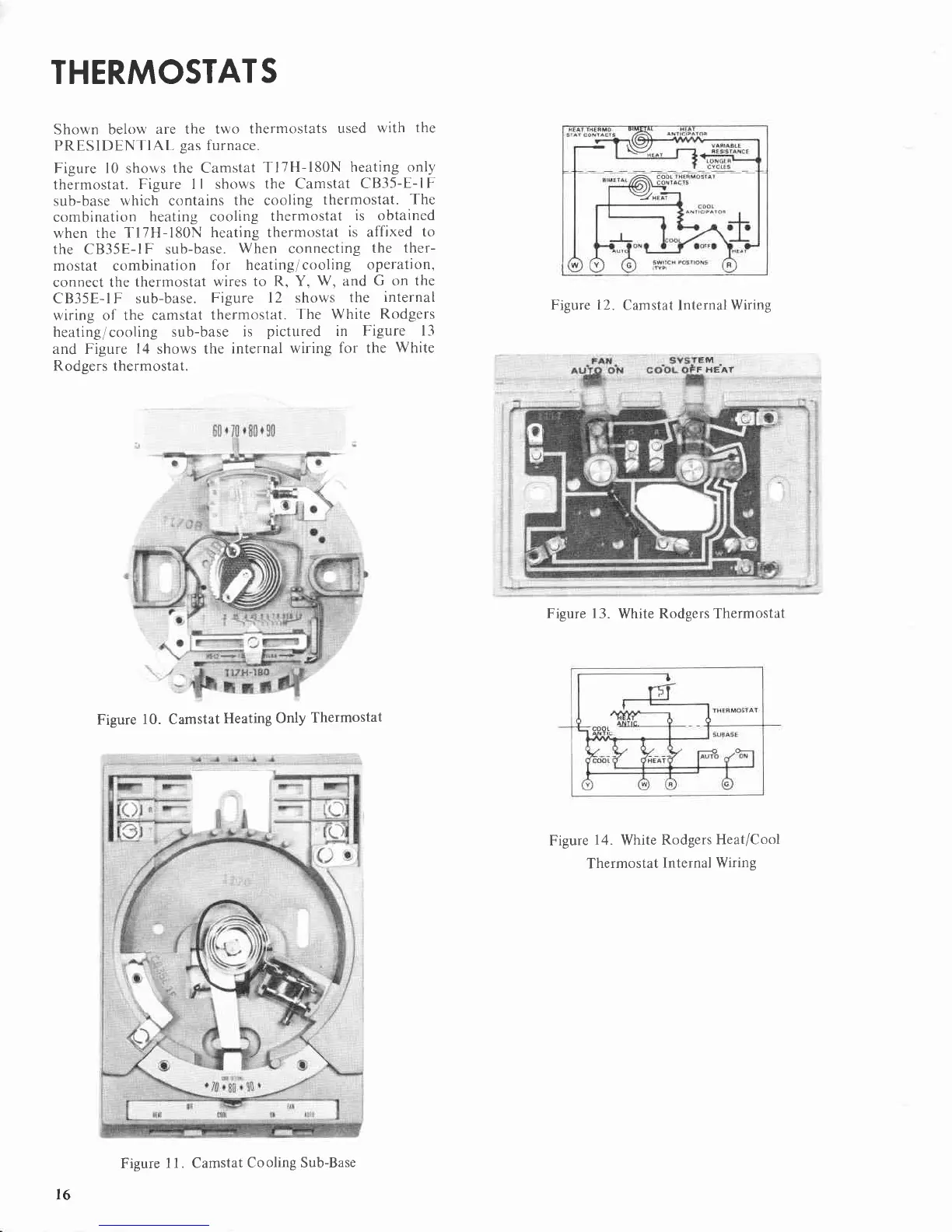

THERMOSTATS
Shown below
are the two
thermostats
used
with
the
PRESIDENTIAL
gas
furnace.
Figure l0 shows
the Camstat
TlTH-180N
heating only
thermostat.
Figure ll shows
the Camstat
CB35-E-lF
sub-base
which contains
the cooling
thermostat.
The
combination
heating cooling
thermostat
is
obtained
when the
TITH-180N
heating thermostat
is
affixed
to
the CB35E-l
F
sub-base.
When connecting
the
ther-
mostat combination
for heatinglcooling
operation.
connect the
thermostat
wires to
R, Y,
W,
and
G tln the
C835E-l F sub-base.
Figure 12 shows
the
internal
wiring of the camstat
thermostat.
The White
Rodgers
heating/cooling sub-base
is
pictured
in
Figure l3
and Figure
14
shows the
internal
wiring
for
the
White
Rodgers
thermostat.
Figure
10. Camstat
Heating
Only
Thermostat
Figure 12.
Camstat lnternal Wiring
Figure 13.
White Rodgers Thermostat
Figure
14.
White
Rodgers
Heat/Cool
Thermostat
Internal Wiring
E0t
r r<dat
l6
Figure
11. Camstat
Cooling Sub-Base
