Coleman CT200U-A - Front Fork Installation

1. Install front Fork Assembly by
inserting the 10mm steering bolt
through the assembly in the
following order:
Top bracket, Small 10mm
Washer, Steering Neck, Large
10mm Washer, Bottom Bracket,
Large 10mm Washer, Lock Nut

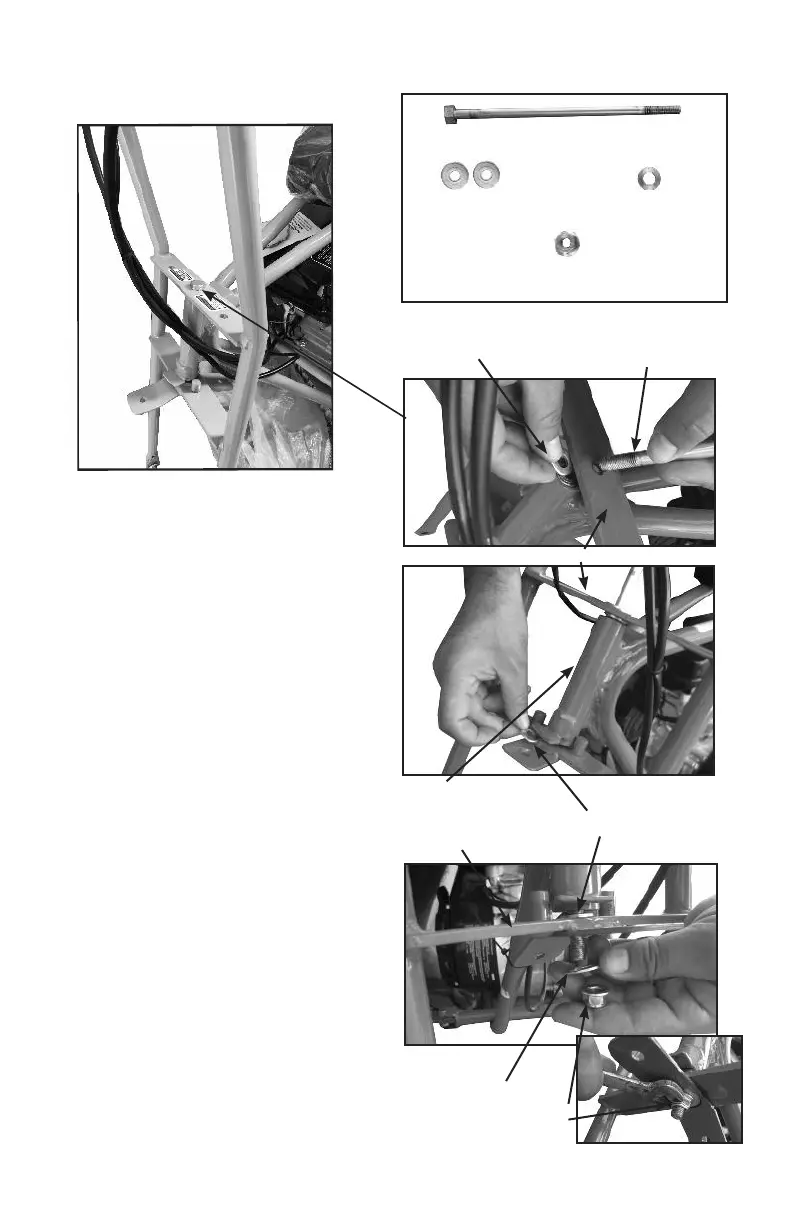

FRONT FORK INSTALLATION
2
Large Washer
Small Washer
Steering Bolt
Large Washer
Lock Nut
10mm Steering Bolt
10mm Large Washers
10mm Small Washer
10mm Lock Nut
Top Bracket
Steering Neck
Bottom Bracket
1. Tighten Lock nut snug,
Note: Do not over
tighten Lock nut. Over
tightening will cause
the steering to bind .
