Coleman F5BMS-C - Main Components and General Information; Main Components

11
13
12
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
21
1. Main components and General information

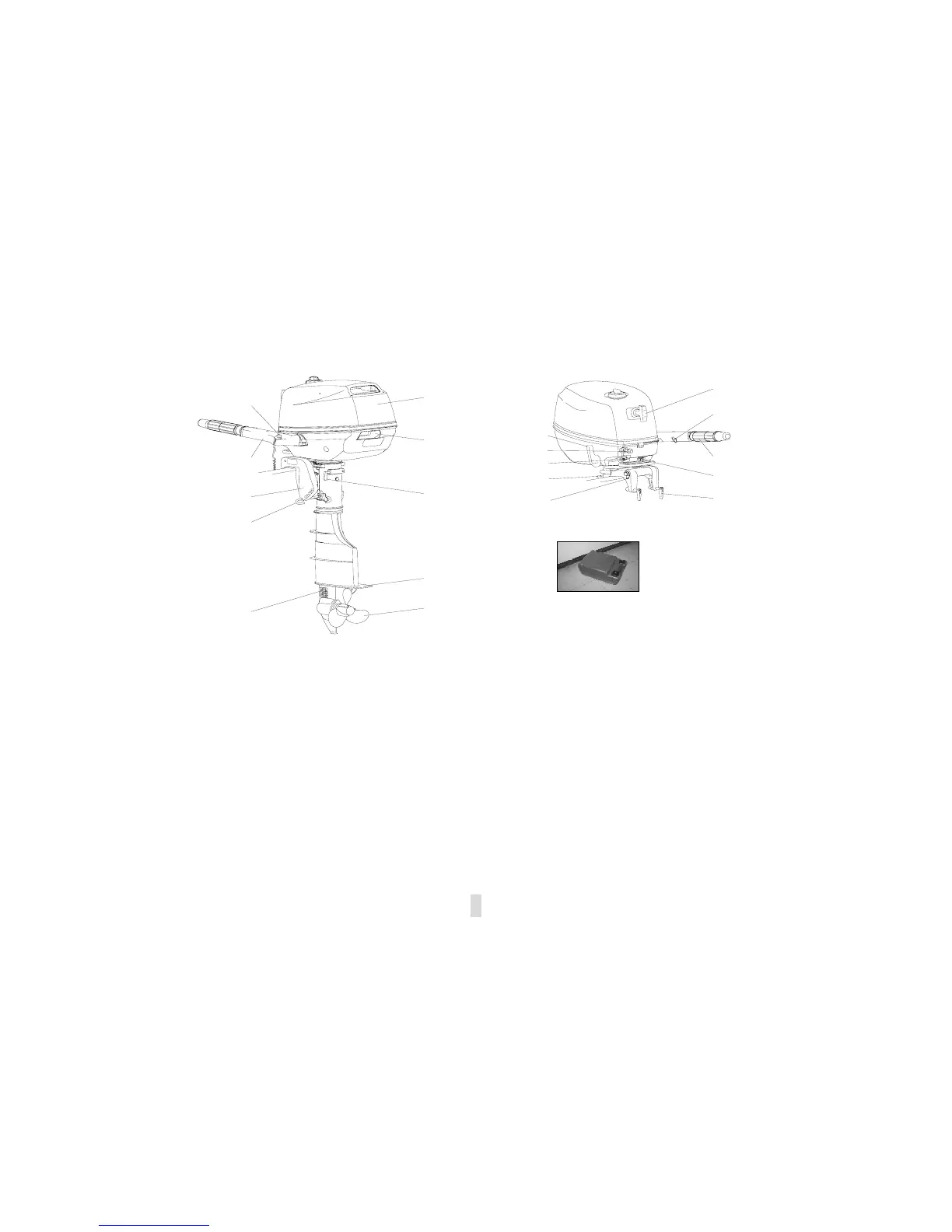

1.1 Main components
1. Top cowling 8. Clamp bracket
14. Carrying handle 21. Fuel tank*
2. Top cowling lock handle 9. Tiller handle
15. Clamp screw
3. Steering friction screw 10. Engine stop button/
16. Rope attachment
4. Anti-cavitation plate
Engine stop lanyard switch
17. Tilt support bar
5. Propeller 11. Starter handle
18. Fuel joint
6. Cooling water inlet
12. Throttle friction adjuste
r
19. Choke knob
7. Trim rod
13. Throttle grip 20. Gear shift lever
1
Note:
* The fuel tank is
equipped for
the proper
model.
