Collamat 2600 - Operating and Setting Elements; Optical Label Scanner Setup

OpInstructions_En.fm  7

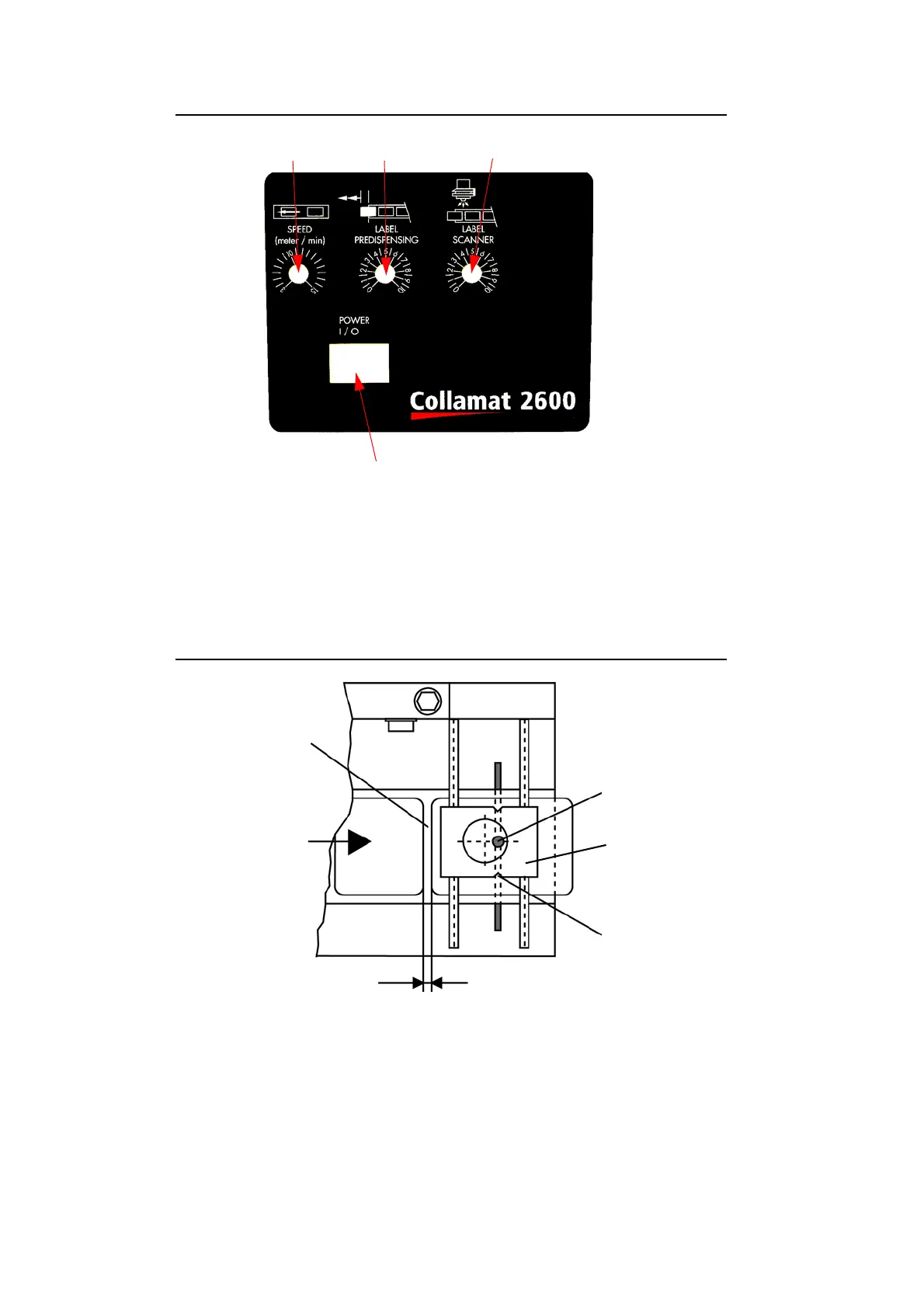

6 Operating elements / Setting elements
1. Dispensing speed
2. Predispensing
3. Optical label scanner
4. Main switch ON/OFF
6.1 Optical label scanner (Label scanner)
The optical label scanner is built into the dispensing edge. The scanner head
(1) can be displaced laterally thanks to a wide optical light guide (2) inside the
dispensing edge. A lengthwise displacement is not requested as this is done
electronically.
1. Receiver of the label scanner
2. Transmitterof the label scanner (inside dispensing edge)
3. Marking on receiver head
4
2
3
1
Gitter
LED
1
2
3
