Collamat 2600 - Adjusting the Flap Adapter; Setting the Pressure Roller

OpInstructions_En.fm  6
5.4 Adjust set flap adapter

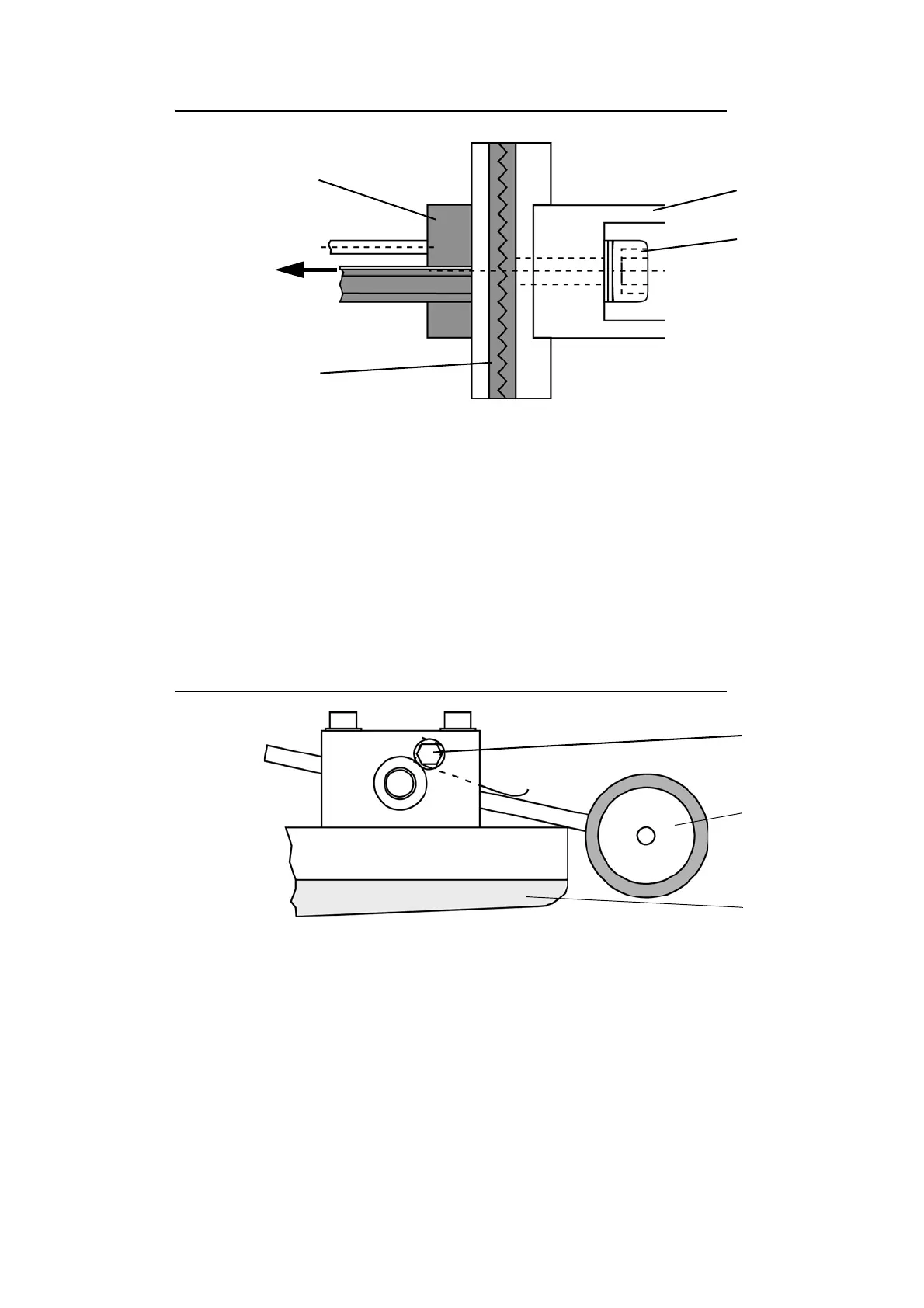

The tilt of the flap adapter(1) in reference to the module-bar (2) can be adju-
sted:
Loosen screw (3) (see illustration), using special hexagon spanner for two
rotations.
Pull out the adapter in direction of arrow (4) and tilt it into the desired position
on ring (5).
Thighten nut (3).
5.5 Set pressure roller of the adapter
The pressure roller (1) of the adapter (2) can be adjusted according to label
and goods:
Pressing force adjustment with hexagon screw (3).
