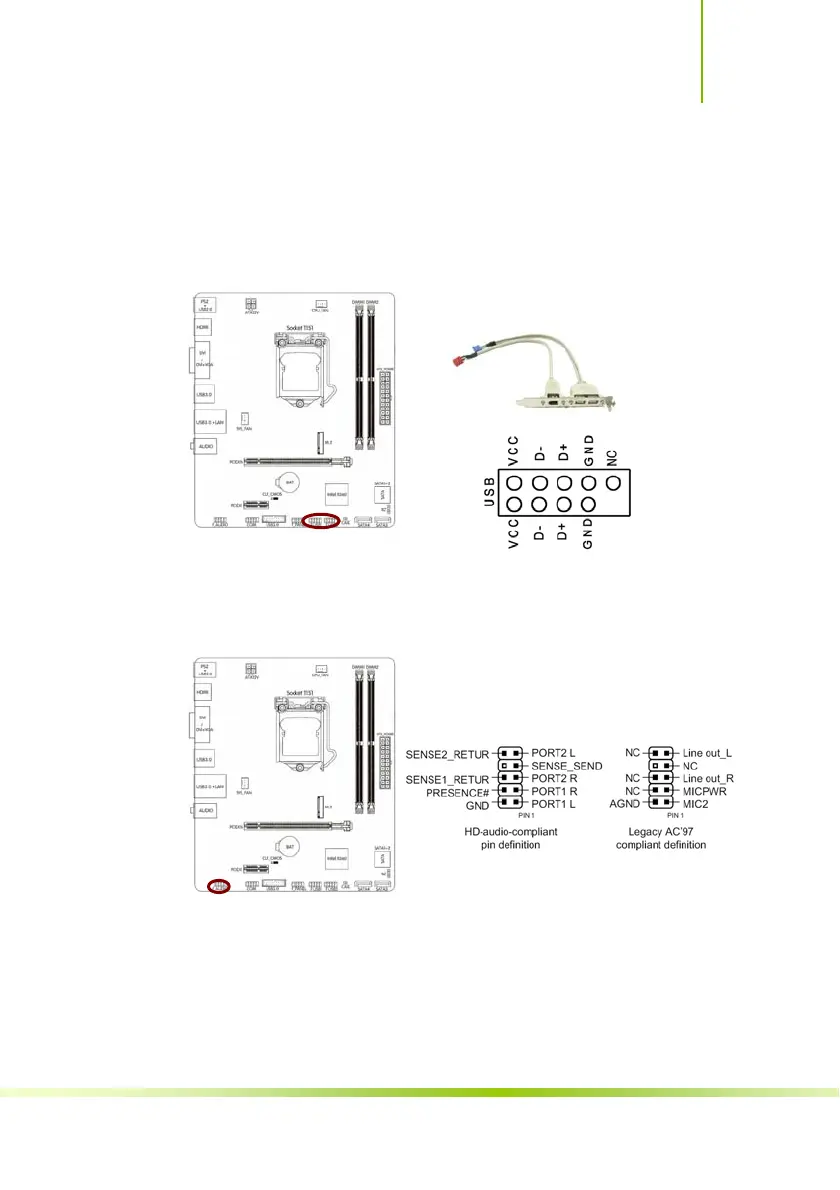

USB 2.0 connectors
These connectors are for USB 2.0 ports. Connect the USB module cable to
any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with the USB 2.0
specification that supports up to 480Mbps connection speed.
Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Definition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
10
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ
