INSTALLATION GUIDE FOR UHF DAS
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 14
Identifier
Descriptions
Power
1
Power cable connector for a pre-installed power cord for connection to DC
(e.g. DC -48V, Max, current is 8A).
ALM1/ALM2
Connector for Dry contact or External alarm
AUX
Used for Equipment extension wiring routing
LAN
RJ45 Connector for remote connection
OMT
RJ45 Connector for local WEB GUI connection.
PWR/RUN/FUNC/OP
LED indictor
PWR: ON: Power supply is normal; OFF: Power supply is abnormal.
RUN: Regular Flashing: MU is working fine; OFF or Always ON: MU is not working
properly
FUNC: Reserved
OP: ON: Expansion connected; OFF: no Expansion connected
DT/DL IN
N-Female connector for connection to the donor antenna.
MT/DL OUT
N-Female connector for connection to the service antenna.
UL IN
Input port for Uplink Signal
UL OUT
Output port for Uplink Signal
IN1
SMA-Female connector to UL port of Expansion Unit
OUT1
SMA-Female connector to DL port of Expansion Unit
IN2-4/OUT2-4
SMA-Female, Reserved
Ground terminal

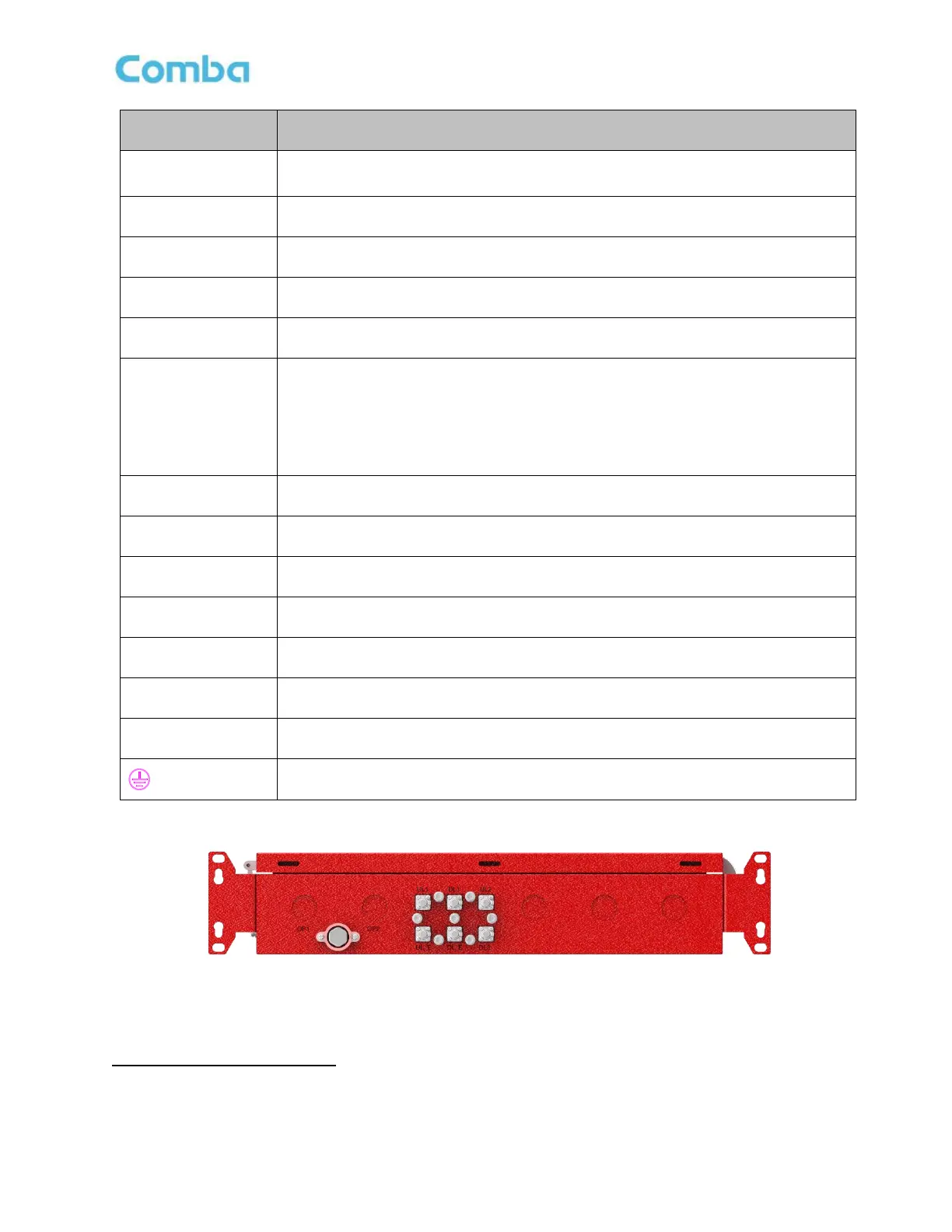

Figure 6: EU Equipment Connectors
Table 2: EU Equipment Connectors
1
The voltage identification is a variant due to electricity system diversity of global regions. The power cable connector
might be identified for AC 110V, AC 220V, AC 110V/220V, or DC -48V respectively. Please refer to specific product or
contact local sales if any doubt.
