INSTALLATION GUIDE FOR UHF DAS
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 26

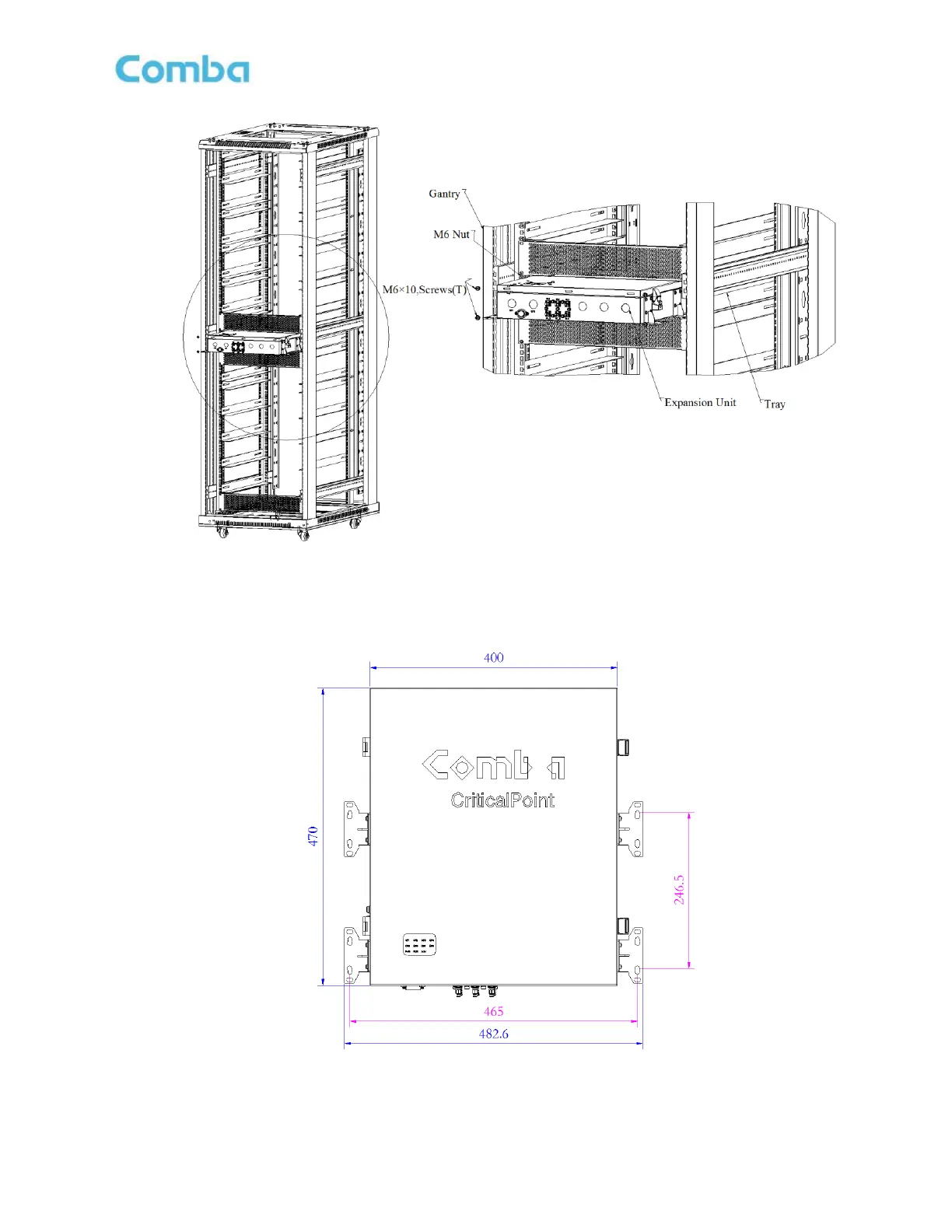

Figure 14: Expansion Unit Cabinet Mounting
3.3.7 WALL MOUNTING FOR EU
Installation dimensions of Expansion Unit for wall mounting is shown as below:
Figure 15: Expansion Unit Wall Mounting
The wall-mounted installation steps are as follows:
